Example 8: FFT Cursor measurement
FFT measurements include: Amplitude measurement (Vrms or dBVrms) and
Frequency measurement (Hz).
Do these steps as follow:
1. Press Cursor→Manual.
2. Press Type to select X or Y.
3. Press Source to select FFT.
4. Turn ( ) knob to move the cursor to an interesting point.

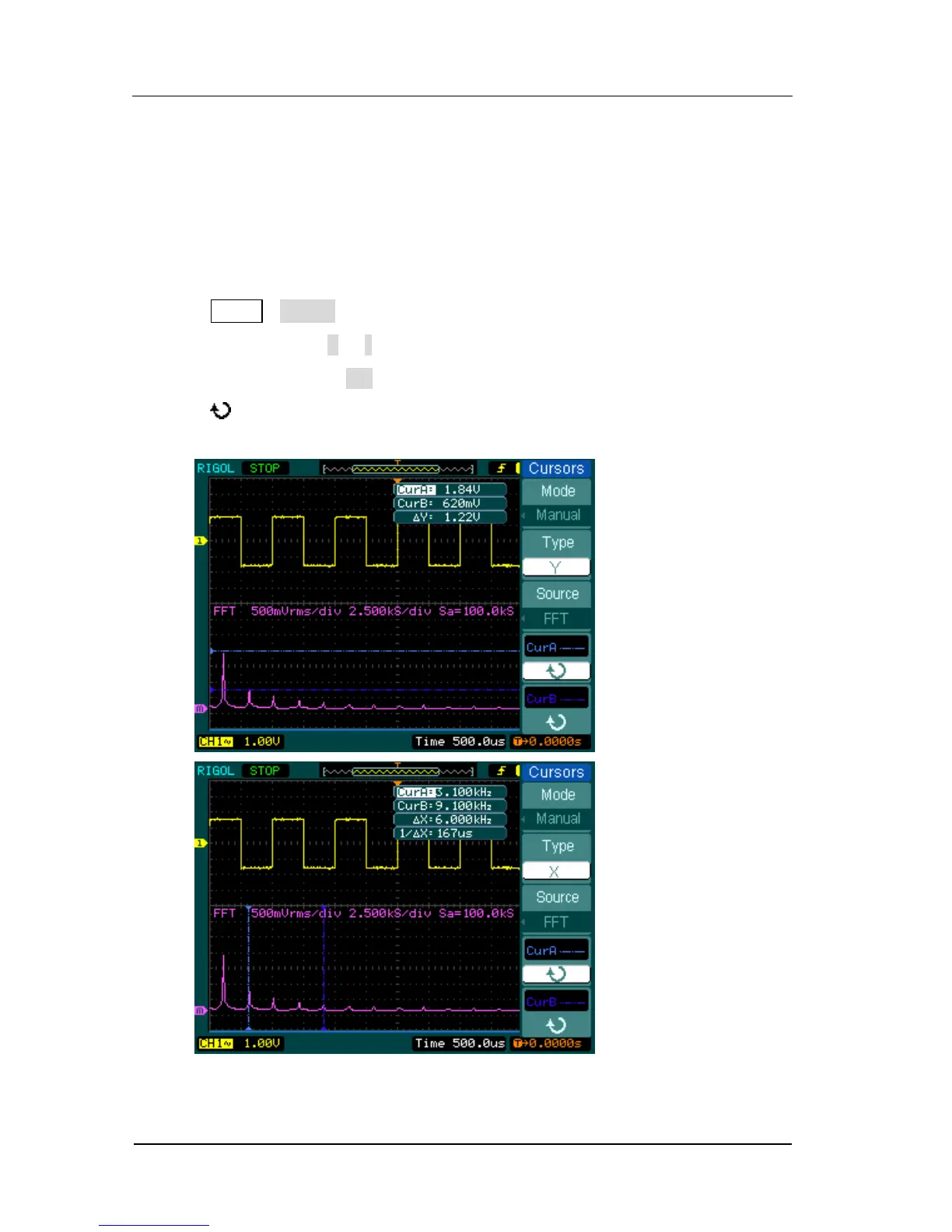

Figure 3-9 FFT Cursor Measurement
