User‟s Guide for DS1000 Series
2-4
1. Channel coupling
To use Channel 1 as an example, input a sine wave signal with DC shift.
Press CH1→Coupling→AC to set “AC” coupling. It will pass AC component blocks the
DC component of the input signal.

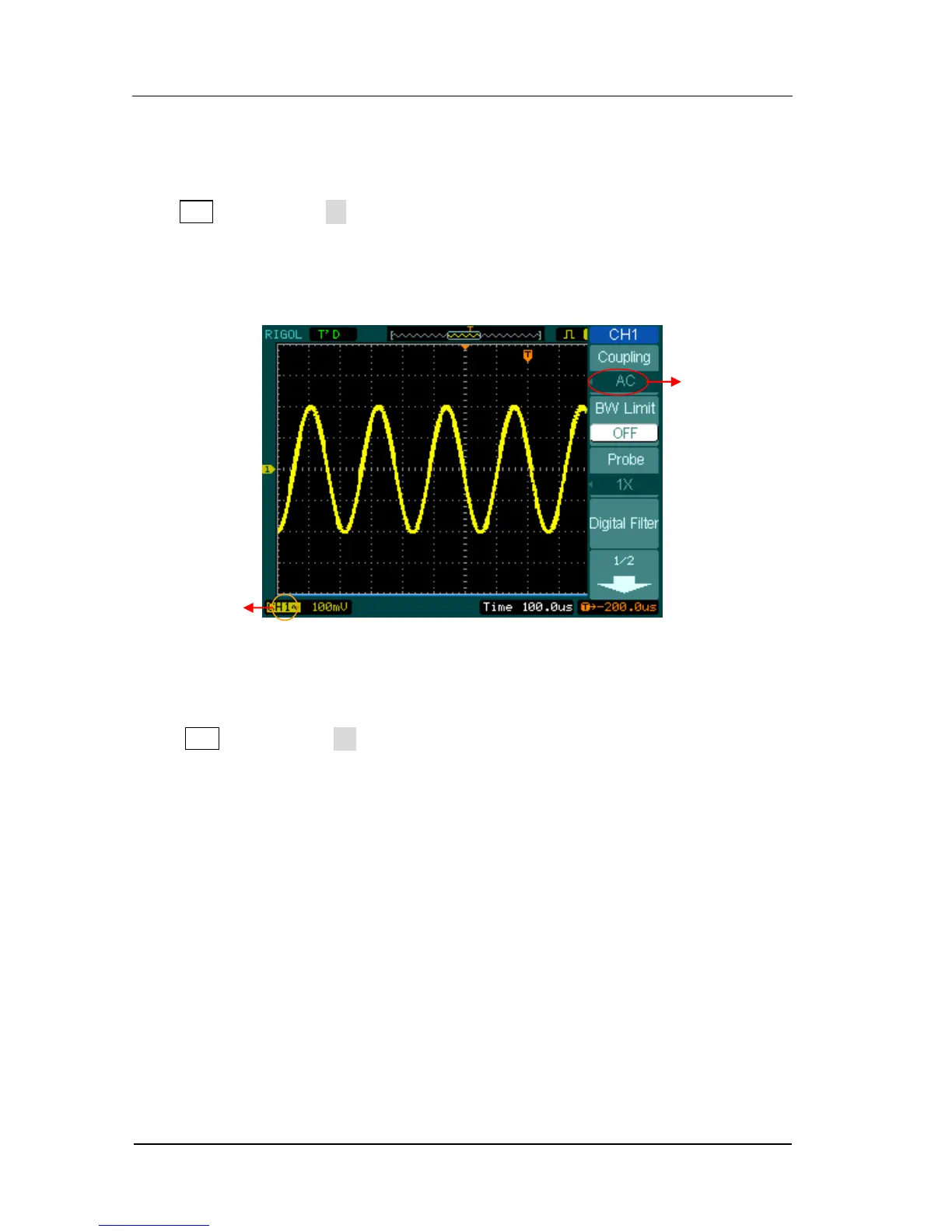

The waveform is displayed as Figure 2-3:
Figure 2-3
Waveform display
Press CH1→Coupling→DC, to set “DC” coupling. It will pass both AC and DC
components of the input signal.
The waveform is displayed as Figure 2-4:
AC coupling
setup
AC coupling
status symbol
