User‟s Guide for DS1000 Series
2. Set up the channel bandwidth limit
To use Channel 1 as an example, input a signal containing high frequency component.
Press CH1 → BW Limit→ OFF, to set up bandwidth limit to “OFF” status. The
oscilloscope is set to full bandwidth and passing the high frequency component in the
signal.

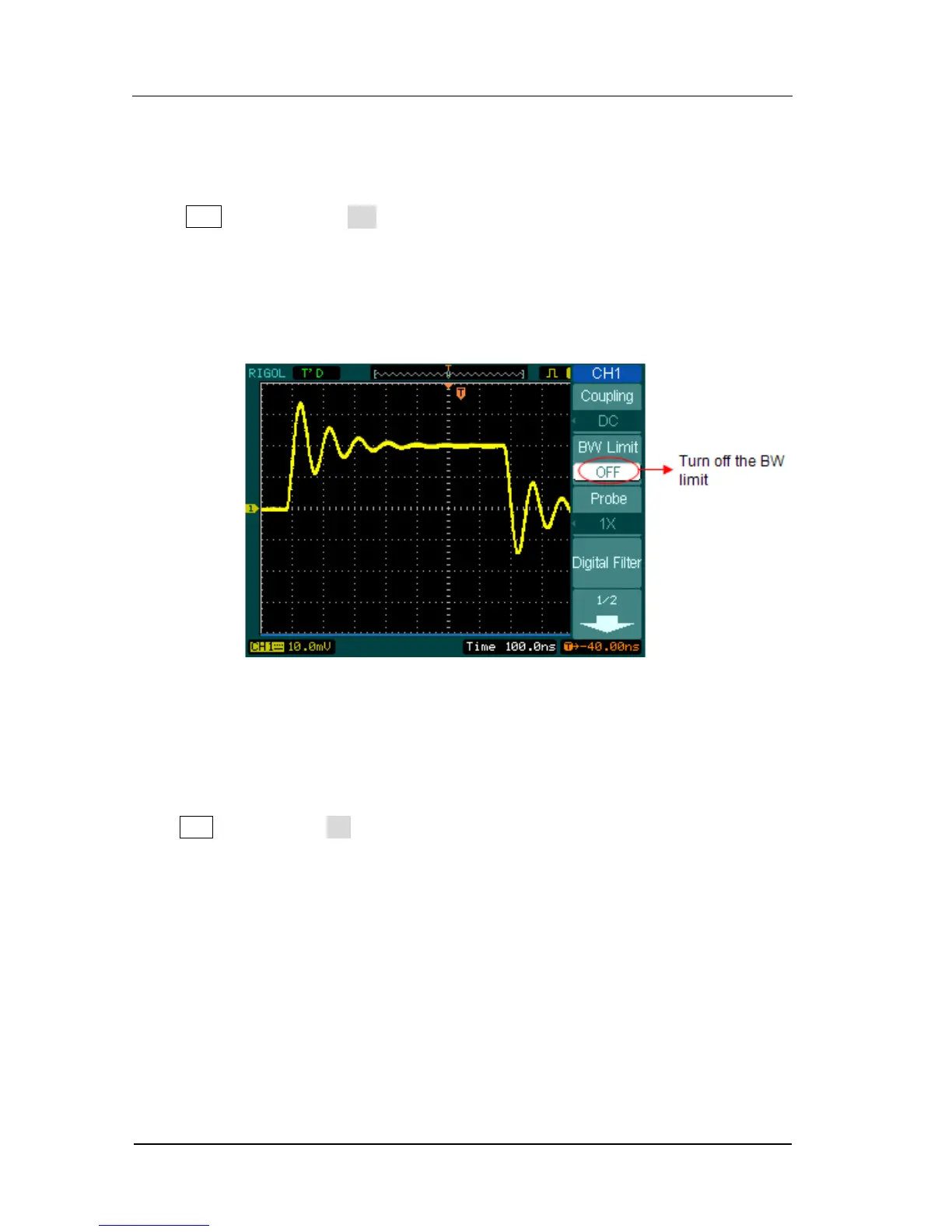

The waveform is displayed as Figure 2-6:
Figure 2-6
Turn off the BW limit
Press CH1→BW Limit→ON, to set up bandwidth limit to “ON” status. It will reject the
frequency component higher than 20MHz.
The waveform is displayed as Figure 2-7:
