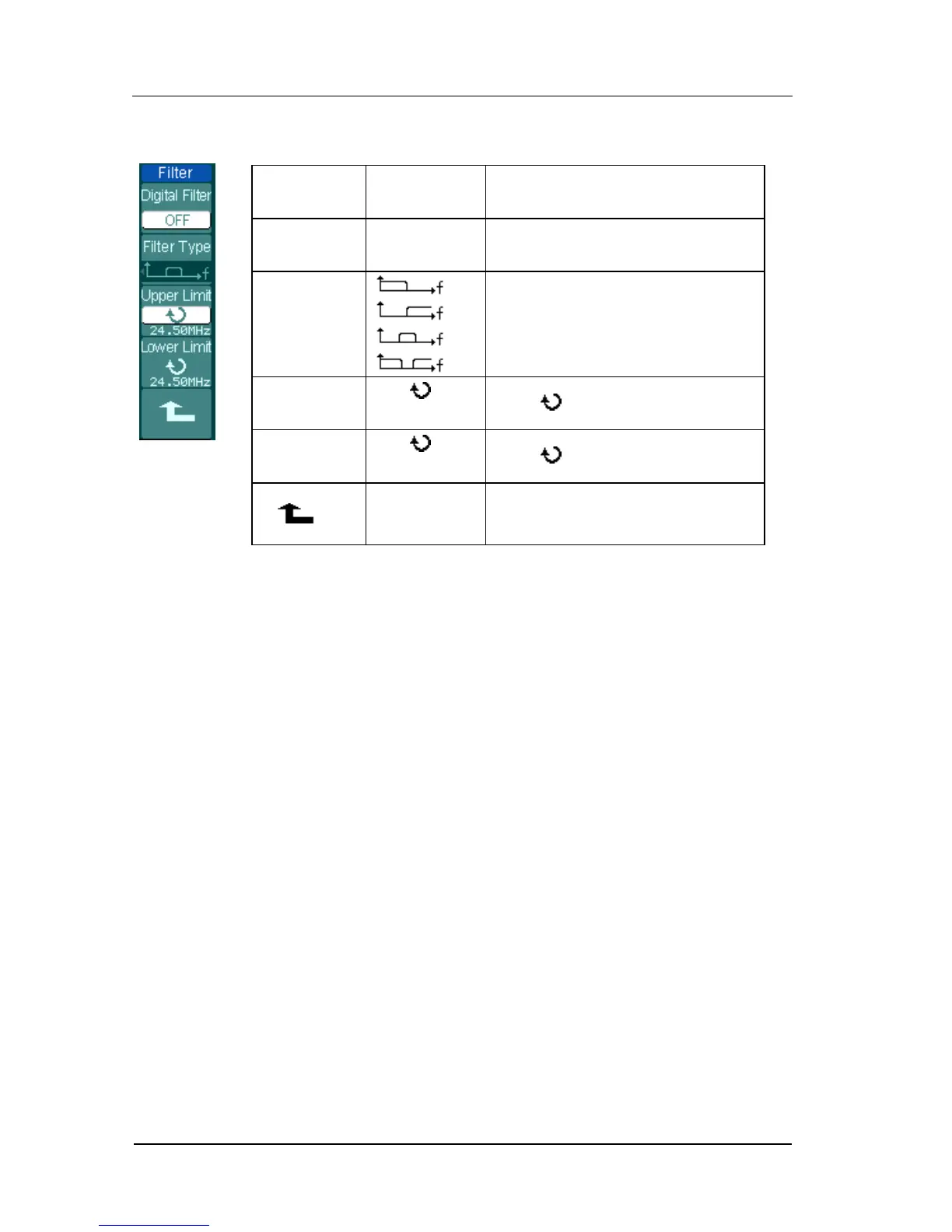

Figure 2-14 Table 2-4 The Filter menu
Menu
Settings
Comments
Digital Filter
On
Off
Turn on the digital filter
Turn off the digital filter
Filter Type
Setup as LPF (Low Pass Filter)
Setup as HPF(High Pass Filter)
Setup as BPF (Band Pass Filter)
Setup as BRF(Band Reject Filter)
Upper limit
<frequency>
Turn ( ) knob to set high limit
Lower limit
<frequency>
Turn ( ) knob to set low limit
Back to higher level menu (The
followings are the same, no more
explanation)
