Rigol DS1000 Series User Manual

RIGOL
© 2006 RIGOL Technologies, Inc.
User‟s Guide for DS1000 Series
2-31

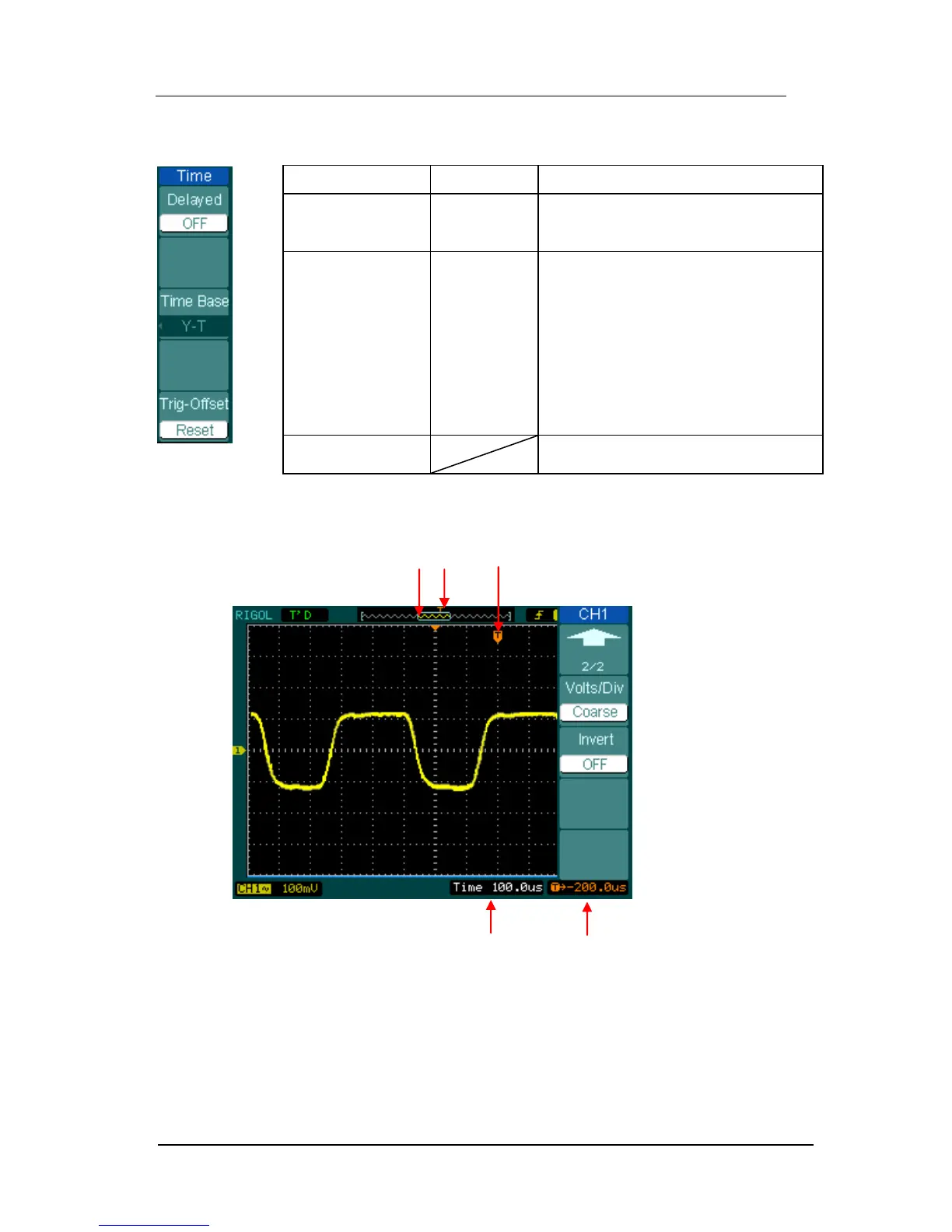

Figure 2-37 Table 2-19 The Horizontal menu
① ② ③
④ ⑤
Figure 2-38
Status bar and mark for Horizontal control
Menu
Settings
Comments
Delayed
ON
OFF
Turn on Delayed Scan mode
Turn off the Delayed Scan mode
Time Base
Y-T
X-Y
Roll
Show the relative relation between
vertical voltage and horizontal
time.
Show CH1 value at X axis; CH2
value at Y axis.
In Roll Mode, the waveform display
updates from right to left.
Trig-offset Reset
Adjust to the center
