User‟s Guide for DS1000 Series
2-40

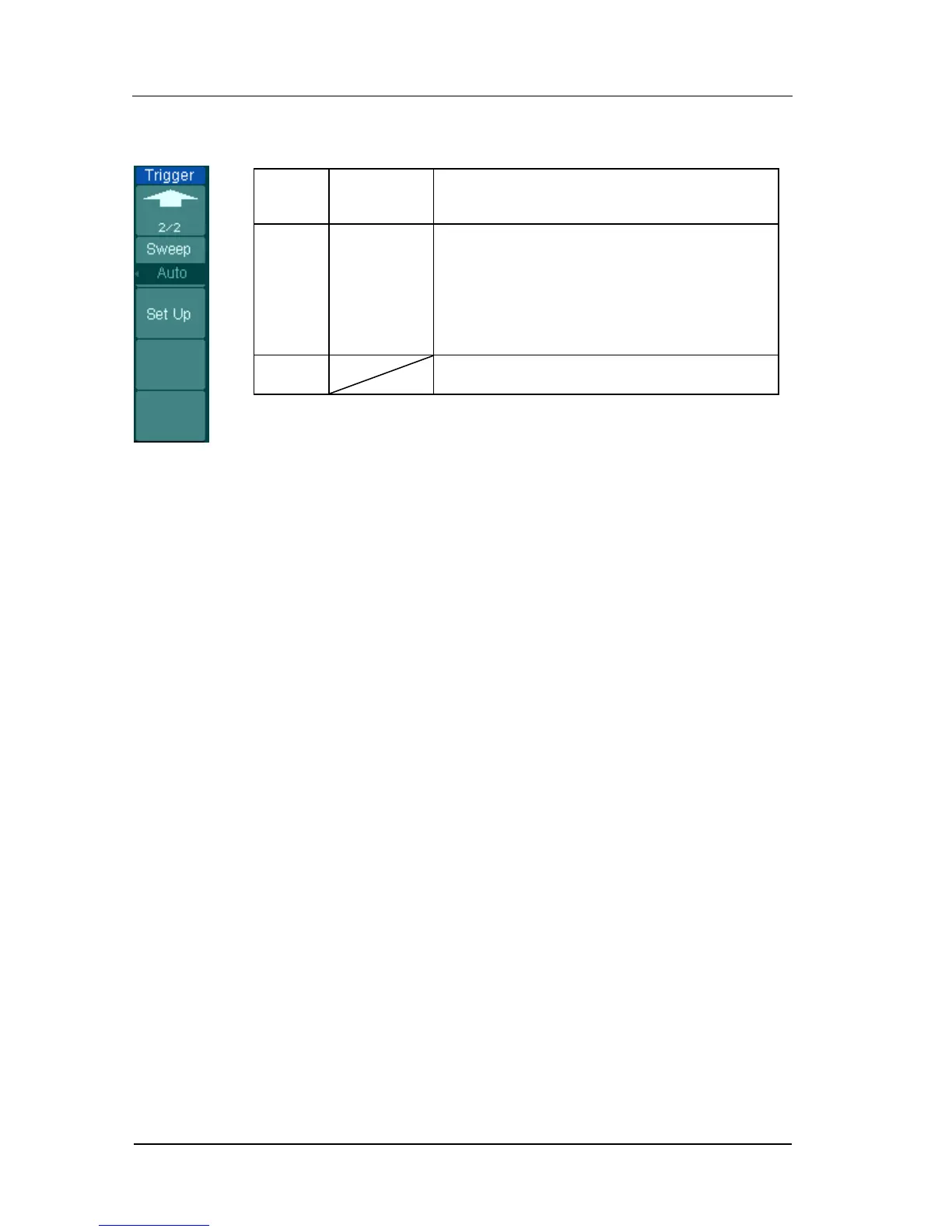

Figure 2-44 Table 2-22
Menu
Settings
Comments
Sweep
Auto
Normal
Single
Acquire waveform even no trigger
occurred
Acquire waveform when trigger occurred.
When trigger occurs, acquire one
waveform and then stop
Set Up
To go to Set Up menu, see table 2-38
Note: The Pulse width adjust range is 20ns ～ 10s. When the condition is met, it will
trigger and acquire the waveform.
