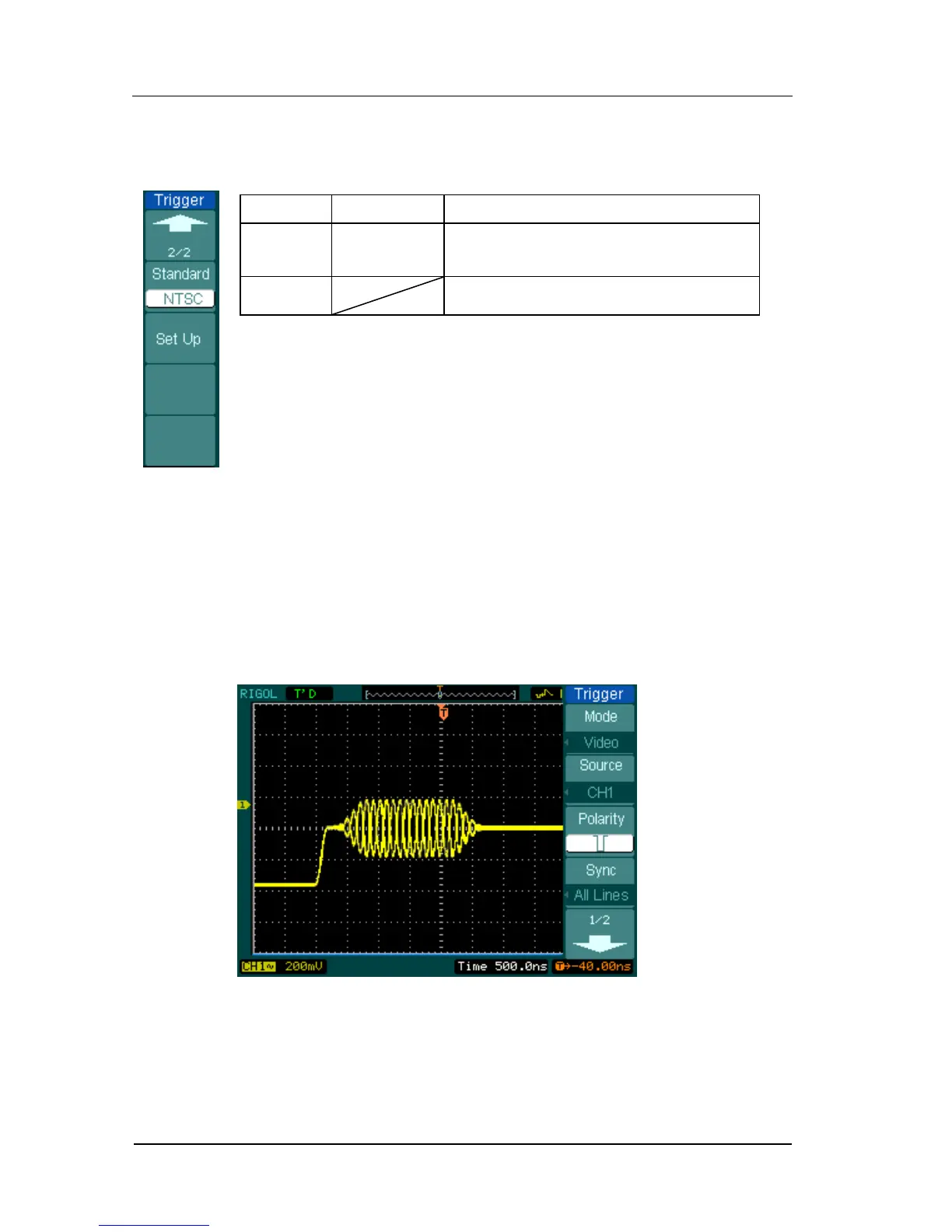

Figure 2-47 Table 2-25 The Video Trigger menu (When the Sync is set as All lines,
Odd field and Even field)
Menu
Settings
Comments
Standard
PAL/SECAM
NTSC
Select Video standard
Set Up
To go to set up menu, see table 2-39
Key points
Sync Pulses: When Normal Polarity is selected, the trigger always occurs on
negative-going sync pulses. If the video signal has positive-going sync
pulses, use the inverted Polarity selection.
Figure 2-48
Video Trigger: Line Synchronization
