User‟s Guide for DS1000 Series
2-50

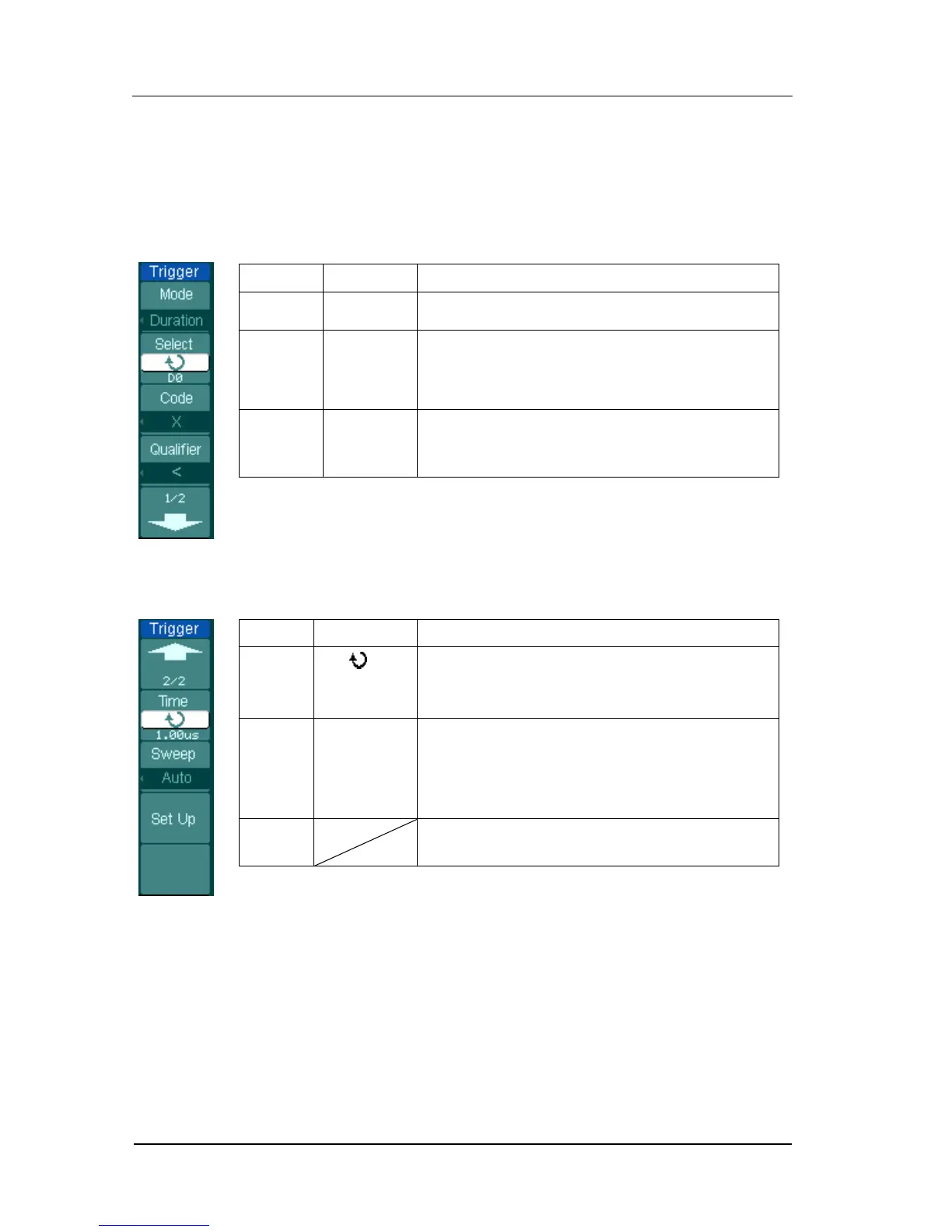

Duration Trigger (DS1000xD)
Trigger in appointed time when code terms are satisfied.
Figure 2-60 Table 2-36 (Page One)
Menu
Settings
Comments
Select
D15-D0
Choose digital channel for Duration Trigger
Code
H
L
X
High
Low
Ignore
Qualifier
<
>
=
Set time limit terms
Figure 2-61 Table 2-37 (Page Two)
Menu
Settings
Comments
Time
<Time
Setting>
Set duration and limit symbol time
Sweep
Auto
Normal
Single
Acquire waveform even no trigger occurred
Acquire waveform when trigger occurred
When trigger occurs, acquire one waveform
and then stop
Set Up
To go to set up menu, see table 2-40
