RIGOL
© 2006 RIGOL Technologies, Inc.
User‟s Guide for DS1000 Series
Trigger Set Up
Set up different trigger settings according to different trigger modes. When in the
mode of Edge and Pulse, only Holdoff is adjustable. When source is non-digital
channel and in slope trigger, only trigger coupling, trigger sensitivity and Holdoff can
be set. For video trigger, Sensitivity and Holdoff can be set.

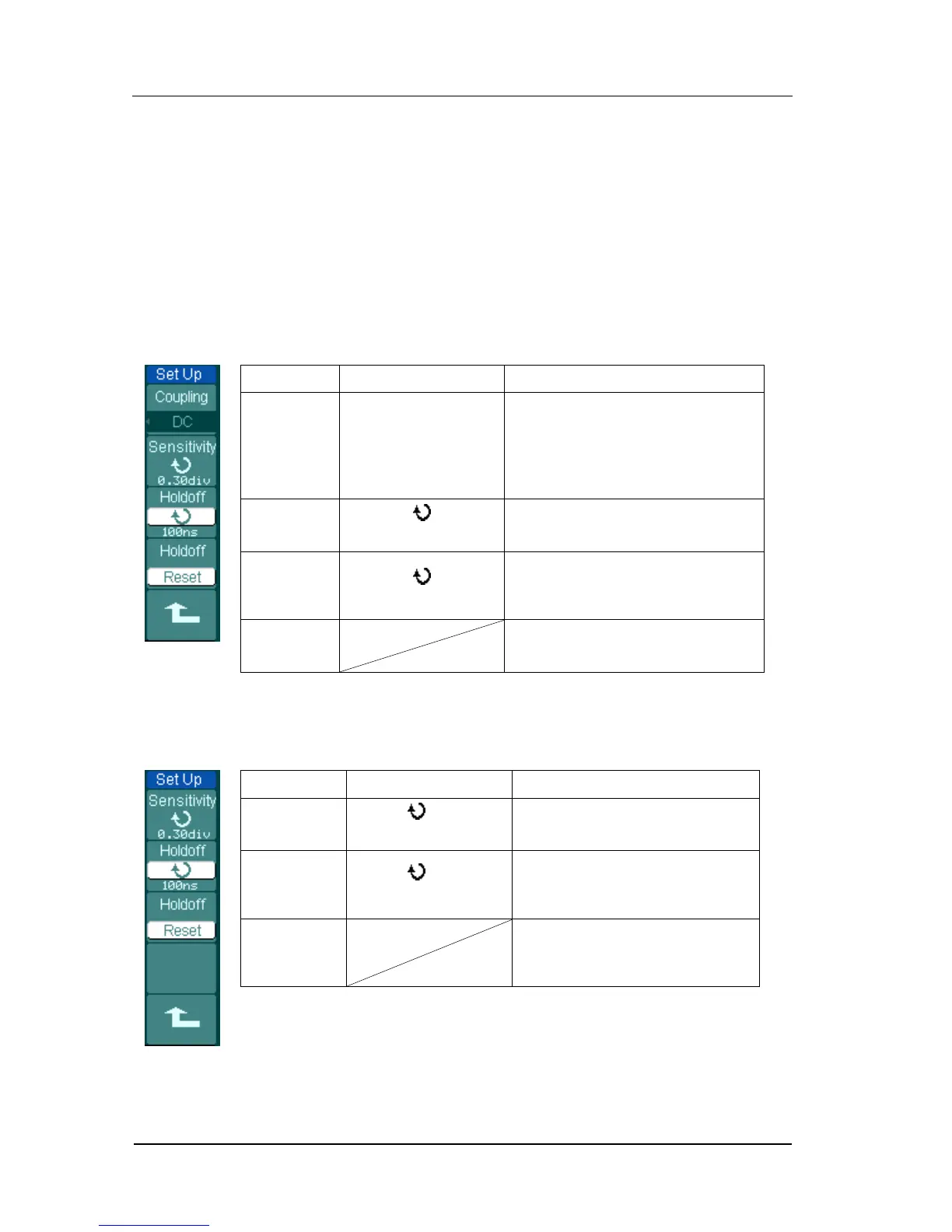

Figure 2-62 Table 2-38 The Trigger Set Up menu (Settings for trigger coupling,
trigger sensitivity and holdoff)
DC
AC
HF Reject
LF Reject
Allow all signals pass
Block DC signals
Reject high frequency signals
Reject DC and low frequency
signals
Set time slot before another
trigger event
Reset Holdoff time to 100ns
Figure 2-63 Table 2-39 The Trigger Set Up menu (Settings for sensitivity and
holdoff)
Set time slot before another
trigger event
Reset Holdoff time to 100ns
To Next Page
