User’s Guide for DS1000CA Series
Waveform Recorder
Waveform recorder records input waveforms from CH1 and CH2, with a maximum
record length of 1000 frames. This performance can also be activated by the
Pass/Fail test output, which makes this function especially useful to capture
abnormal signals in long term without keeping an eye watching it.

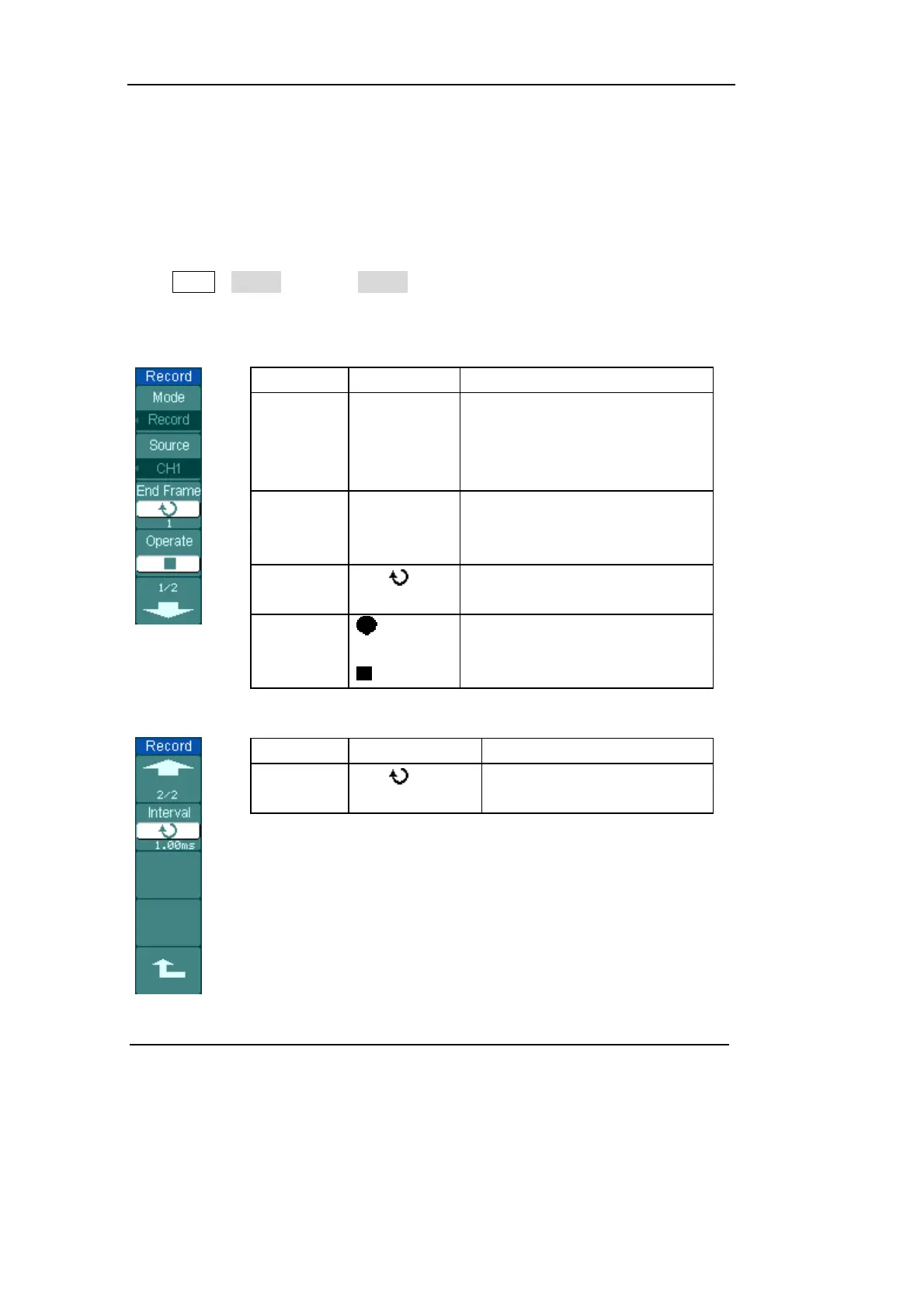

Press Utility→Record→Mode→Record to go to the following menu
Waveform recorder: Record the waveforms with specified interval.
Figure 2-93
Table2-60 The Record menu (Page 1/2)
Menu Settings Comments
Mode
Record
Play back
Storage
OFF
Select record mode.
Select play back mode.
Select storage mode.
Turn off all recorder functions.
Source
CH1
CH2
P/F-OUT
Select record source channel.
End Frame
<1-1000>
Set number of record frames.
Operate
(Run)
(Stop)
Record stopped, press to Start
recording.
Press to stop recording.
Figure 2-94
Table2-61 The Record menu (Page 2/2)
Menu Settings Comments
Interval
<1.00ms-1000s>
Set time interval between
record frames.
To Next Page
