Play back: Play back the recorded waveforms.

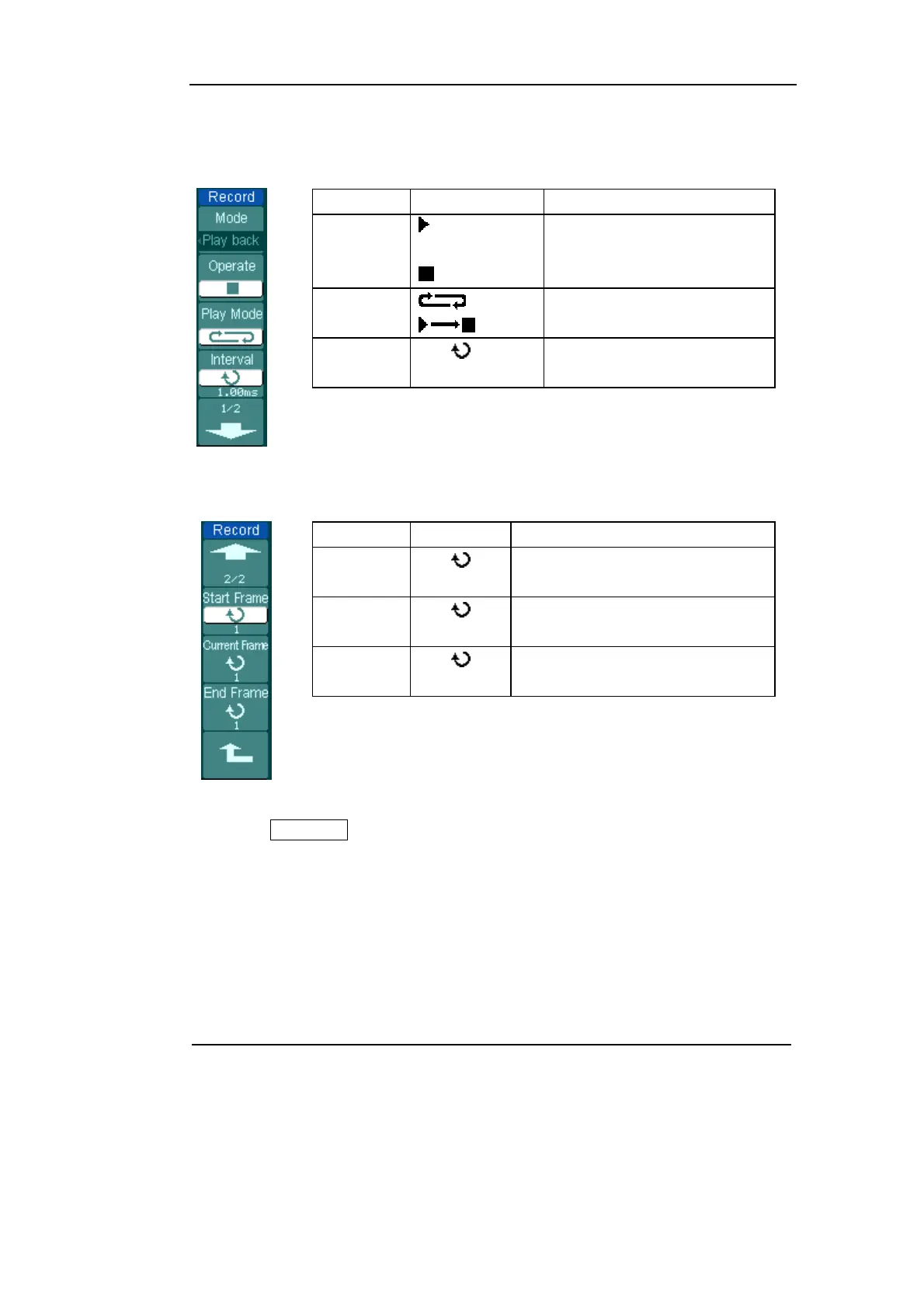

Figure 2-95
Table 2-62 The Record menu (Page 1/2)
Menu Settings Comments
Operate
(Run)
(Stop)
Play stopped, press to Start
playback.
Press to stop playing.
Play mode
Set repeat play mode.
Set single time play mode.
Interval
<1.00ms-20s>
Set up interval.
Figure 2-96
Table 2-63 The Record menu (Page 2/2)
Menu Settings Comments
Start
Frame
<1-1000>
Set start frame.
Current
Frame
<1-1000>
Select current frame to be played.
End Frame
<1-1000>
Set End frame.
Note: the RUN/STOP button can also replay or continue the waveform display.
