Menus and operations of Cursor Measurements
1. Manual Mode

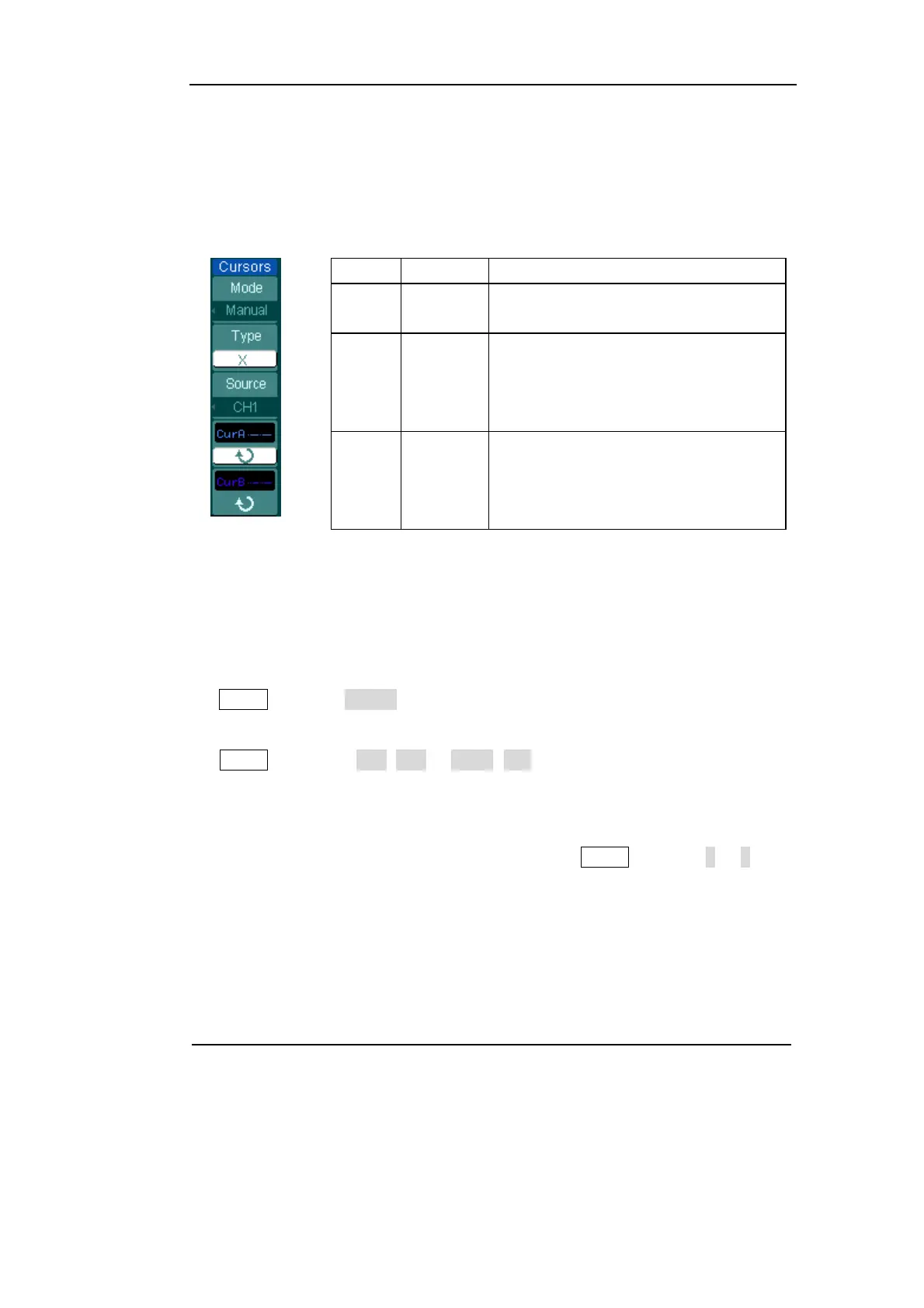

Figure 2-113 Table 2-75 The Cursors menu
Menu Settings Comments
Mode Manual
Adjust the cursor to measure X/Y
parameters manually.
Type
X
Y
Shown as vertical line to measure the
horizontal parameters.
Shown as horizontal line to measure
the vertical parameters.
Source
CH1
CH2
MATH
FFT
Select the measurement signal source.
In this mode, the oscilloscope measures the Y or X coordinate values of the cursors,
and the increments between the two cursors.
To do manual Cursor Measurements, please do as the following steps:
1. Select the Manual mode for cursor measurement by pressing soft button as:
Cursor→Mode→Manual.
2. Select channel Source for measurements by pressing soft button as:
Cursor→Source→CH1, CH2 or MATH (FFT).
NOTE: While measuring the channel with MATH, the results are valued with “d”
(division) as units.
3. Select the cursors type by pressing soft button as Cursor→Type→ X or Y.
4. Move the cursors to adjust the increment between the cursors:(Details in the
following Table)
