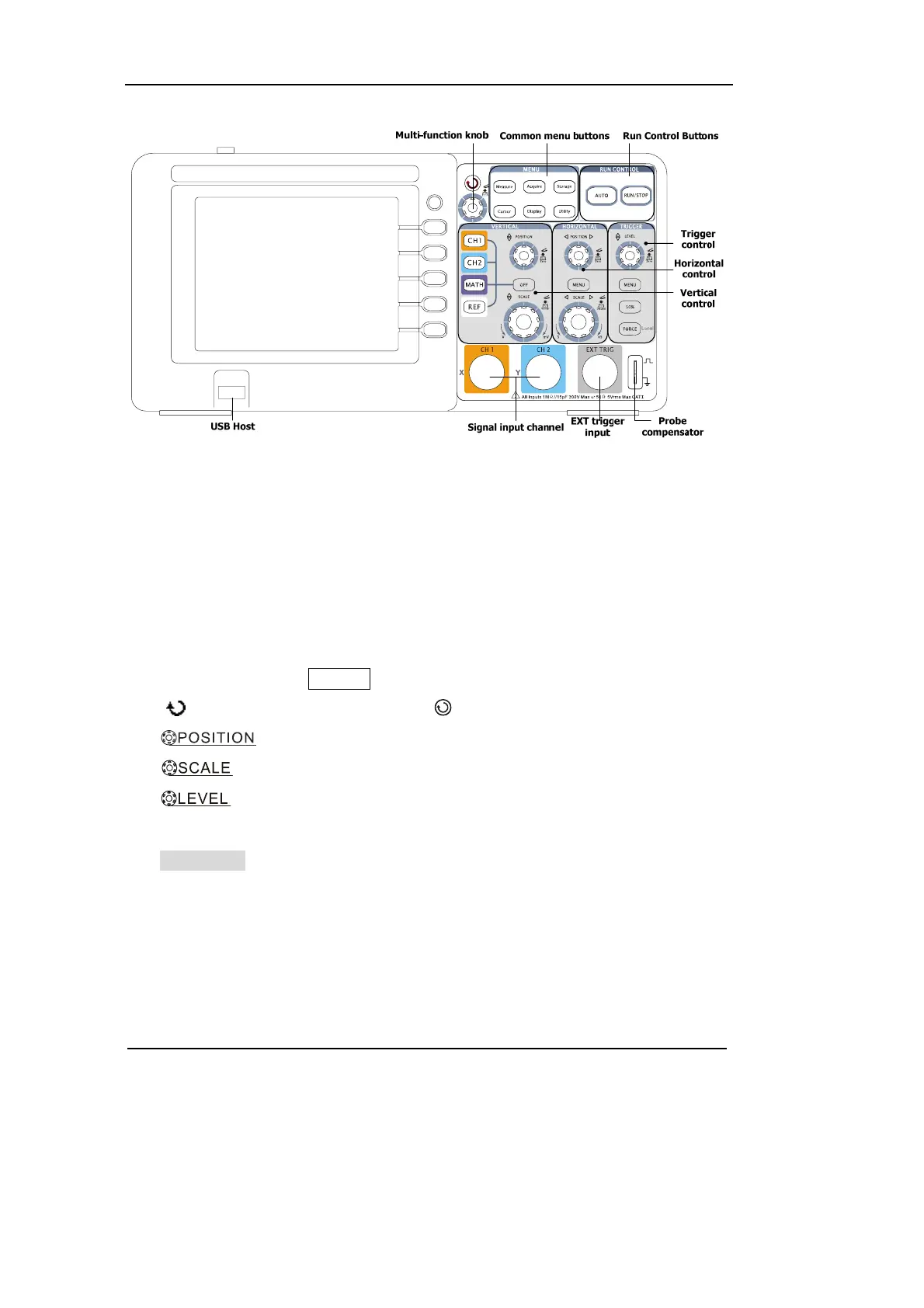

Figure 1-2
Front Panel Controls
Notation definitions in this User’s Guide:
Throughout this manual, notation symbols of buttons and knobs are the same of
those on front-panel.
z A box around the name of the key denotes MENU function buttons on
front-panel, such as Measure.
z ( ) denotes the multi-function knob .
z
denotes the two POSITION knobs.
z
denotes the two SCALE knobs.
z
denotes the LEVEL knob.
z The name with a drop shadow denotes the menu operating key, such as
WAVEFORM soft key in STORAGE menu.
