User’s Guide for DS1000CA Series
2-9
4. Volts/Div settings
The Volts/Div control has Coarse or Fine configuration. The Vertical Sensitivity is
1mv/div - 10V/div.
Coarse: It is the default setting of Volts/Div in a 1-2-5-step sequence from 1mV/div,
2mV/div, 5mV/div, 10mV/div, to 10 V/div.
Fine: This setting changes the vertical scale to small steps between the coarse
settings. It will be helpful to adjust the waveform in smooth steps.

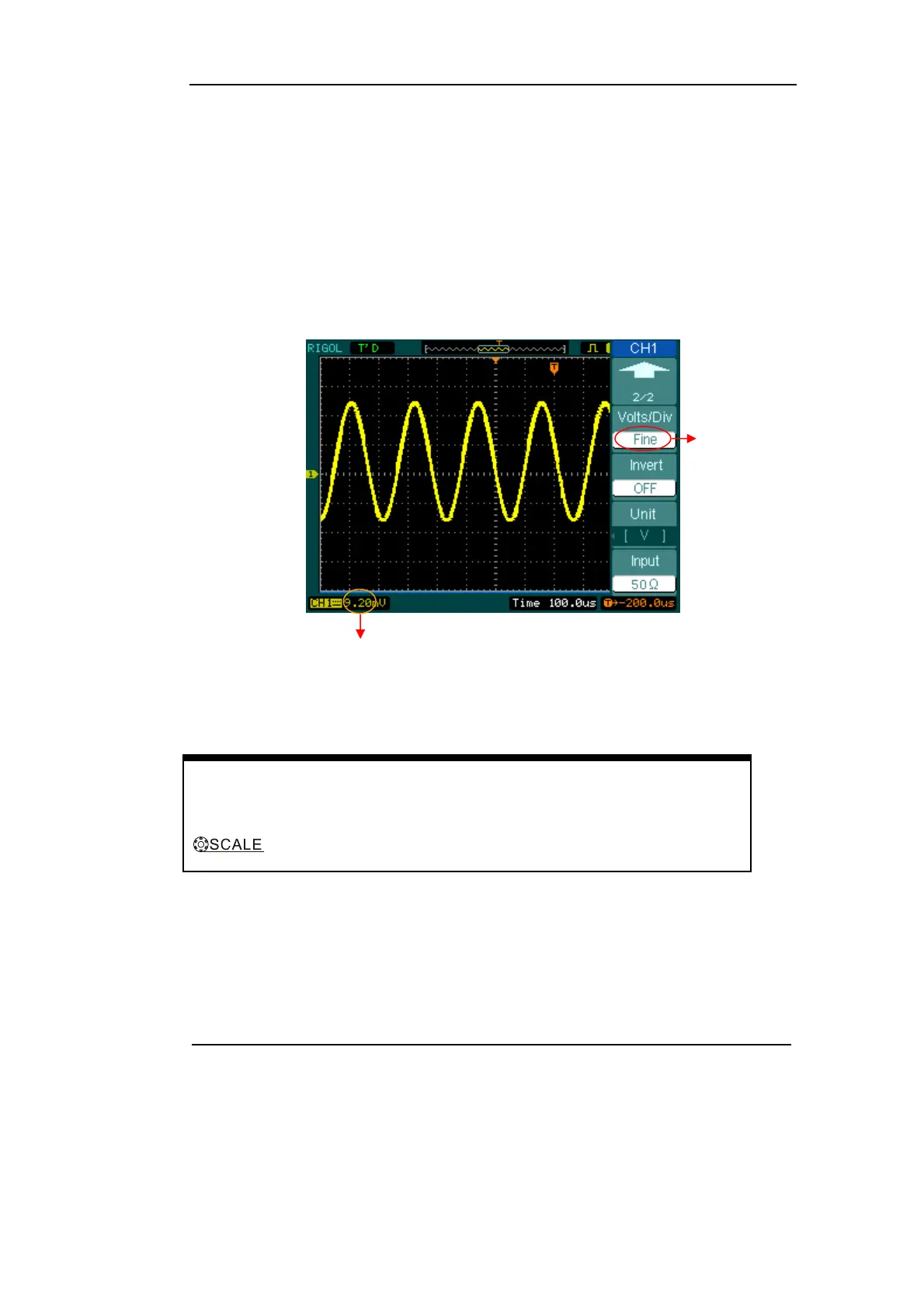

Figure 2-9
Fine configurations
Coarse/Fine Shortcut key:
To change Coarse/Fine setting, not only by menu but also by pressin
g
vertical
knob.
Fine adjustment
Fine adjustment data
