5. To invert a waveform
Invert turns the displayed waveform 180 degrees, as respect to the ground level.
When the oscilloscope is triggered on the inverted signal, the trigger is also inverted.

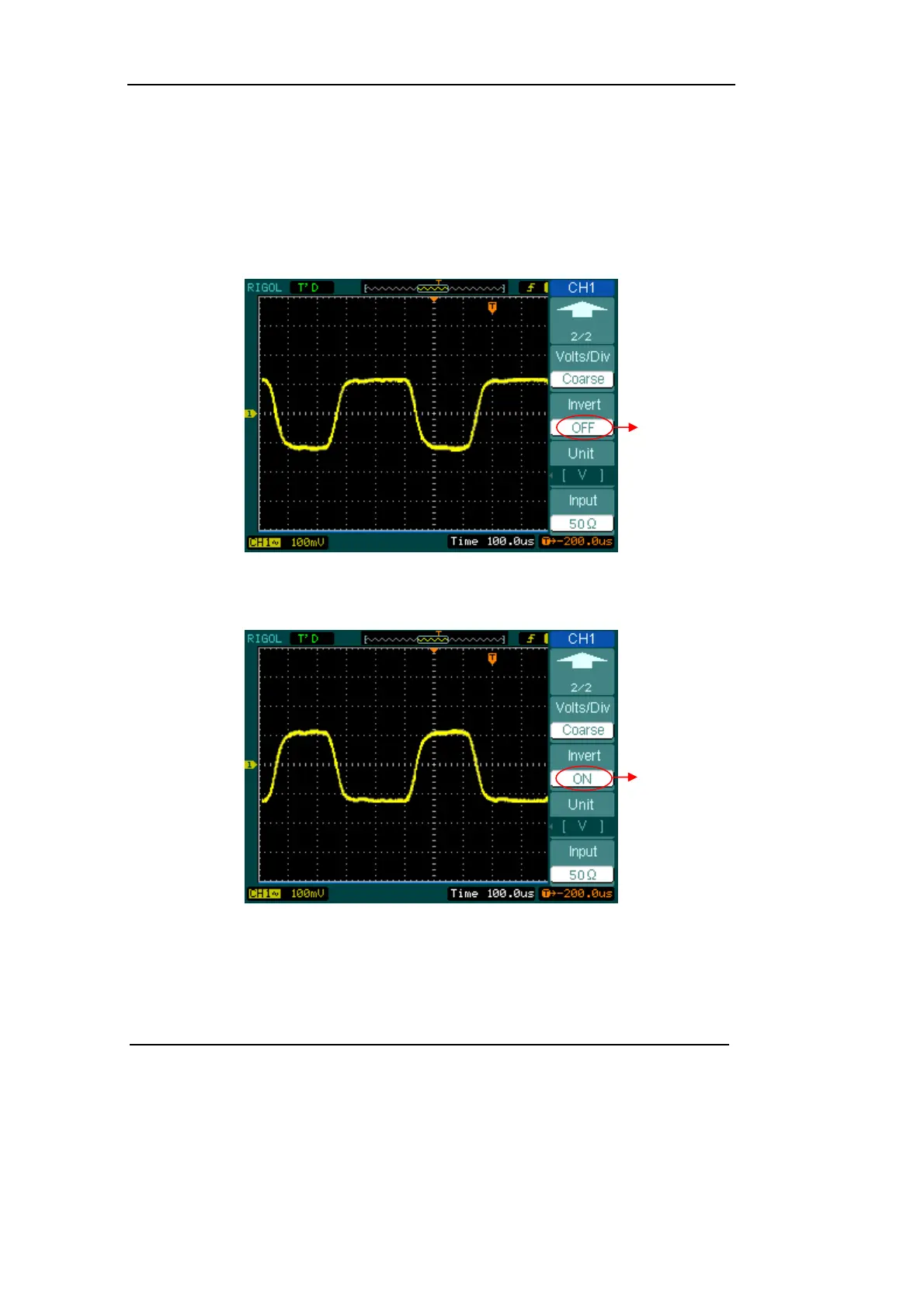

Figure 2-10 and 2-11 show the changes before after the inversion respectively.
Figure 2-10 The waveform before inversion
Figure 2-11 The waveform after inversion
Invert on
Invert off
