RIGOL
2-30 Copyright ©1998-2008 RIGOL Technologies, Inc.
User’s Guide for DS1000CA Series
X-Y Format
This format is useful for studying phase relationships between two signals.
Channel 1 in the horizontal axis(X) and channel 2 in the vertical axis(Y), the
oscilloscope uses a none-trigger acquisition mode, data is displayed as dots. .

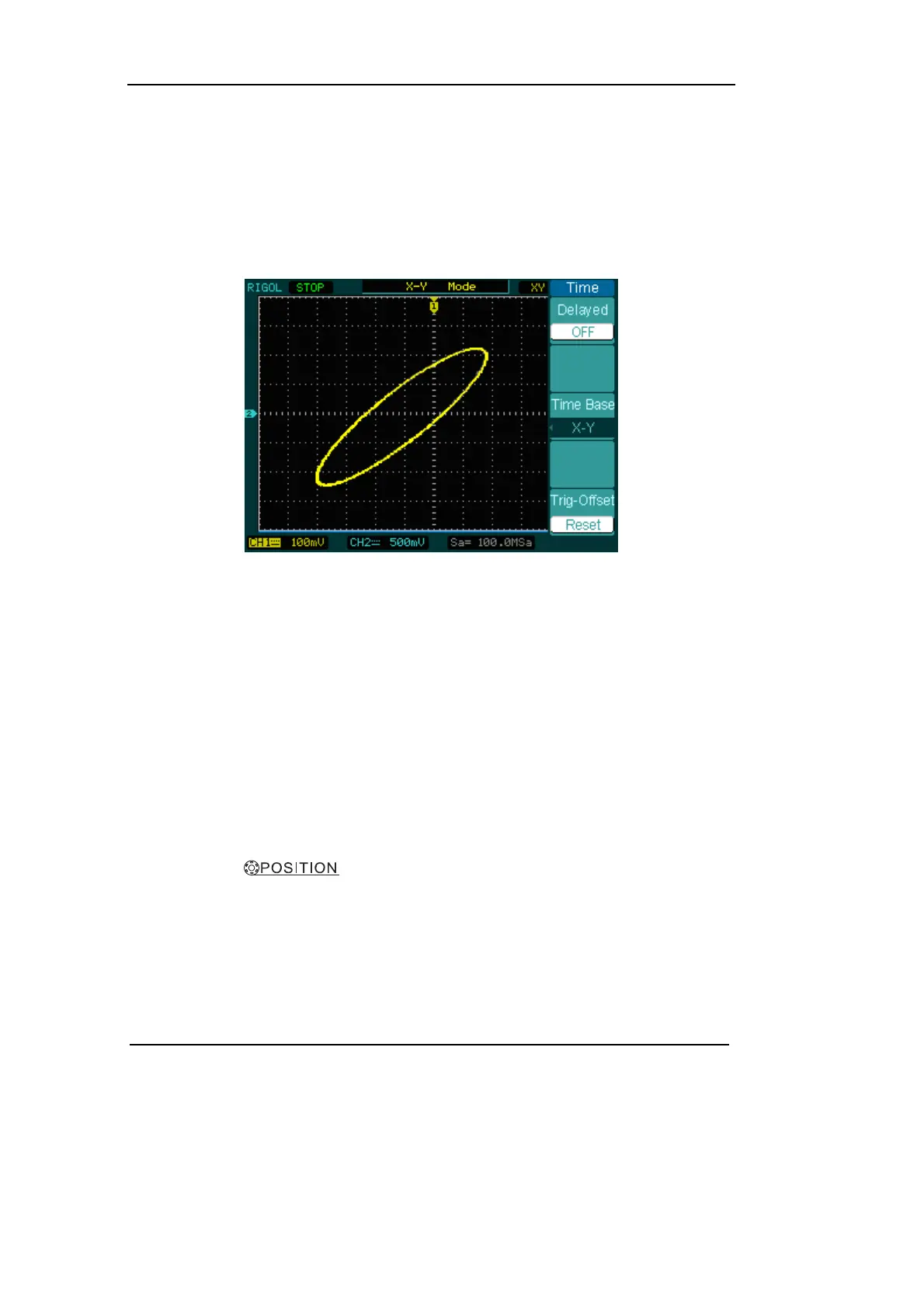

Figure 2-34
X-Y display format
The following modes or functions will not work in X-Y format.
z Automatic Measurements
z Cursor Measurements
z REF and MATH Operations
z Delayed Scan Mode
z Vector Display Mode
z Horizontal
knob
z Trigger Controls
