User’s Guide for DS1000CA Series

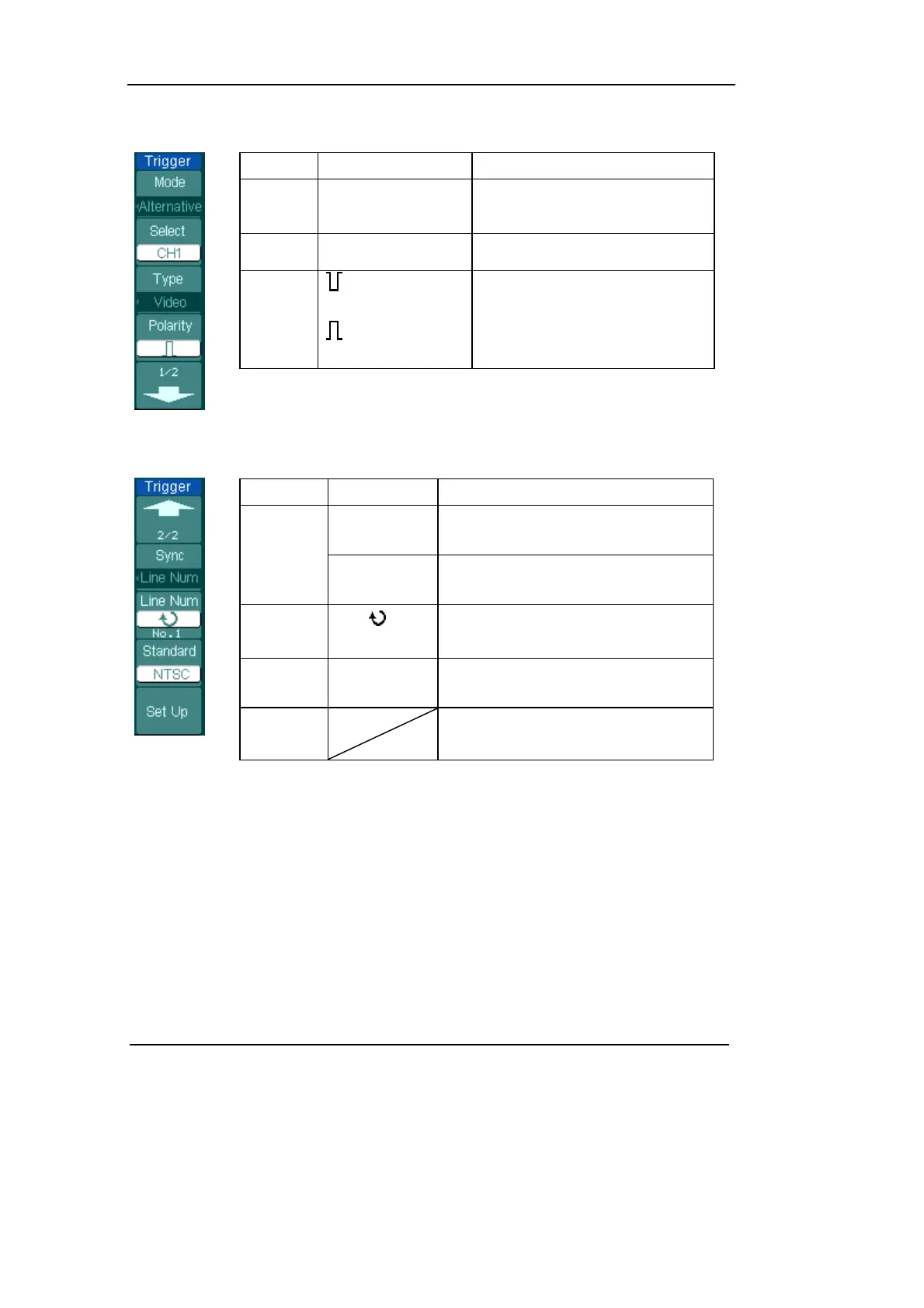

Figure 2-51 Table 2-30 The Alternative menu (Trigger Type: Video Page 1/2)
Menu Settings Comments
Select
CH1
CH2
Set trigger mode for Channel 1.
Set trigger mode for Channel 2.
Type Video Video Trigger for the channel.
Polarity
Normal polarity
Inverted polarity
Trigger on negative going sync
pulses.
Trigger on positive going sync
pulses.
Figure 2-52 Table 2-31 The Alternative menu (Trigger Mode: Video Page 2/2)
Menu Settings Comments
Sync
ALL lines
Line Num
Trigger on all lines.
Trigger on an specified line.
Odd field
Even field
Select to trigger on odd field or even
field.
Line Num
<Lines Set >
Select the specified line number for
sync.
Standard
PAL/SECM
NTSC
Select Video standard.
Set Up
To go to set up menu. See Table
2-32 and table 2-33.
