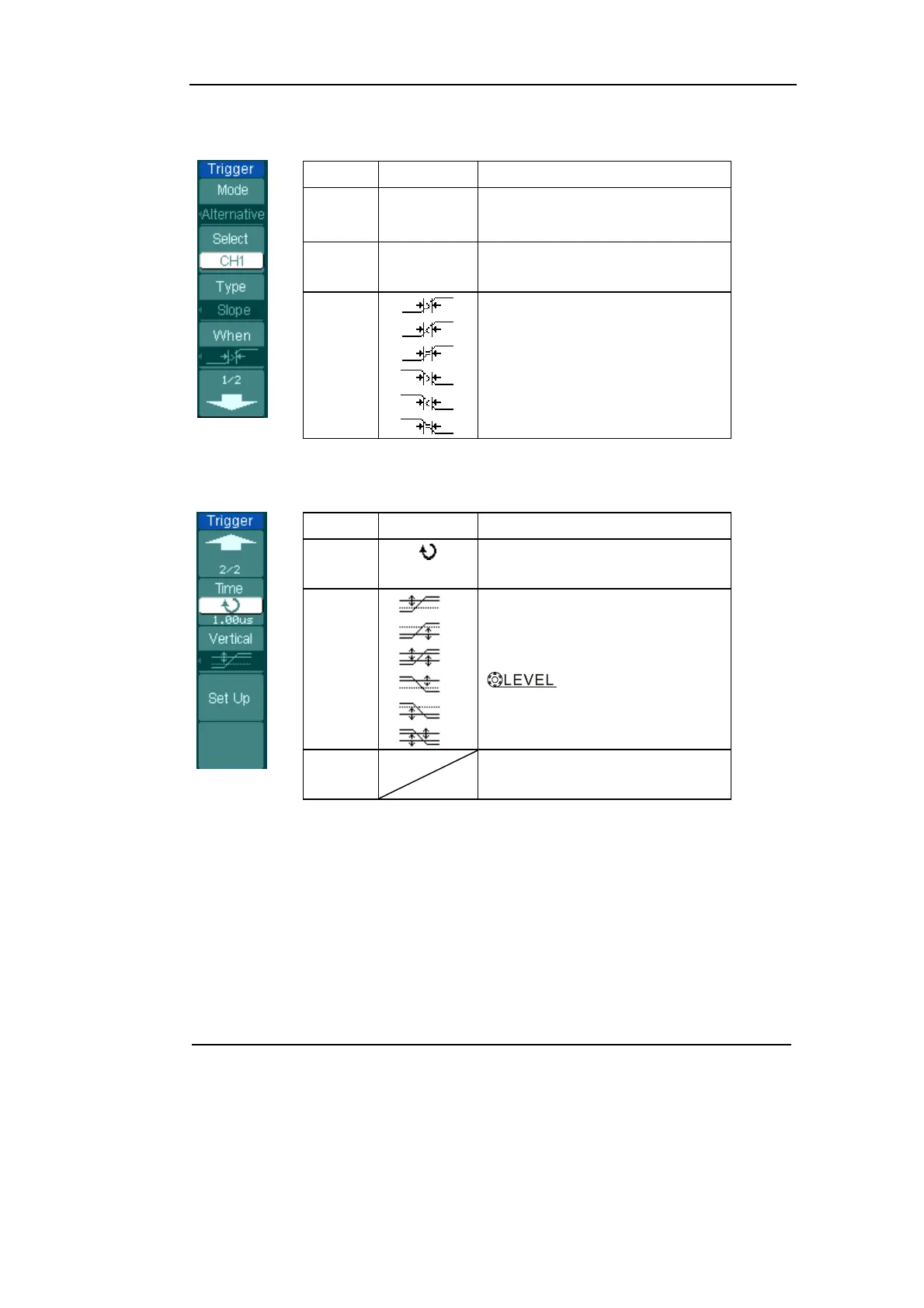

Figure 2-49 Table 2-28 The Alternative menu (Trigger Type: Slope Page 1/2)
Menu Settings Comments
Select
CH1
CH2
Set trigger mode for Channel 1.
Set trigger mode for Channel 2.
Type Slope
Set Slope Trigger for the vertical
channel.
When Set trigger condition.
Figure 2-50 Table 2-29 The Alternative menu (Trigger Type: Slope Page 2/2)
Menu Settings Comments
Time
<
Time Set >
Set slope time.
Vertical
Select the level to be ad
j
usted by
.
Set Up
To go to set up menu. See Table
2-32 and table 2-33.
