User’s Guide for DS1000CA Series

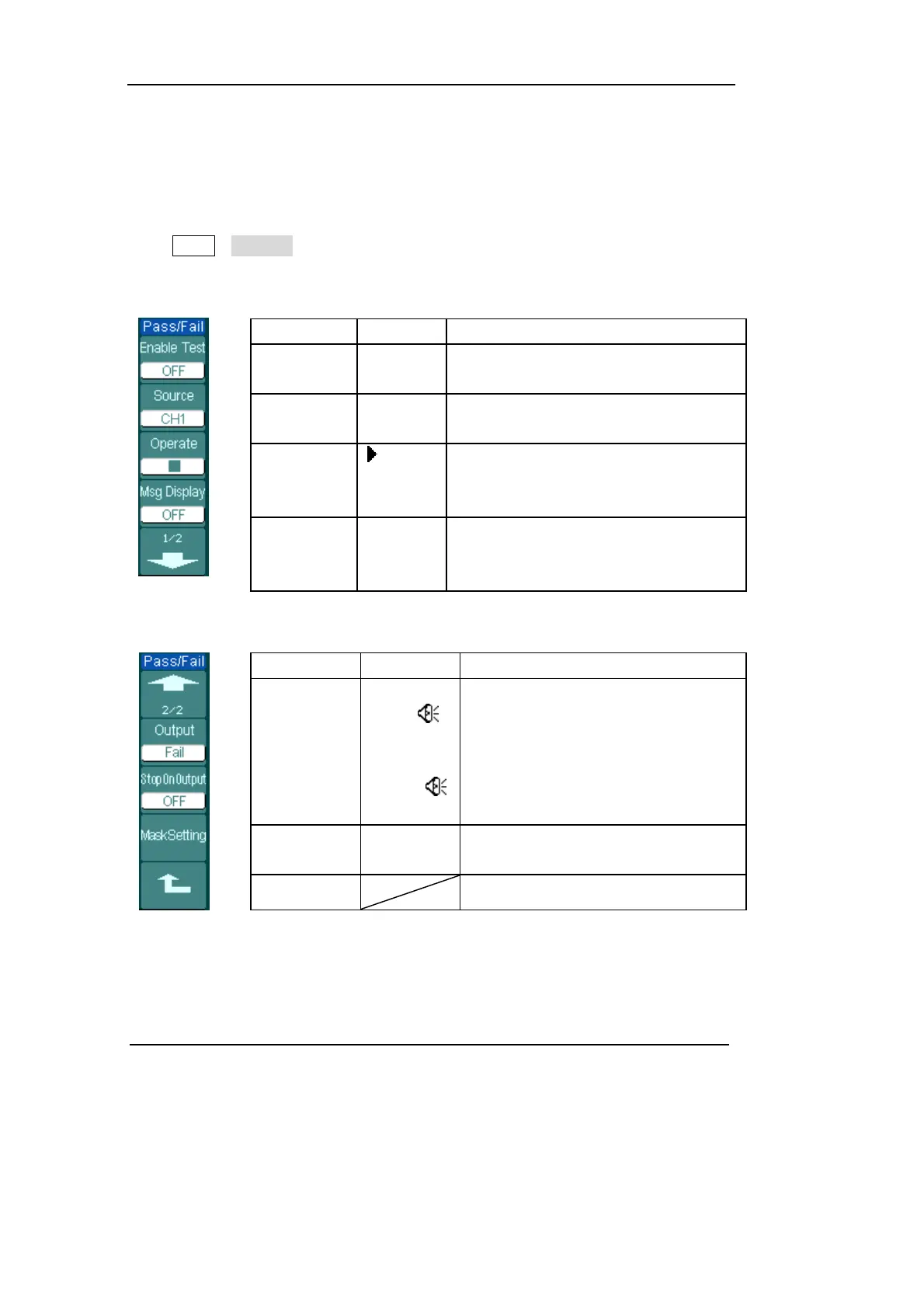

Pass/Fail
The Pass/Fail function monitors changes of signals and output pass or fail signals by
comparing the input signal is within the pre-defined mask.
Press Utility→Pass/Fail to go to the following menu.
Figure 2-85 Table 2-53 The Pass/Fail menu (Page 1/2)
Menu Setting Comments
Enable Test
ON
OFF
Turn on Pass/Fail test.
Turn off Pass/Fail test.
Source
CH1
CH2
Select Pass/Fail test on CH1.
Select Pass/Fail test on CH2.
Operate
(RUN)
■ (STOP)
Pass/Fail test stopped, press to run.
Pass/Fail test running, press to stop.
Msg display
ON
OFF
Turn on Pass/Fail information display.
Turn off Pass/Fail information display.
Figure 2-86
Table 2-54 The Pass/Fail menu (Page 2/2)
Menu Settings Comments
Output
Fail
Fail +
Pass
Pass +
Output when Fail condition detected.
Output and beep when Fail condition
detected.
Output when Pass condition detected.
Output and beep when Pass condition
detected.
Stop
on Output
ON
OFF
Stop test when output occur.
Continue test when output occur.
Mask Setting Go to mask setting menu.
