Mask setting
Press Utility→Pass/Fail→Mask Setting to go to the following menu.

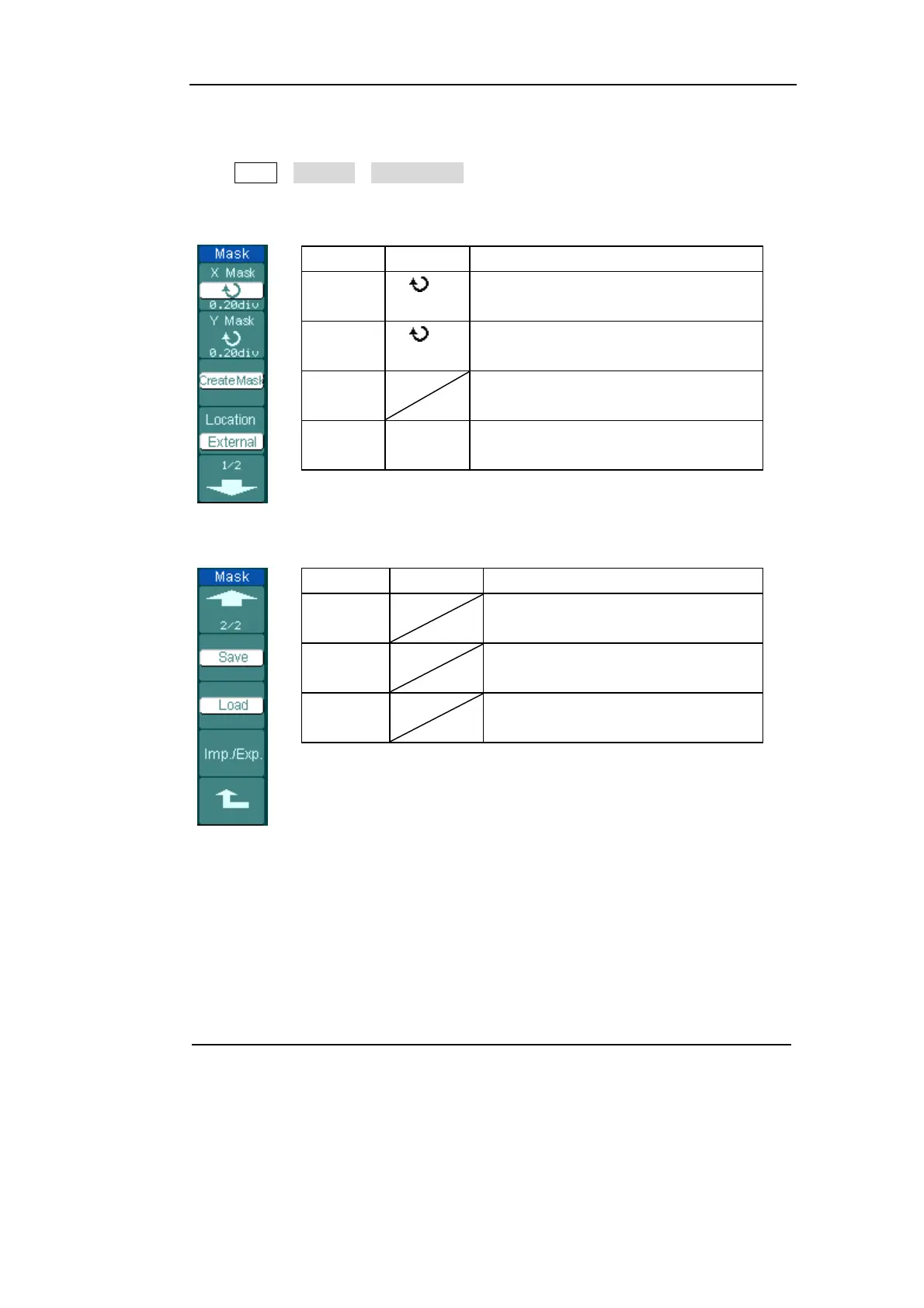

Figure 2-87
Table 2-55 The Mask setting menu (Page 1/2)
Menu Settings Comments
X Mask
<x div>
Set horizontal clearance to the
waveform (0.04div-4.00div).
Y Mask
<y div>
Set vertical clearance to the waveform
(0.04div-4.00div).
Create
Mask
Create a test mask according to the
above clearance.
Location
Internal
External
Set the memory location of the mask
files.
Figure 2-88
Table 2-56 The Mask setting menu (Page 2/2)
When the save as internal memory
Menu Settings Comments
Save
Store created test mask into internal
memory.
Load
Recall mask setting file from internal
memory.
Imp./Exp.
Go to import/export menu (same as
REF import/export menu.).
