Note: You can also press down knob continuously to switch the current
cursor.
3. Display Lissajous Legend
This oscilloscope provides the lissajous schematic diagram under different
frequencies and phases.

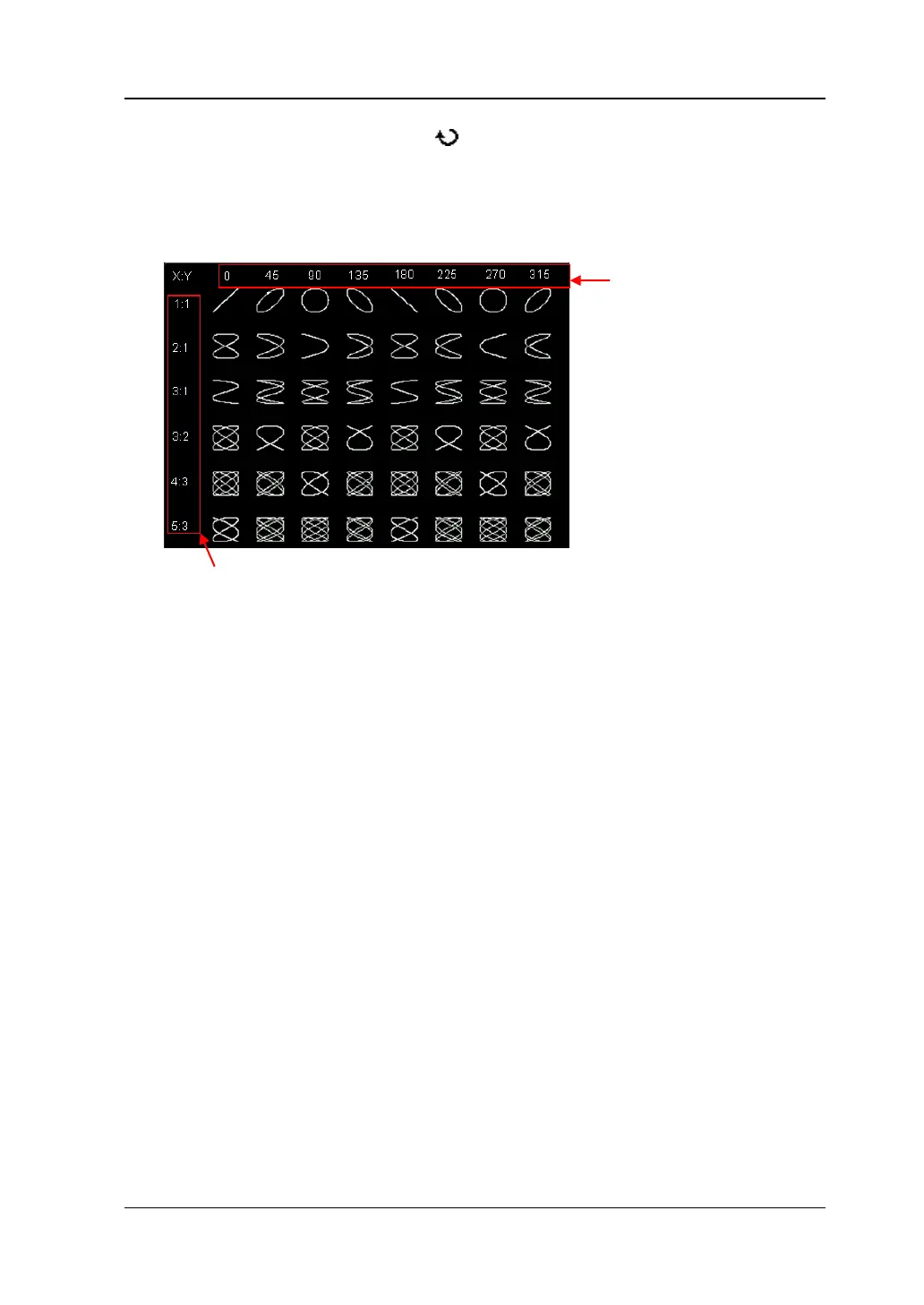

Figure 6-9 Lissajous Schematic Diagram
Phase difference
between two signals
Frequency ratio
between two signals
