Chapter 1 Quick Start RIGOL
DS1000Z-E User Guide 1-21
Parameter Setting Method
DS1000Z-E supports the following two parameter setting methods.
Method one:
For the parameters with displayed on the menu, you can turn the multifunction
knob directly to set the desired values.
Method two:
For the parameters with displayed on the menu, press down the multifunction
knob and the numeric keyboard as shown in the figure below is displayed. Turn
the knob to select the desired value and press down the knob to input the value.
After entering all the values, turn the knob to select the desired unit and press down
the knob to complete the parameter setting.

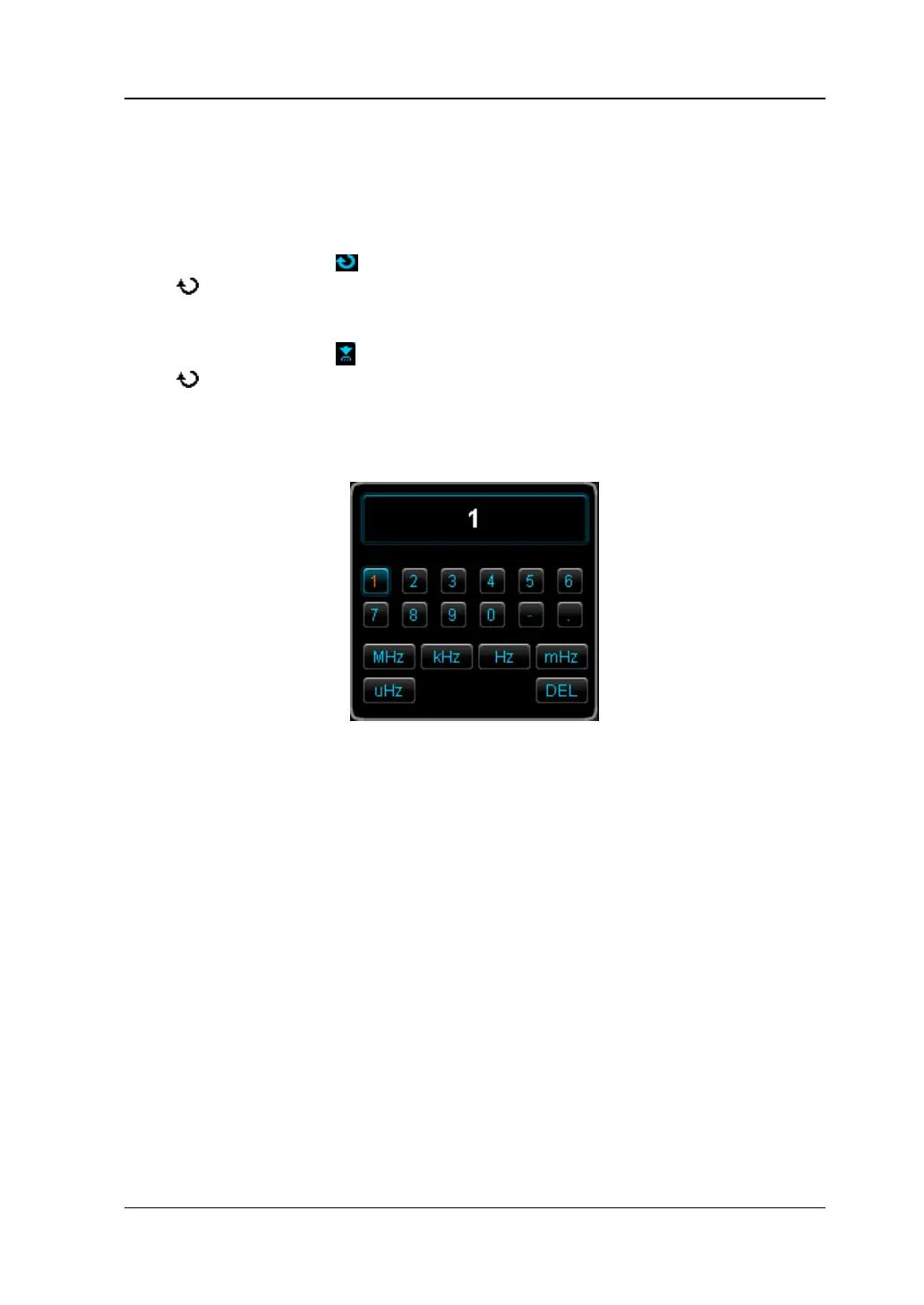

Figure 1-12 Numeric Keyboard
