Front Panel Overview

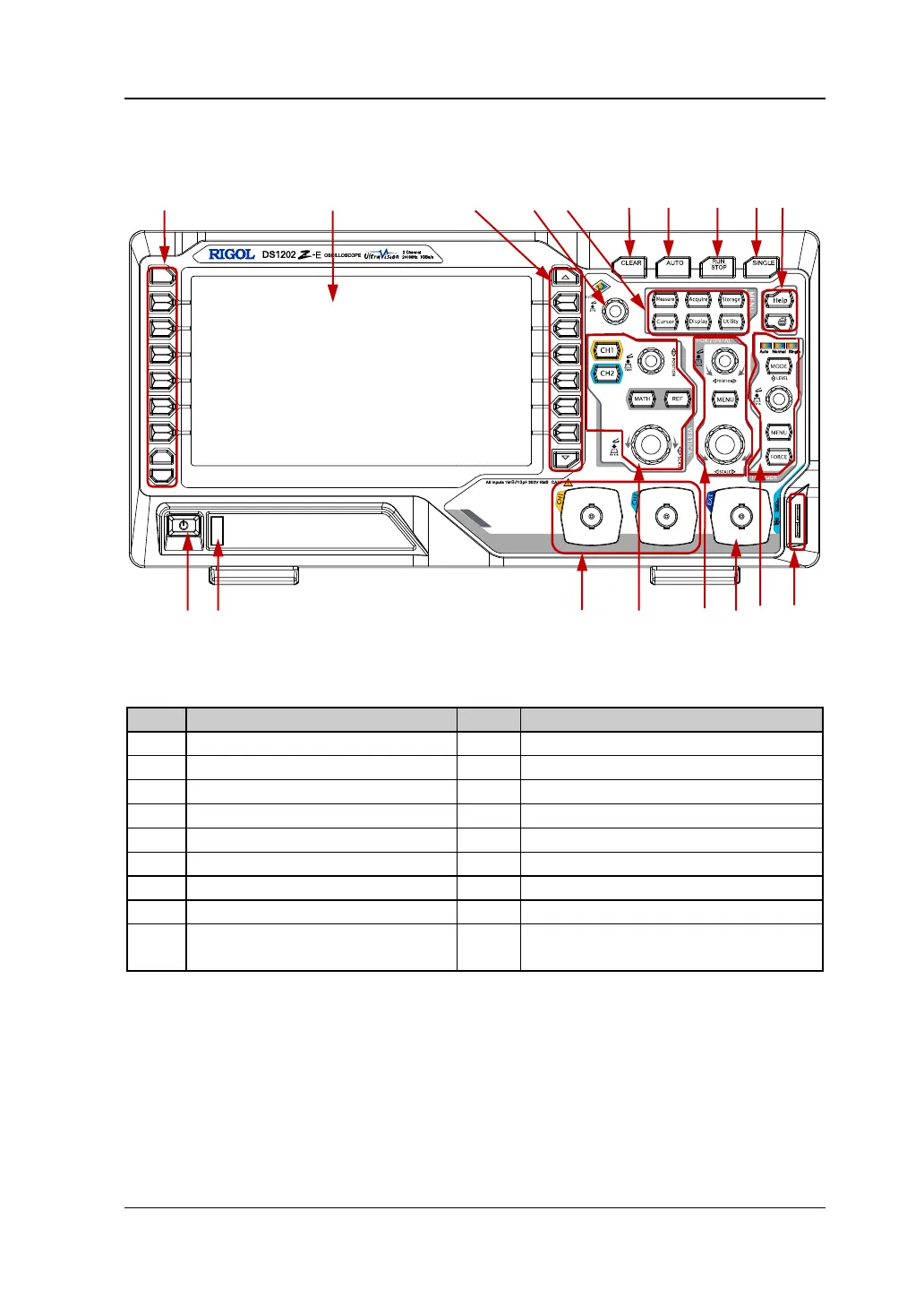

Figure 1-9 Front Panel Overview
Table 1-1 Front Panel Descriptions
No.
Description
No.
Description
1
Measurement Menu Softkeys
10
Help/Print
2
LCD
11
Power Key
3
Function Menu Softkeys
12
USB Host Interface
4
Multifunction Knob
13
Analog Channel Input Area
5
Common Operation Keys
14
VERTICAL Control Area
6
CLEAR
15
HORIZONTAL Control Area
7
AUTO
16
External Trigger Input
8
RUN/STOP
17
TRIGGER Control Area
9
SINGLE
18
Probe Compensation Signal
Output Terminal/Ground Terminal
3 4 5 6 7 8 9 10
1 2
(1) (2)
11 12 13 14 15 16 17 18
