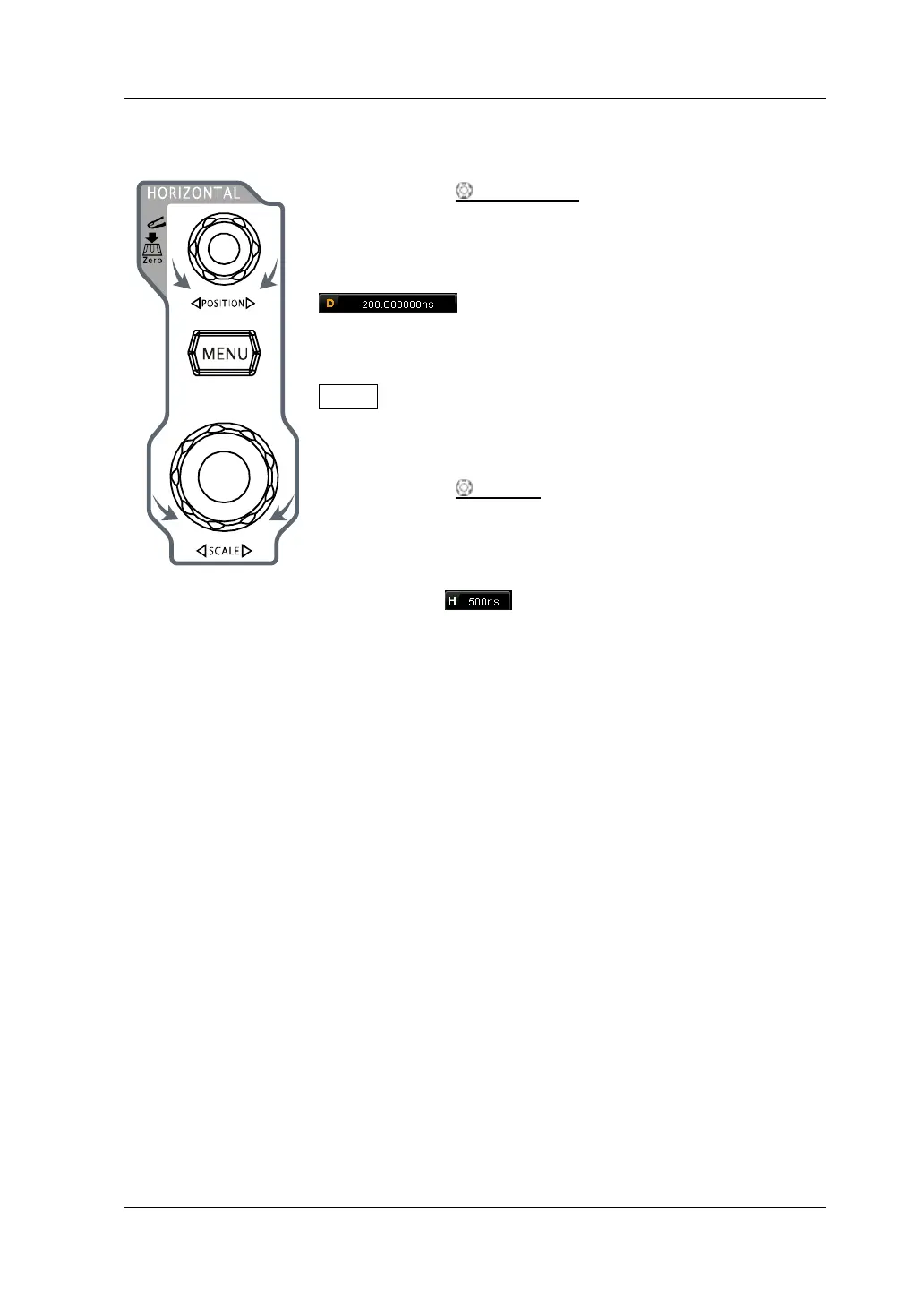

HORIZONTAL POSITION: modify the horizontal
position. The trigger point would move left or right relative
to the center of the screen when you rotate the knob. During
the modification, waveforms of all the channels would move
left or right and the horizontal position message (e.g.
) at the upper-right corner of the screen
would change accordingly. Press down this knob to quickly
reset the horizontal position (or the delayed sweep position).
MENU: press this key to open the horizontal control menu
where you can turn on or off the delayed sweep function and
switch between different time base modes.
HORIZONTAL SCALE: modify the horizontal time
base. Turn clockwise to reduce the time base and turn
counterclockwise to increase the time base. During the
modification, waveforms of all the channels will be displayed
in expanded or compressed mode and the time base
message (e.g. ) at the upper side of the screen
would change accordingly. Press down this knob to quickly
switch to the delayed sweep state.
