RIGOL Chapter 3 Programming Demos
3-4 DS1000Z Programming Guide

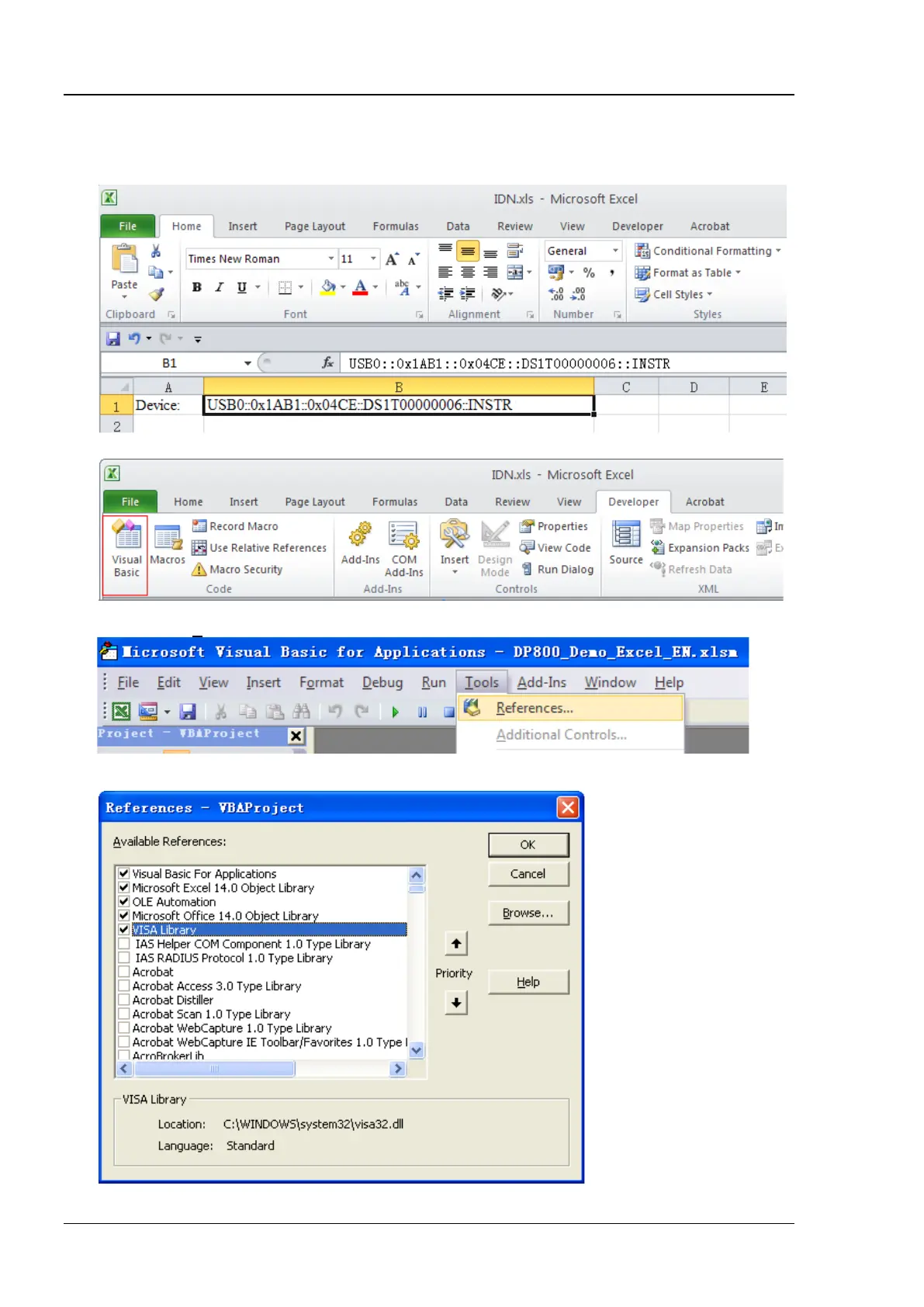

3. Enter the VISA descriptor into a cell of the file as shown in the figure below. For example, the VISA
descriptor is USB0::0x1AB1::0x04CE::DS1T00000006::INSTR. Input it into SHEET1.CELLS(1,2)
(namely the B1 cell in Sheet1). Click the Developer menu and select the Visual Basic option to open
the Microsoft Visual Basic.
4. Select Tools(T) in the Microsoft Visual Basic menu bar and click References.
Select VISA Library in the pop-up dialog box and click OK to refer to the VISA Library.
