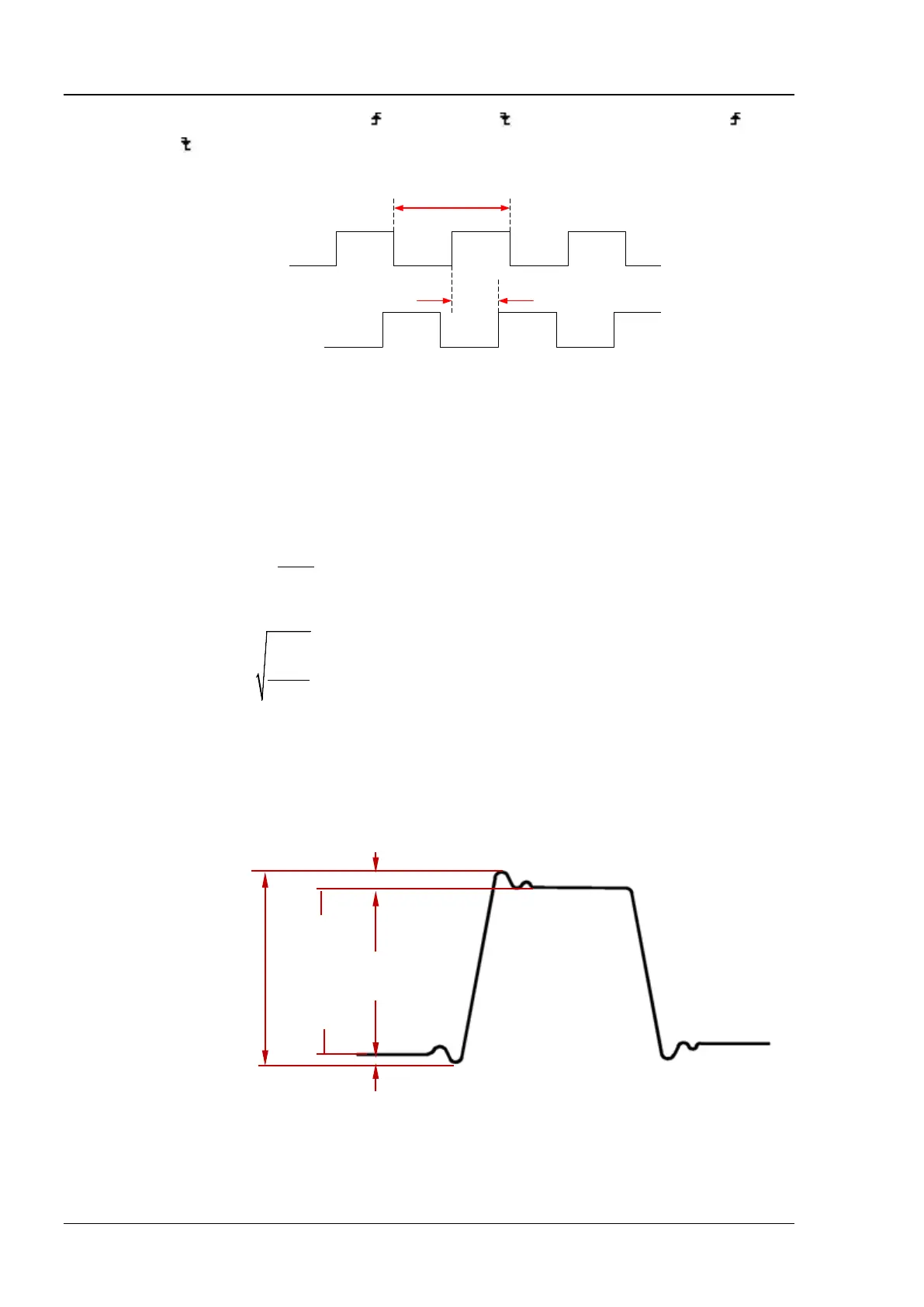

Wherein,
Phase
denotes “Phase 1→2 ” or “Phase 1→2 ”,
Delay
denotes “Delay 1→2 ” or
“Delay 1→2
” and
1Period
denotes the period of source 1.
Source 1
Source 2
Period
Delay
 Voltage Parameters
Vmax:
the voltage value from the highest point of the waveform to the GND.
Vmin:
the voltage value from the lowest point of the waveform to the GND.
Vpp:
the voltage value from the highest point to the lowest point of the waveform.
Vtop:
the voltage value from the flat top of the waveform to the GND.
Vbase:
the voltage value from the flat base of the waveform to the GND.
Vamp:
the voltage value from the top of the waveform to the base of the waveform.
Vavg:
the arithmetic average value on the whole waveform or on the gating area.
i
x
Average
n
=
∑
, wherein,
i
x
is the
ith
point being measured,
n
is the number of
points being measured.
Vrms:
the root mean square value on the whole waveform or the gating area.
2
1
n
i
i
x
RMS
n
=
=
∑
, where,
i
x
is the
ith
point being measured,
n
is the number of
points being measured.
Overshoot:
the ratio of the difference between the maximum value and top value of the waveform
to the amplitude value.
Preshoot:
the ratio of the difference between the minimum value and base value of the waveform
to the amplitude value.
Preshoot
Overshoot
Vamp
Vmax
Vmin
Vpp
Vtop
Vbase
