Chapter 11 Waveform Record RIGOL
MSO1000Z/DS1000Z User’s Guide 11-3
Playback Option

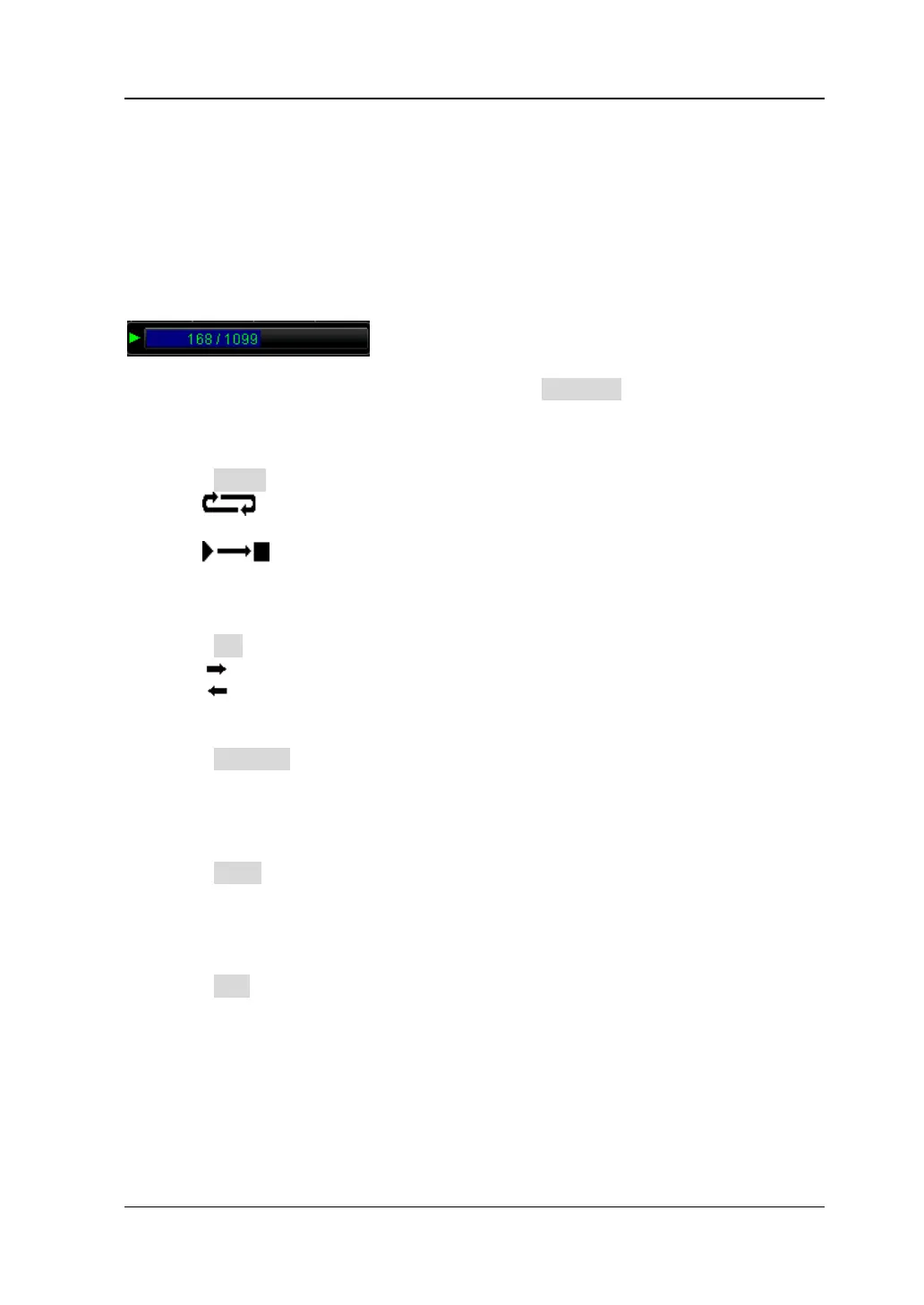

Waveform playback can play back the waveforms currently recorded. During the
playback, the information as shown in the figure below is displayed at the upper right
corner of the screen. The data at the left side of the figure indicates the specific
frame currently displayed on the screen. During the playback, this value would
change continuously. The data at the right side of the figure indicates the maximum
number of frames recorded currently.
Before playing back the waveform, you can press Play Opt to set the playback
parameters.
1. Play Mode
Press Mode to set the playback mode to cycle or single.
: cycle playback. Play from the start frame to the end frame and then
repeat until you stop it manually.
: single playback. Play from the start frame to the end frame and
then stop.
2. Play Direction
Press Dir to set the play direction to positive or negative direction.
: positive direction. Play from the start frame to the end frame.
: negative direction. Play from the end frame to the start frame.
3. Interval
Press Interval to set the time interval of playback. The range availbale is from
100 ns to 10 s and the default is 100 ns. For the setting method, please refer to
the introduction in "
Parameter Setting Method".
4. Start Frame
Press Start to set the start frame of playback. The default is 1 and the
maximum is the maximum number of frames recorded. For the setting method,
please refer to the introduction in "
Parameter Setting Method".
5. End Frame
Press End to set the end frame of the playback. The default is the total number
of frames of the waveform recorded. For the setting method, please refer to the
introduction in "
Parameter Setting Method".
