Chapter 5 To Trigger the Oscilloscope RIGOL

MSO1000Z/DS1000Z User’s Guide 5-17

Duration Trigger

In duration trigger, the instrument identifies a trigger condition by looking for the

duration of a specified pattern. This pattern is a logical "AND" combination of the

channels. Each channel can have a value of high (H), low (L) or don’t care (X). The

instrument triggers when the duration (△T) of this pattern meets the preset time, as

shown in the figure below.

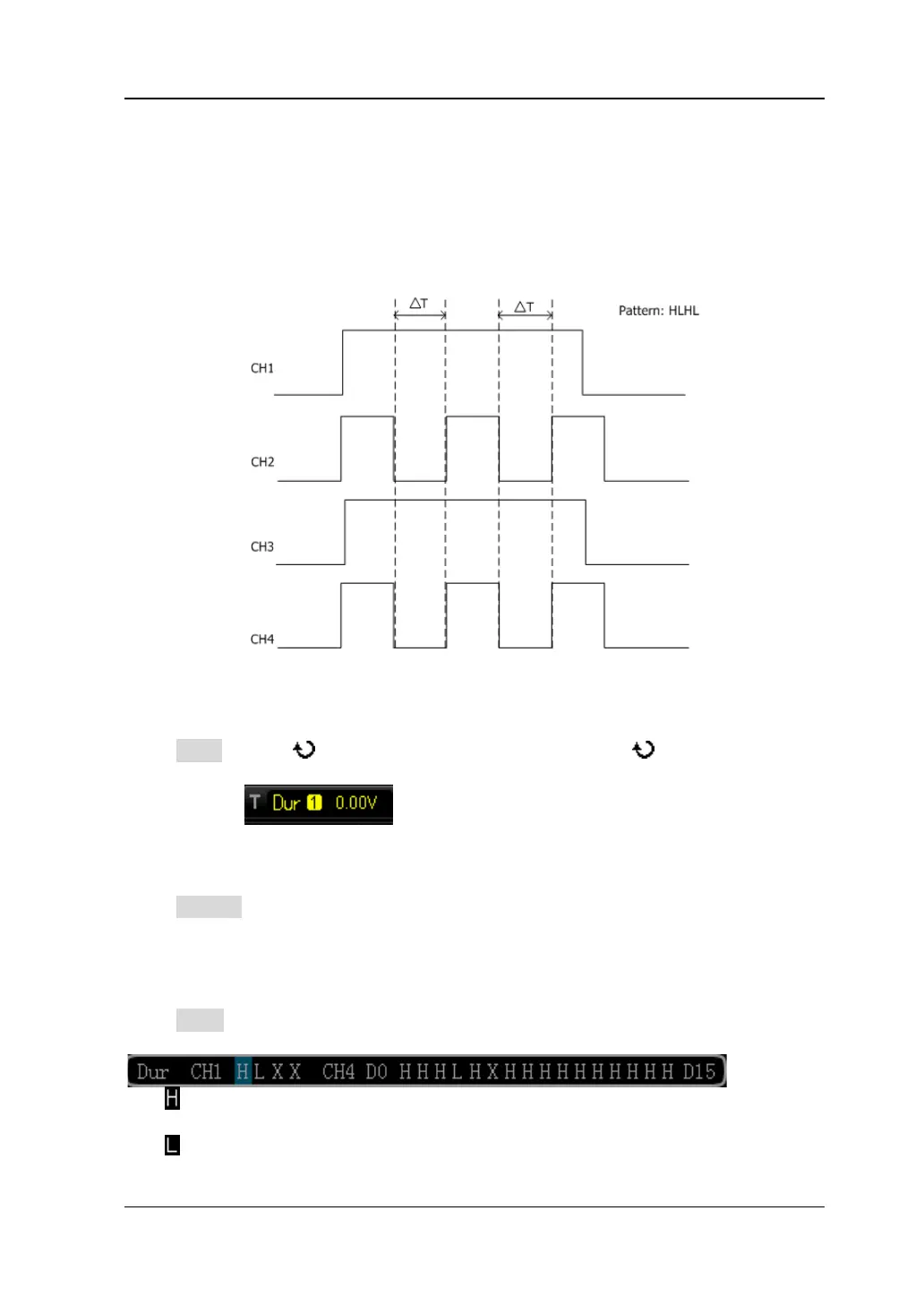

Figure 5-7 Duration Trigger

Trigger Type:

Press Type, rotate to select "Duration" and press down . At this point, the

trigger setting information is displayed at the upper right corner of the screen.

For example,

. The trigger type is duration trigger; the current

trigger source is CH1; the trigger level is 0.00 V.

Source Selection:

Press Source to open the signal source list and select CH1-CH4 or D0-D15. For the

details, please refer to the introduction in "

Trigger Source". The current trigger

source is displayed at the upper right corner of the screen.

Pattern Setting:

Press Code to set the pattern of the current channel. At this point, the pattern

setting area (as shown in the figure below) is displayed at the bottom of the screen.



: set the pattern of the channel selected to "H", namely the voltage level is

higher than the trigger level of the channel.



: set the pattern of the channel selected to "L", namely the voltage level is
