Rigol DS1054Z User Manual

RIGOL Chapter 1 Quick Start
1-26 MSO1000Z/DS1000Z User’s Guide
To Use the Built-in Help System
The help system of this oscilloscope provides instructions for all the function keys
(including the menu keys) at the front panel. Press Help to open the help interface
and press again to close the interface. The help interface mainly consists of two parts.
The left are "Help Options". The right is the "Help Display Area".

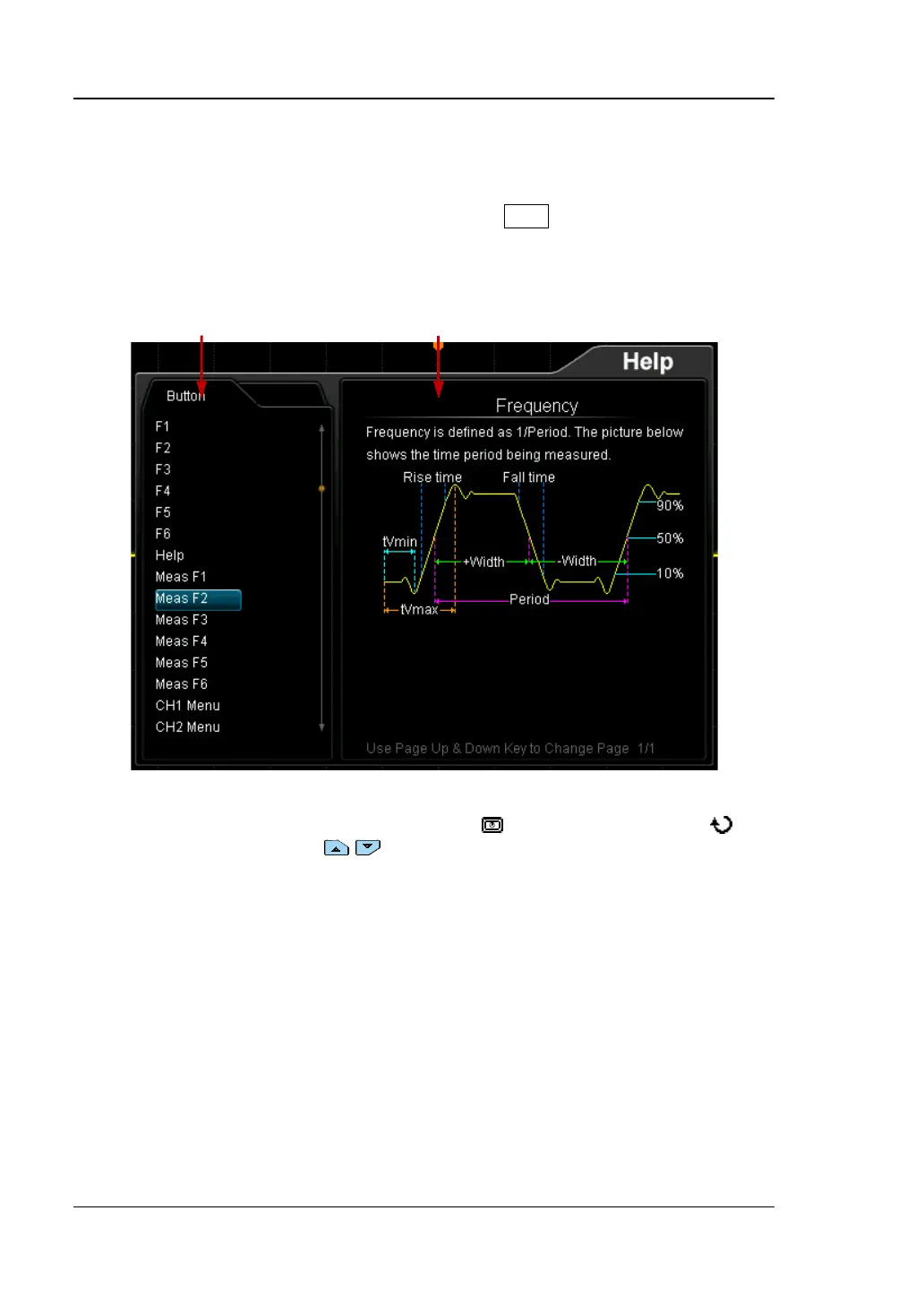

Figure 1-15 Help Interface
You can press the button (except the power key
, the multifunction knob and
the menu page up/down key
/ ) directly at the front panel to get the
corresponding help information in the "Help Display Area".
Help Options Help Display Area
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com

Rigol DS1054Z Specifications

General

Channels	4
Bandwidth	50 MHz
Sample Rate	1 GSa/s
Memory Depth	24 Mpts
Display	7 inch TFT LCD (800x480)
Vertical Sensitivity	1 mV/div to 10 V/div
Time Base Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Trigger Types	Edge, Pulse, Video, Slope
Connectivity	USB Host, USB Device, LAN
Input Impedance	1 MΩ
Power Supply	100-240 VAC, 45-440 Hz
