Rigol DS1102E Service Guide

Chapter 2 Prepare for Use RIGOL
Service Guide for DS1000E, DS1000D Series
2-5

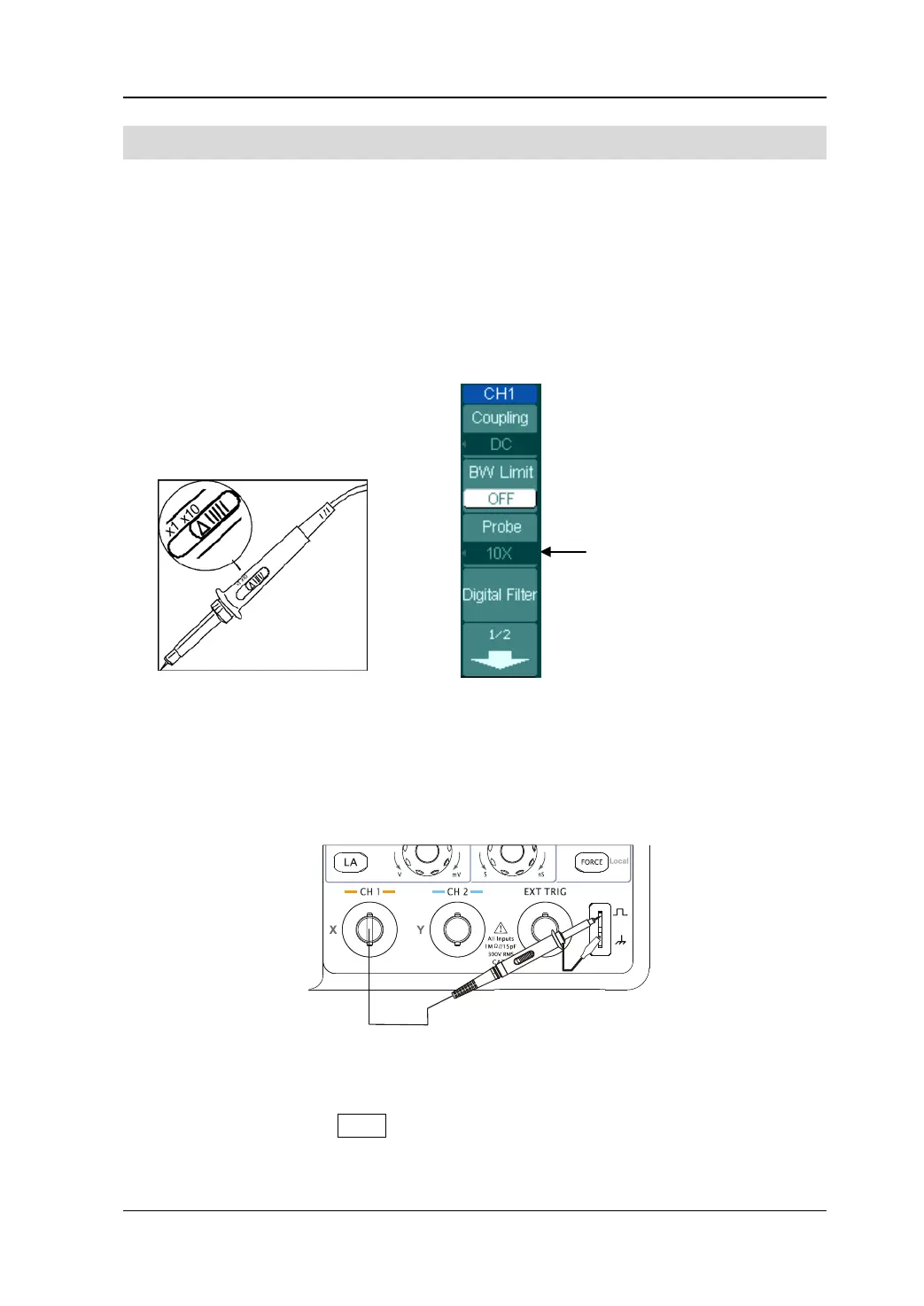

Probe Compensation
You are suggested to compensate probe before first using so as to match its
characteristics with oscilloscope. Measurement error may be generated without
compensation or because of deviation compensation. To compensate the probe,
follow the steps below.
1. Set both the attenuation switch of the probe and the probe scale in the menu to
10X.
Figure 2-5 Set the probe attenuation quotient and switch
2. Connect the probe to CH1. And attach both the probe tip and ground lead to the
connector of probe compensator.
Figure 2-6 Connect the probe compensator
3. Open CH1 and press AUTO button after a few seconds, a square wave will be
displayed (1 kHz, approximately 3 V peak- to- peak). Check if the compensation is
Probe Attenuation Quotient

Rigol DS1102E Specifications

General

Bandwidth	100 MHz
Sample Rate	1 GSa/s
Channels	2
Memory Depth	1 Mpts
Vertical Sensitivity	2 mV/div to 10 V/div
Trigger Modes	Edge, Pulse, Video, Slope, Alternate
Vertical Resolution	8 bits
Input Coupling	DC, AC, GND
Power Supply	100-240 V AC, 45-440 Hz
Display	5.7 inch TFT LCD
Display Resolution	320 x 234
Interfaces	USB Host, USB Device
Input Impedance	1 MΩ ±2%, 15 pF ±3 pF
Dimensions	303 mm x 154 mm x 133 mm
