Rigol DS1102E Service Guide

RIGOL Chapter 5 Disassembly and Assembly
Service Guide for DS1000E, DS1000D Series
5-6
Disassemble and Assemble the Power Board and
the Fan

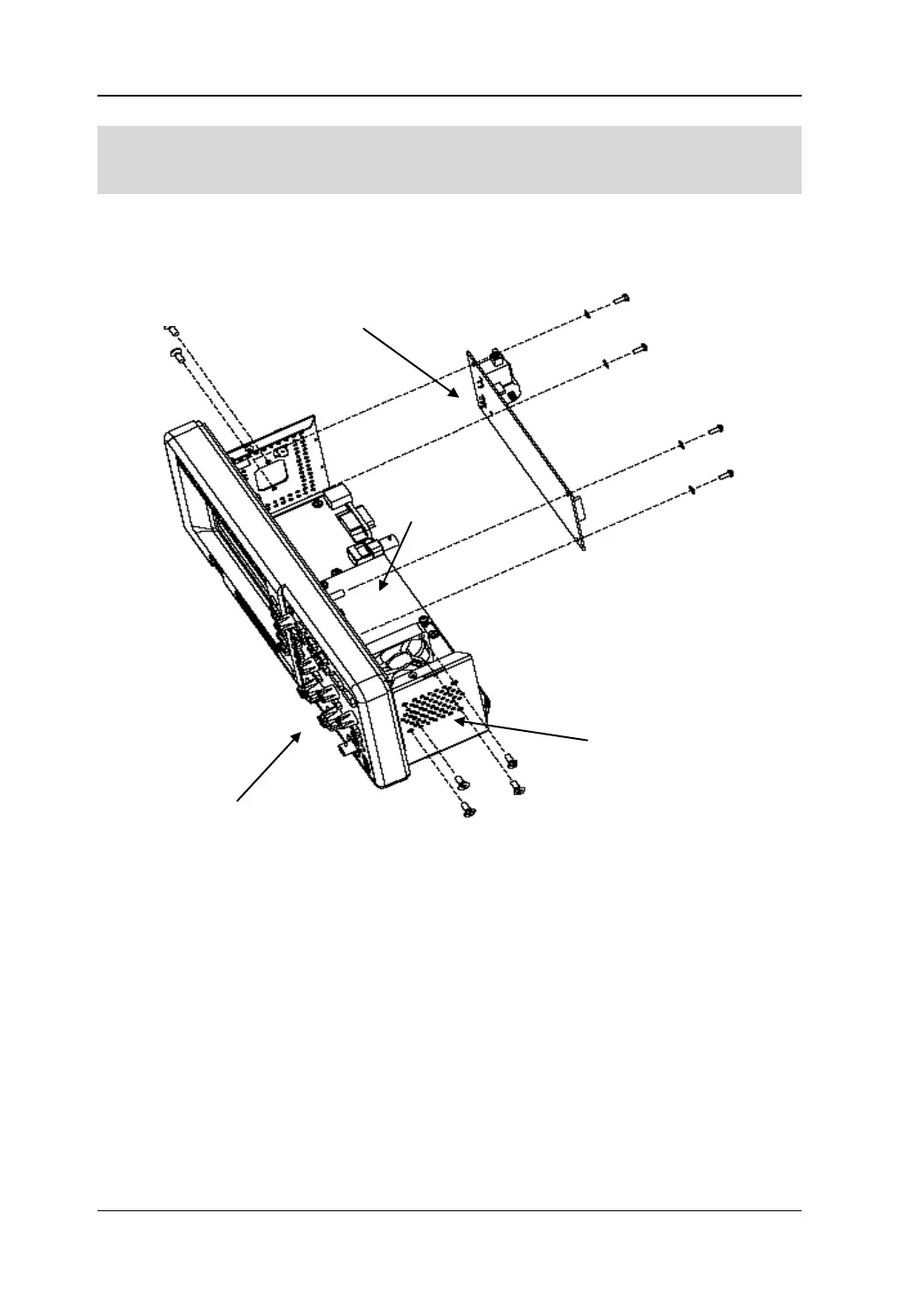

Figure 5-4 Disassemble and assemble the power board and the fan
Parts Explanations:
⑤ Small bolts for fixing the power board (M3*6 Pan head Torx recess composite
machine screws): 3
⑥ Big bolts for fixing the power board (M4*8 Pan head Torx recess machine screws):
1
⑦ Bolts (M3*8 Pan head Torx recess Drilling tapping screws) and nuts (M3 hexagon
nut with locking plate) for linking up the power board and shell: 2 pairs
⑧ Bolts for fixing the fan (M5*8 Pan head Torx recess machine screws): 4
Disassemble steps:
1. Pull out the power line 12pin from the J2 interface of mainboard and the power
⑧
⑦
⑦
⑧
⑤
⑥
⑤
⑤
⑧
⑧
Power Board
Fan
Mainboard
Panel

Rigol DS1102E Specifications

General

Bandwidth	100 MHz
Sample Rate	1 GSa/s
Channels	2
Memory Depth	1 Mpts
Vertical Sensitivity	2 mV/div to 10 V/div
Trigger Modes	Edge, Pulse, Video, Slope, Alternate
Vertical Resolution	8 bits
Input Coupling	DC, AC, GND
Power Supply	100-240 V AC, 45-440 Hz
Display	5.7 inch TFT LCD
Display Resolution	320 x 234
Interfaces	USB Host, USB Device
Input Impedance	1 MΩ ±2%, 15 pF ±3 pF
Dimensions	303 mm x 154 mm x 133 mm
