Chapter 2 Prepare for Use RIGOL
Service Guide for DS1000E, DS1000D Series
2-7
Digital Probe (Only for DS1000D Series)
DS1000D series provide sixteen digital channels. Take the steps below to connect
instrument and test points by digital probes:
1. Switch off power supply of the device under test if necessary to avoid short circuit.
Since no voltage is applied to the leads at this step, you may keep the
oscilloscope on.
2. Connect one terminal of the flat cable FC1868 to the Logic Analyzer Input;
connect the other end to Logic Head LH1116. An identifier is located on each end
of the flat cable; it can only be connected in one way. It is unnecessary to switch
off power supply of your oscilloscope when connecting the cable.

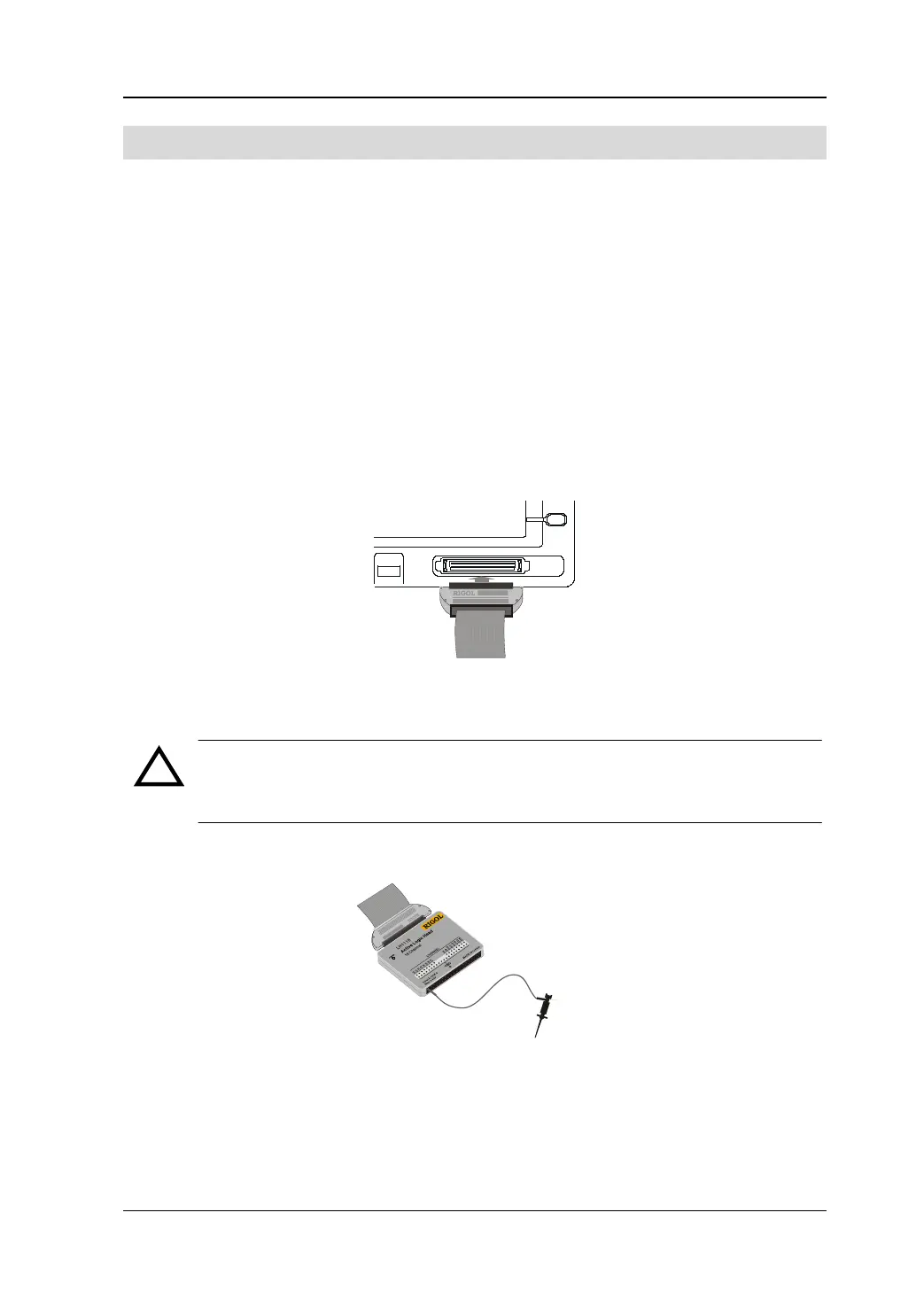

Figure 2-8 Connect the digital probes to oscilloscope
CAUTION
Use only FC1868, LH1116, TC1100 and LC1150 made by RIGOL for
specified DS1000D series.
3. Connect a test clip to one lead wire; make sure it’s connection good.
Figure 2-9 Test clip of digital probe
4. Connect the test clip to the ground.
Test clip
!
