Rigol DS1102E Service Guide

Chapter 3 Performance Test RIGOL
Service Guide for DS1000E, DS1000D Series
3-7

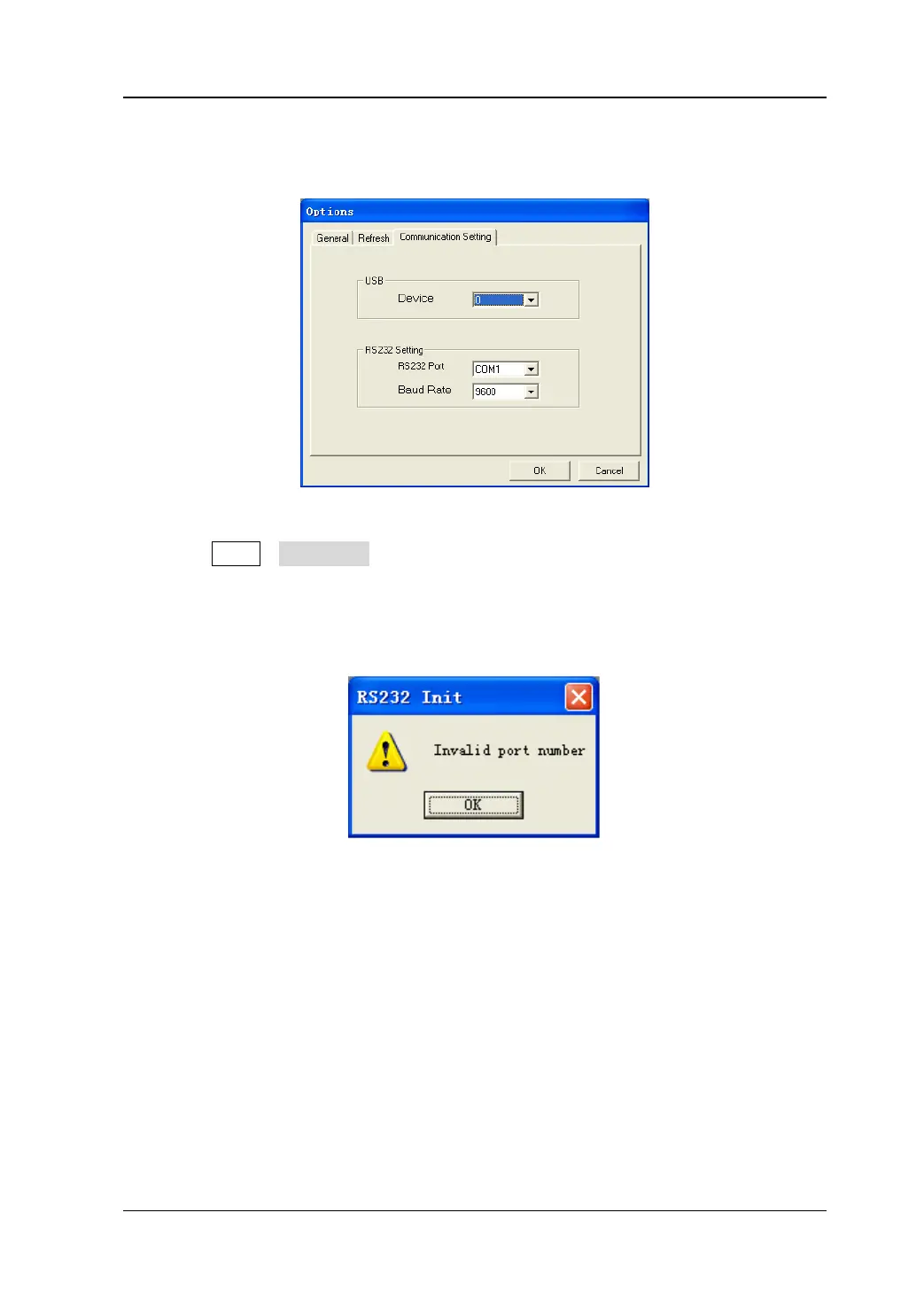

4. Click Communication Setting and setup the communication interface under
using and the baud rate.
Figure 3-8 RS-232 interface setting
5. Press Utility→I/O Setting and set the baud rate as the same value in Ultrascope.
6. Click Tools→Connect to Oscilloscope; If successful, the corresponding
reminder light at the upper right corner of the software will be changed from red
to blue; otherwise, a prompting message will be appeared as below.
Figure 3-9 Fail prompt of RS-232 interface connection

Rigol DS1102E Specifications

General

Bandwidth	100 MHz
Sample Rate	1 GSa/s
Channels	2
Memory Depth	1 Mpts
Vertical Sensitivity	2 mV/div to 10 V/div
Trigger Modes	Edge, Pulse, Video, Slope, Alternate
Vertical Resolution	8 bits
Input Coupling	DC, AC, GND
Power Supply	100-240 V AC, 45-440 Hz
Display	5.7 inch TFT LCD
Display Resolution	320 x 234
Interfaces	USB Host, USB Device
Input Impedance	1 MΩ ±2%, 15 pF ±3 pF
Dimensions	303 mm x 154 mm x 133 mm
