Rigol DS1102E Service Guide

RIGOL Chapter 2 Prepare for Use
Service Guide for DS1000E, DS1000D Series
2-6
correct in accordance with the shape of waveform.

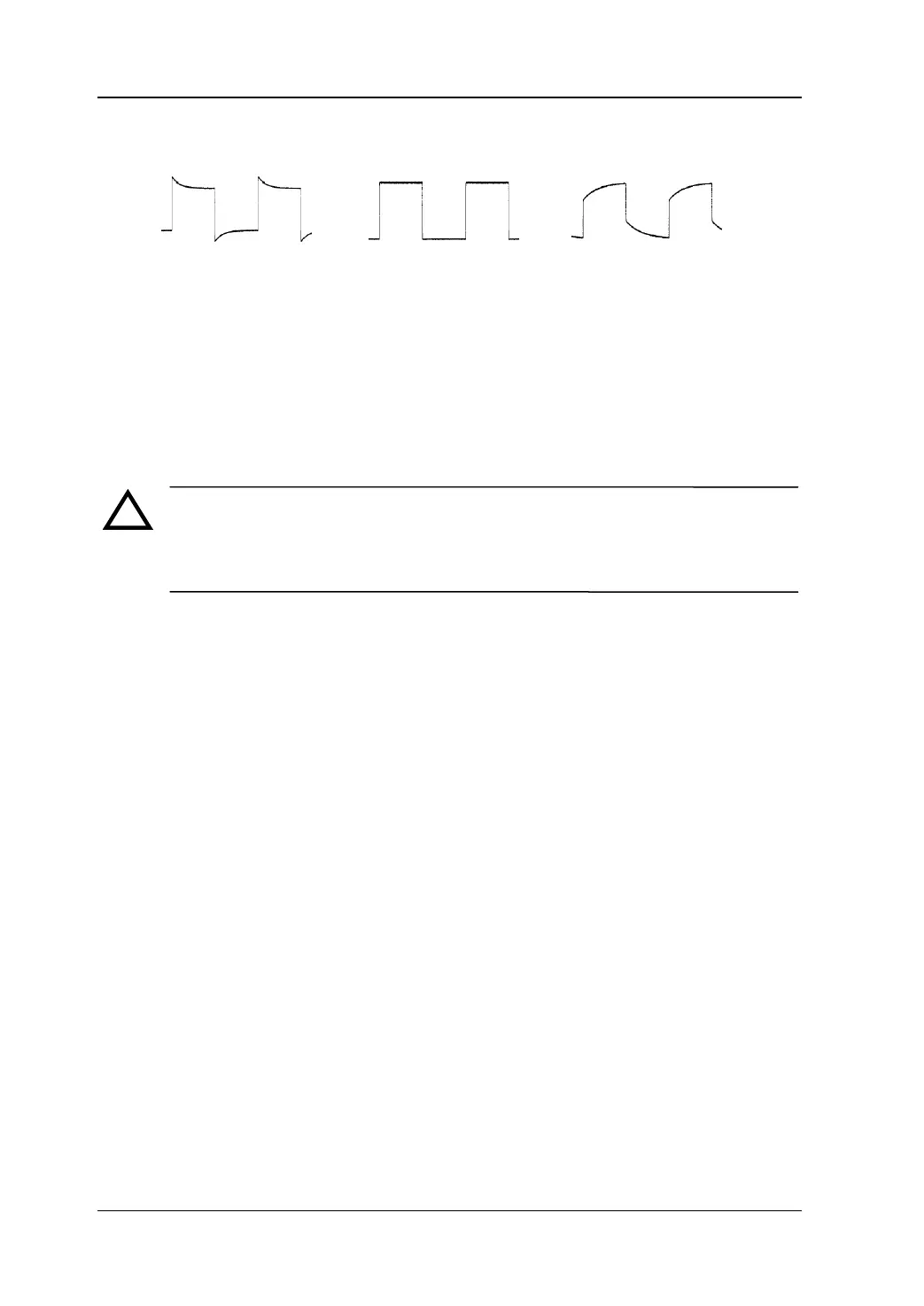

Over compensation Correct Compensation Under Compensation
Figure 2-7 Waveform compensation
4. If necessary, use a non-metallic screwdriver to adjust the variable capacitor of the
probe until a “Correct Compensation” wave displayed on the screen.
5. Continue in the same way to check CH2.
WARNING
To avoid electric shock while using the probe, be sure the perfection of the
insulated cable, and do not touch the metallic portions of the probe head
while it is connected with a high-voltage power supply.
!

Rigol DS1102E Specifications

General

Bandwidth	100 MHz
Sample Rate	1 GSa/s
Channels	2
Memory Depth	1 Mpts
Vertical Sensitivity	2 mV/div to 10 V/div
Trigger Modes	Edge, Pulse, Video, Slope, Alternate
Vertical Resolution	8 bits
Input Coupling	DC, AC, GND
Power Supply	100-240 V AC, 45-440 Hz
Display	5.7 inch TFT LCD
Display Resolution	320 x 234
Interfaces	USB Host, USB Device
Input Impedance	1 MΩ ±2%, 15 pF ±3 pF
Dimensions	303 mm x 154 mm x 133 mm
