:WAVeform Commands
The :WAVeform commands are used to read the waveform data and its related settings. :WAVeform:MODE
is used to set the reading mode of the waveform data. In different mode, the definition of each parameter
is different, as shown in Figure 2-1 and Figure 2-2.

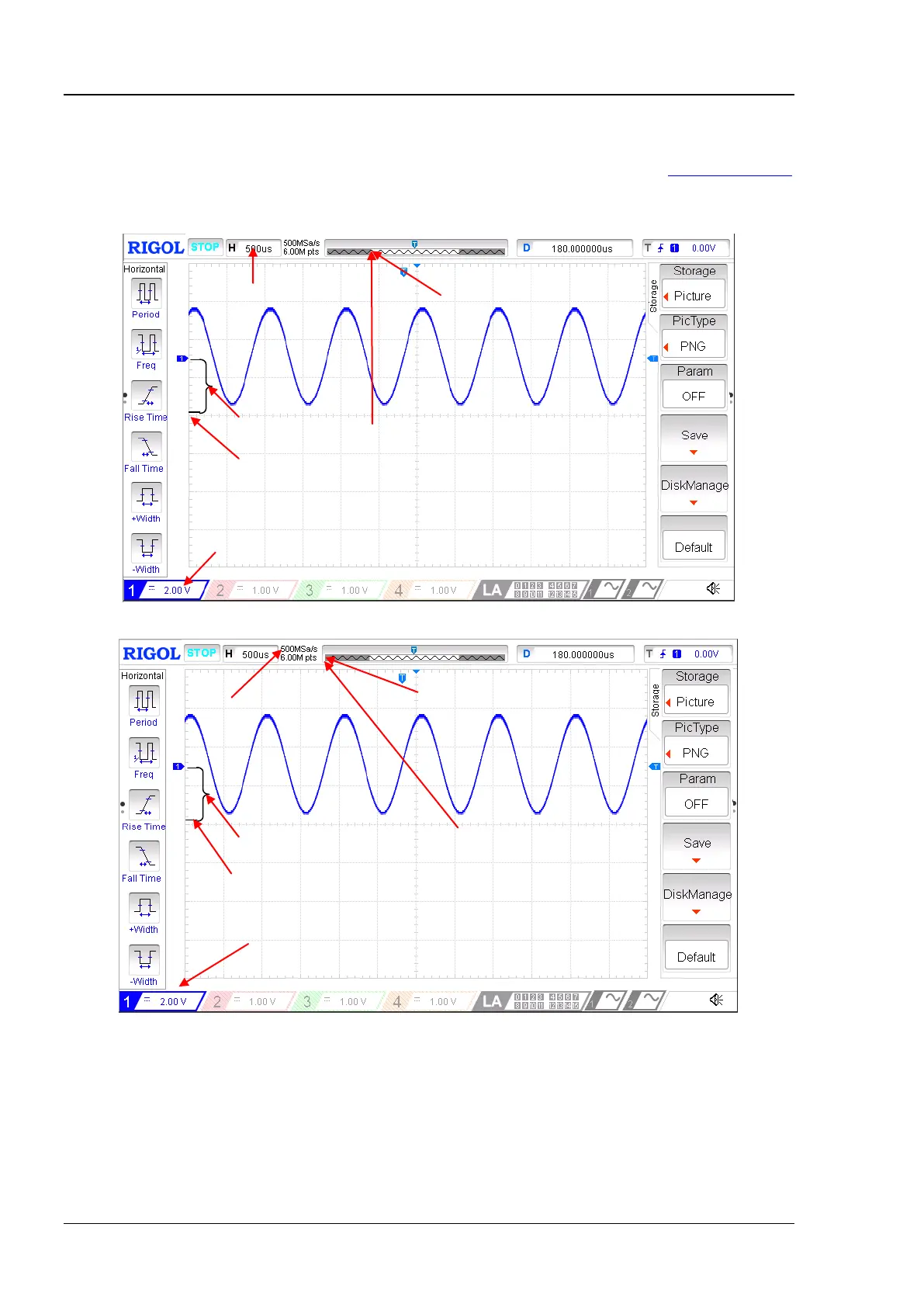

Figure 2-1 Parameter Definitions in NORMAL Mode
Figure 2-2 Paramter Definitions in RAW Mode
Note
[1]
: In RAW mode, YINCrement is related to the Verticalscale of the internal waveform and the Verticalscale
currently selected.
YINCrement=Verticalscale/25
