RIGOL Chapter 1 Quick Start
1-6 DSG800 User's Guide

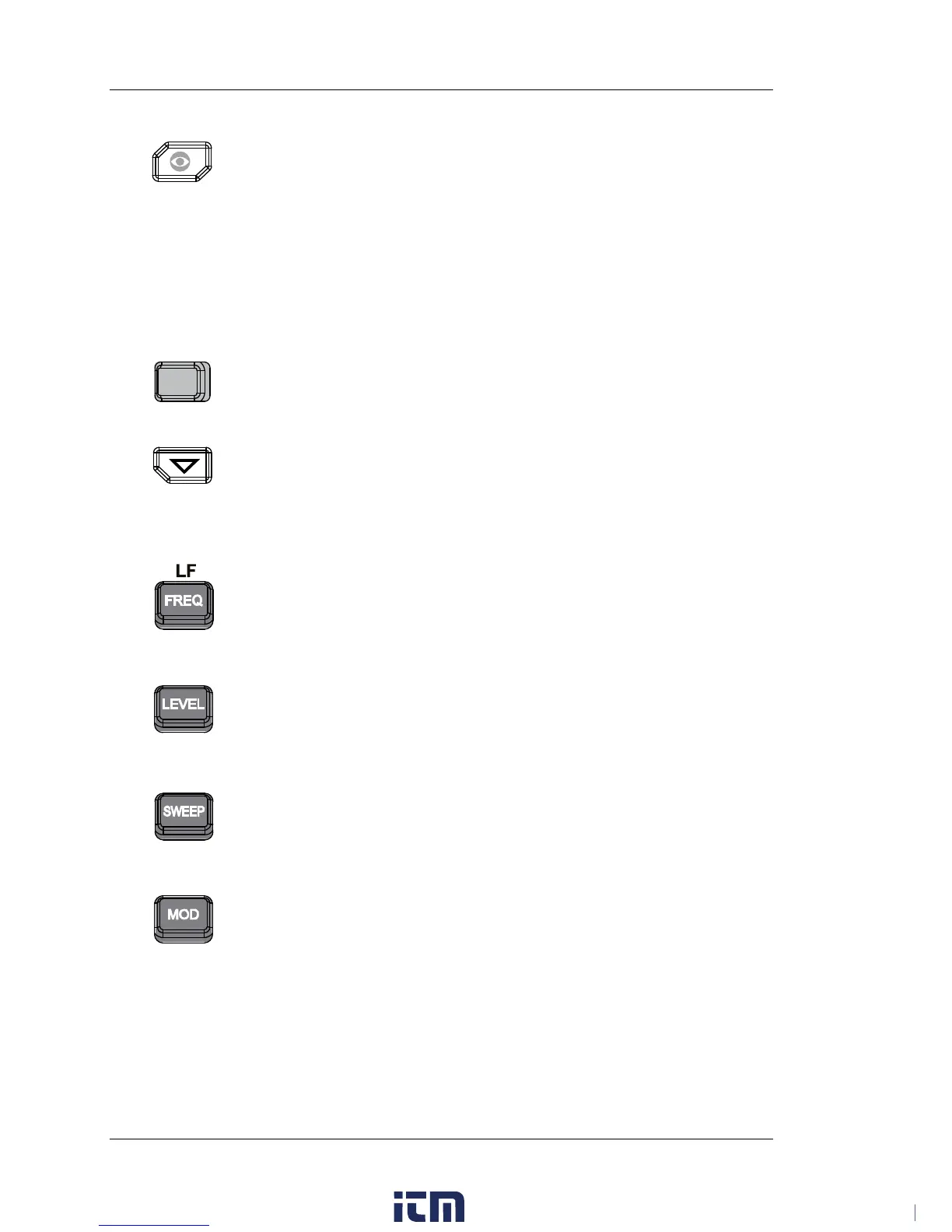

3. Menu Control Keys
Display switching key. In the menu page of any function,
you can press this key to open the parameter information
display interface of the current function. At this point, you
can use the knob or direction keys to switch the parameter
tabs to view the parameter information of different
functions. Pressing this key again will switch to the function
menu corresponding to the parameter tab currently
selected. In addition, you can press any function key to exit
the parameter information display interface.
Menu softkeys corresponding to the menus displayed at the
left of the softkeys respectively. Pressing the softkey will
activate the corresponding menu.
Menu page up/down key.
4. Function Keys
Set the frequency parameters of the RF output signal as
well as the related parameters of LF output. For the
detailed information, refer to "
To Set the Frequency/LF
Parameters".
Set the amplitude parameters of the RF output signal and
provide the flatness calibration function. For the detailed
information, refer to "
To Set the Amplitude
Parameters
".
Set the sweep type, sweep manner, sweep mode and etc.
For the detailed information, refer to "Sweep".
Set the related parameters of amplitude modulation (AM),
frequency modulation (FM), phase modulation (ØM), pulse
modulation and pulse generator. For the detailed
information, refer to "
Modulation".
