Chapter 1 Quick Start RIGOL
DSG800 User's Guide 1-11
Rear Panel Overview

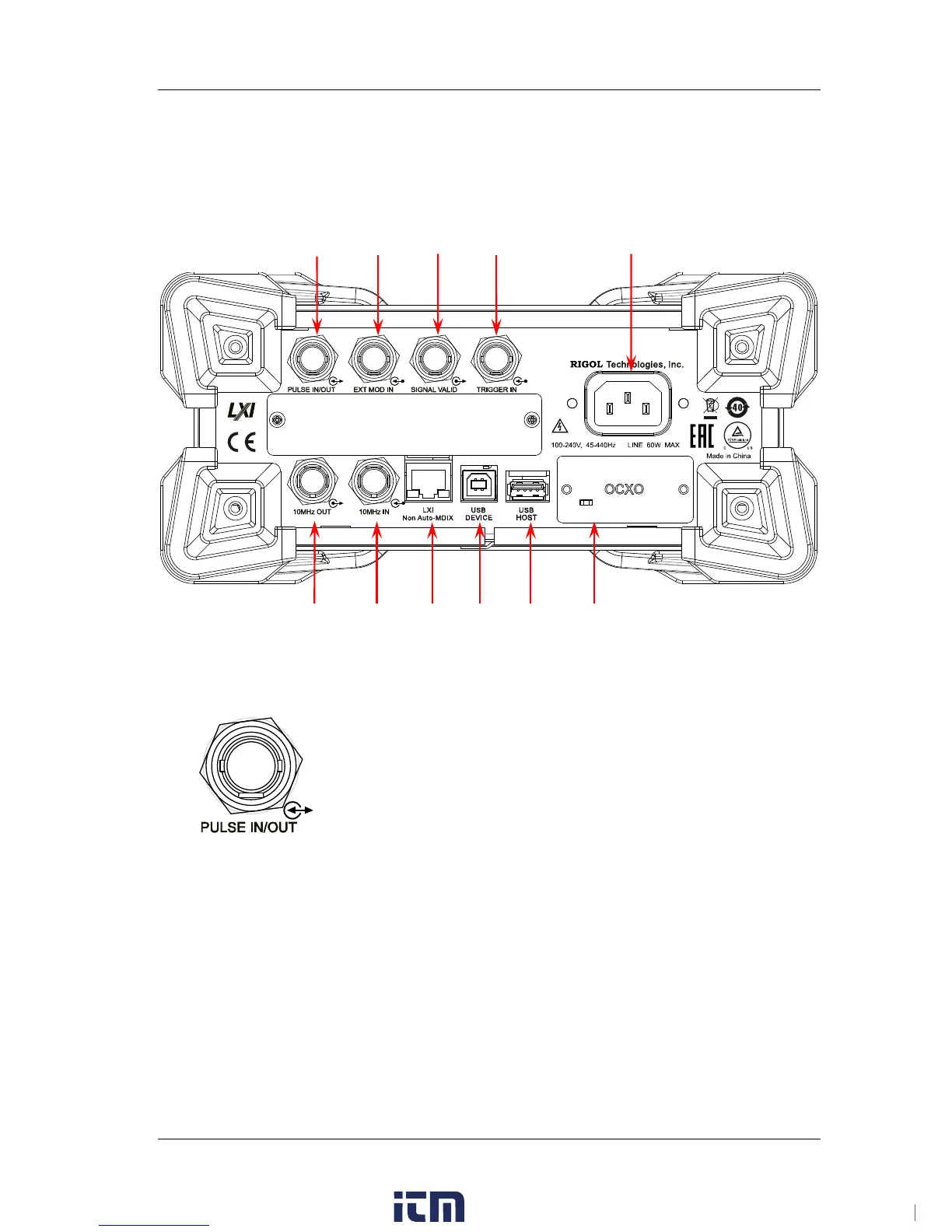

The rear panel of DSG800 series RF signal generator is as shown in the figure below.
You can click the number in the figure to view the corresponding introduction.
1 2 3 4 5
6 7 8 9 10 11
Figure 1-5 Rear Panel
1. Pulse Signal Input/Output Connector
The function of this connector is determined by the
current working mode of pulse modulation.
PULSE IN:
When the pulse modulation source is "Ext", this
connector is used to input the external pulse signal.
PULSE OUT:
When the pulse modulation source is "Int" and the pulse
output is turned on, this connector is used to output the
pulse signal generated by the internal generator. This
output signal is related to the pulse "Mode" and can be
set to "Single" or "Train".
