Chapter 1 Quick Start RIGOL
DSG800 User's Guide 1-13

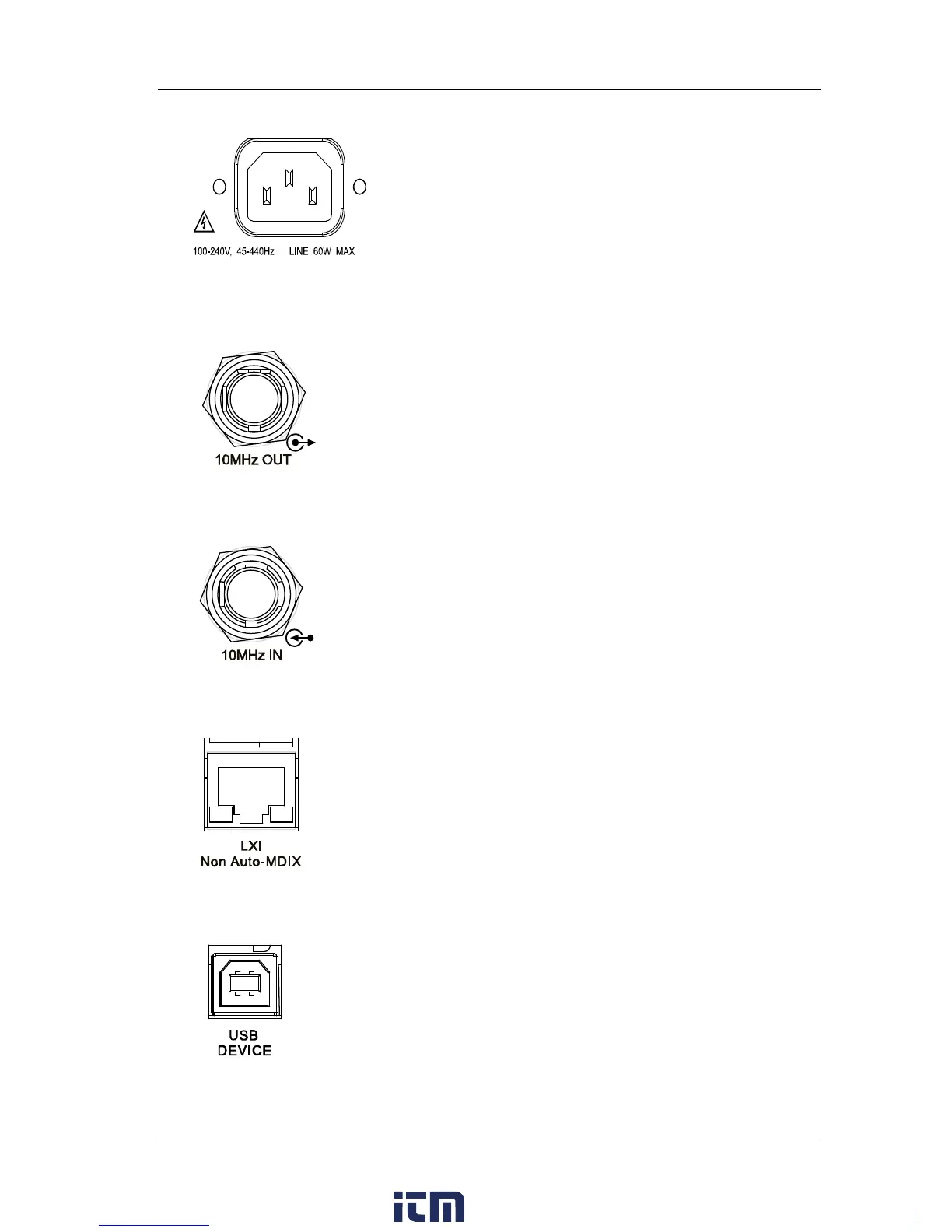

5. Power Input Connector
Power input connector.
This RF signal generator can accept 100 V to 240
V, 45 Hz to 440 Hz AC power supplies. The power
consumption of the instrument cannot exceed 60
W.
6. Reference Signal Output Connector
It is used to output the internal 10 MHz reference
clock signal which is used to synchronize the
generator with other instruments. For more
information about the specifications of the clock
signal output from this connector, refer to the data
sheet of this product.
7. Reference Signal Input Connector
It is used to input the external 10 MHz reference
clock signal which is used to synchronize the
generator with other instruments. For more
information about the specifications of the external
clock signal input from this connector, refer to the
data sheet of this product.
8. LAN
The instrument complies with LXI Core 2011
Device standard. It supports WebServer, Socket
and other remote control modes.
This interface is used to connect the RF signal
generator to the PC or network for remote control.
9. USB DEVICE
The instrument complies with USBTMC class
protocol.
This interface is used to connect the PC for remote
control.
