The format of the train list file loaded is as shown in the table below.
SN
[1]
OnTime
[2]
OffTime
[3]
Repeat
[4]
DwellTime
[5]
1
4.00 ms
5.00 ms
2
18.00 ms
2
2.00 ms
4.00 ms
5
30.00 ms
3
15.55 ms
100.5 us
2
31.30 ms
Note
[1]
: The number of the pulse set.
Note
[2]
: The duration of the high level corresponding to the pulse set.
Note
[3]
: The duration of the low level corresponding to the pulse set.
Note
[4]
: The number of repetitions of the pulse set.
Note
[5]
: The duration of the pulse currently set.

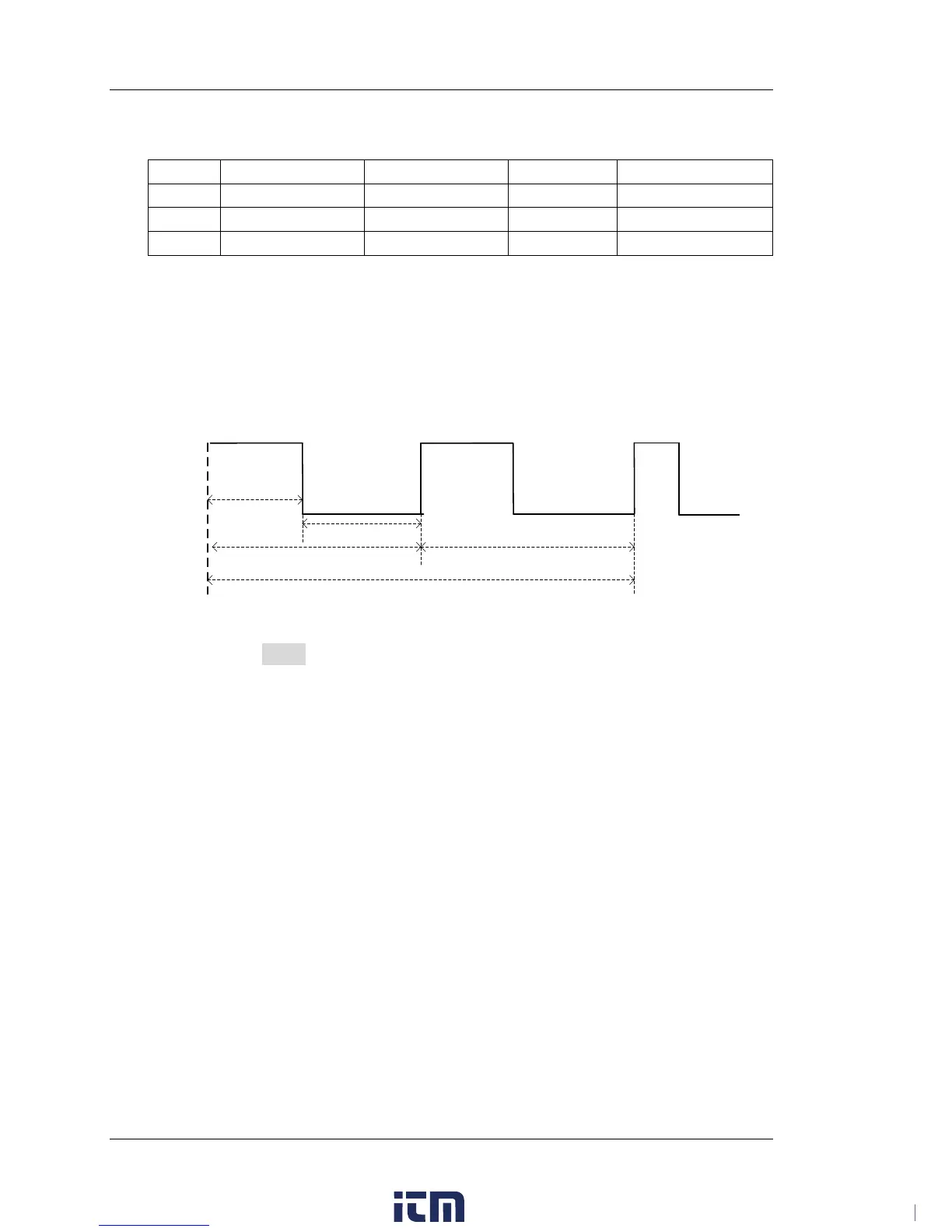

The pulse train (the number of repetitions of pulse 1 is 2) loaded is as shown in
the figure below.
OnTime
OffTime
… …
DwellTime
Repeate: 1
Repeate: 2
 View the list
You can press View to view the information of the train list currently loaded.
Pressing any key (except the direction keys and knob) at the front panel will
return to the train list menu.
Note: This menu is only valid after a train list file is loaded.
Tip: To load or view the train list, you need to install the option DSG800-PUG. For the
installation methods, refer to "License".
