"Level" or "Freq & Lev" and the sweep direction is "Fwd".
—
: downward sweep label. It is displayed when the sweep manner is
"Level" or "Freq & Lev" and the sweep direction is "Down".
—
: amplitude sweep progress bar. It is displayed when the
sweep manner is "Level" or "Freq & Lev".

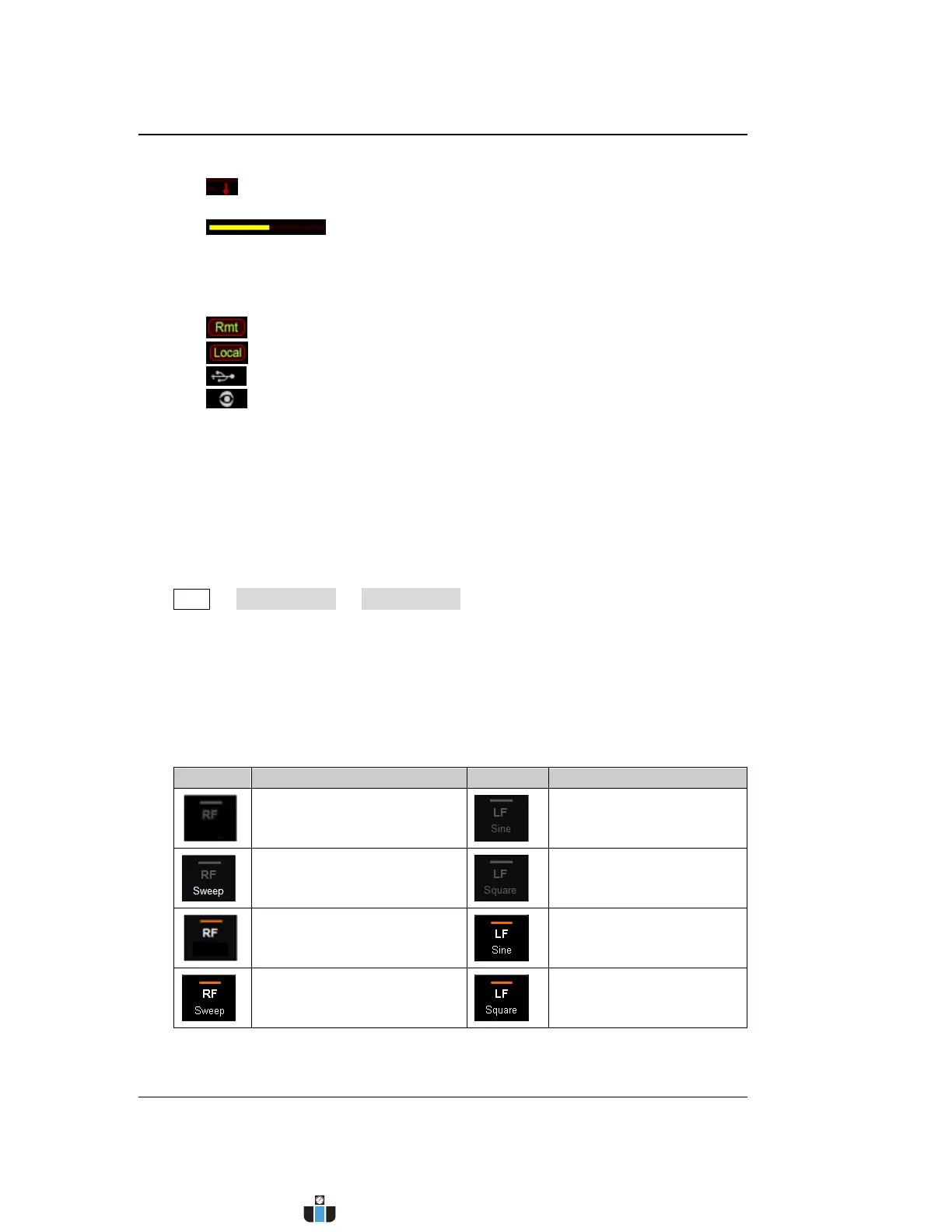

3. Status Bar
Indicate the current system states of the RF signal generator.
—
: the RF signal generator is working in the remote control mode.
—
: the RF signal generator is working in the local operation mode.
—
: displayed when a USB storage device is detected.
—
: displayed when the instrument parameter information interface is
opened.
4. Menu Display Area
The menu items displayed in this area correspond to the softkeys at the right of
the screen respectively. Pressing any softkey can enable the corresponding
menu function.
5. Message Display Area
Display the operation error messages and prompt messages. You can press
Syst  Information  System Msg to view the messages. When multiple
messages are generated, you can use the arrow keys or knob to select the
desired message.
6. Function Status Area
Display the current states of the functions of the RF signal generator. The status
icons that might be displayed in the function status area are as shown in the
table below.
Icon
Explanation
Icon
Explanation
The RF output is not turned
on and no sweep manner is
selected.
The LF output is not
turned on and Sine
waveform is selected.
The RF output is not turned
on and only a single sweep
manner is selected.
The LF output is not
turned on and Square
waveform is selected.
The RF output is turned on
and no sweep manner is
selected.
The LF output is turned
on and Sine waveform is
selected.
The RF output is turned on
and only a single sweep
manner is selected.
The LF output is turned
on and Square waveform
is selected.
