To Prepare for Operation
To Adjust the Supporting Legs
Adjust the supporting legs properly to use them as stands to tilt the oscilloscope
upwards for stable placement of the instrument as well as easier operation and
observation of the instrument.

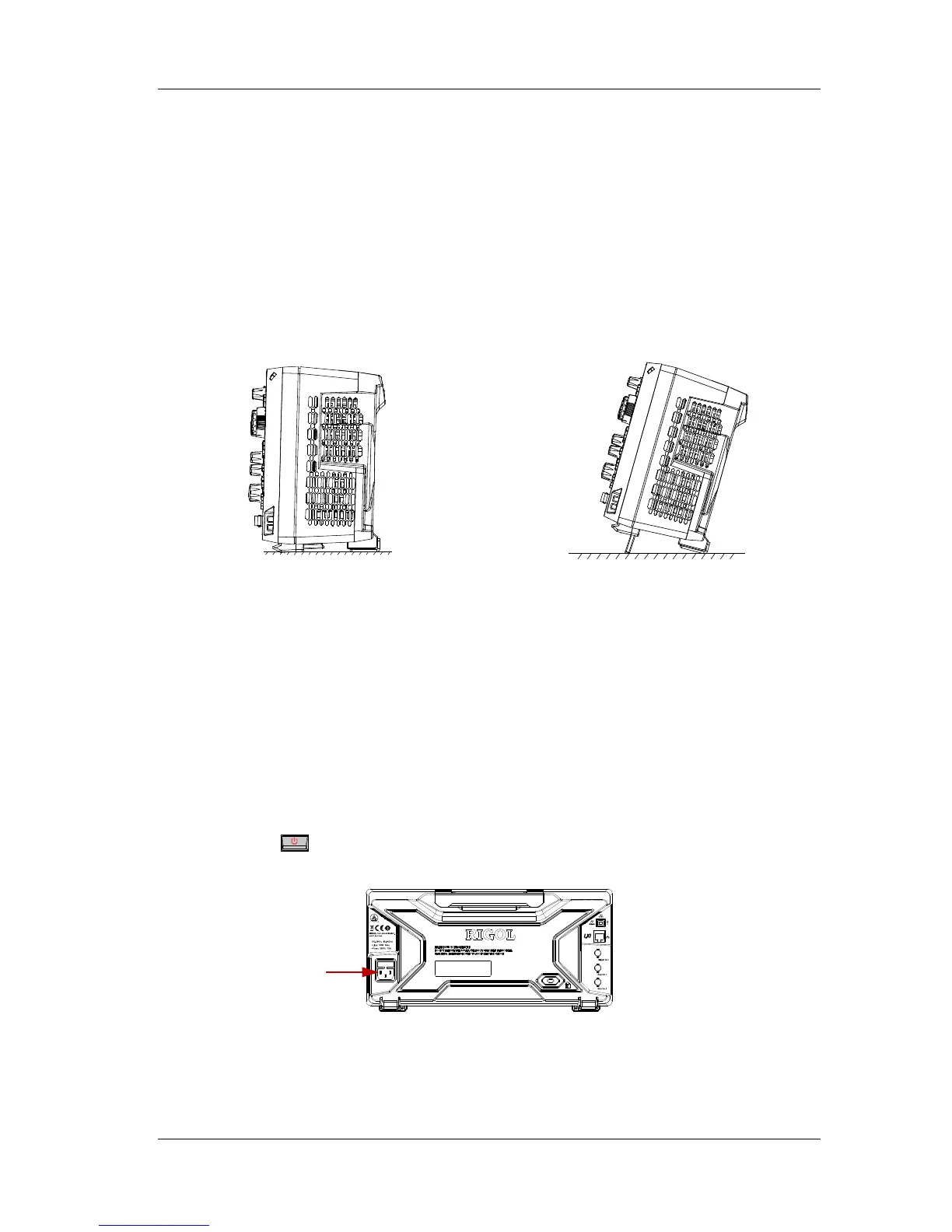

Figure 3 To Adjust the Supporting Legs
To Connect to AC Power Supply
This oscilloscope can accept 100-240 V, 45-440 Hz AC power supply. Please use the
power cord supplied with the accessories to connect the oscilloscope to the power
supply as shown in the figure below. At this point, the oscilloscope is energized and
the power key
at the lower-left corner of the front panel is in breathing state.
Figure 4 To Connect to AC Power Supply
Power Socket
