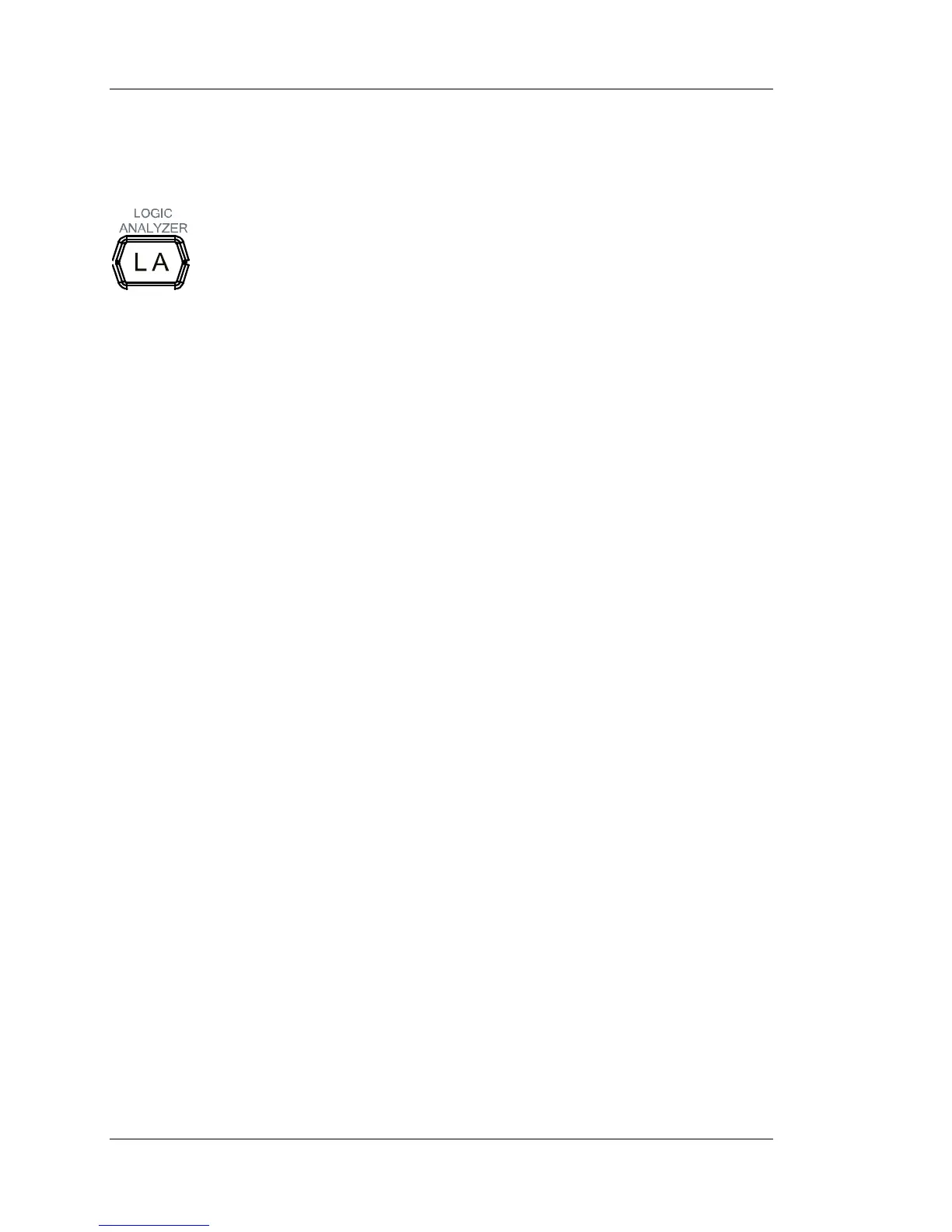

Logic Analyzer
Press this key to open the logic analyzer control menu. You can turn
on or off any channel or channel group, modify the display size of
the digital channel, modify the logic threshold of the digital channel
as well as group the 16 digital channels and display them as a bus.
You can also set a label for each digital channel.
Note: This function is only applicable to the MSO2000A and
MSO2000A-S models oscilloscopes.
