MSO2000A/DS2000A Quick Guide
19
User Interface
MSO2000A/DS2000A provides 8.0 inch, WVGA (800*480) 160,000 color TFT LCD.
What is worth mentioning is that the 14-grid ultra-wide screen enables you to view
“longer” waveform.

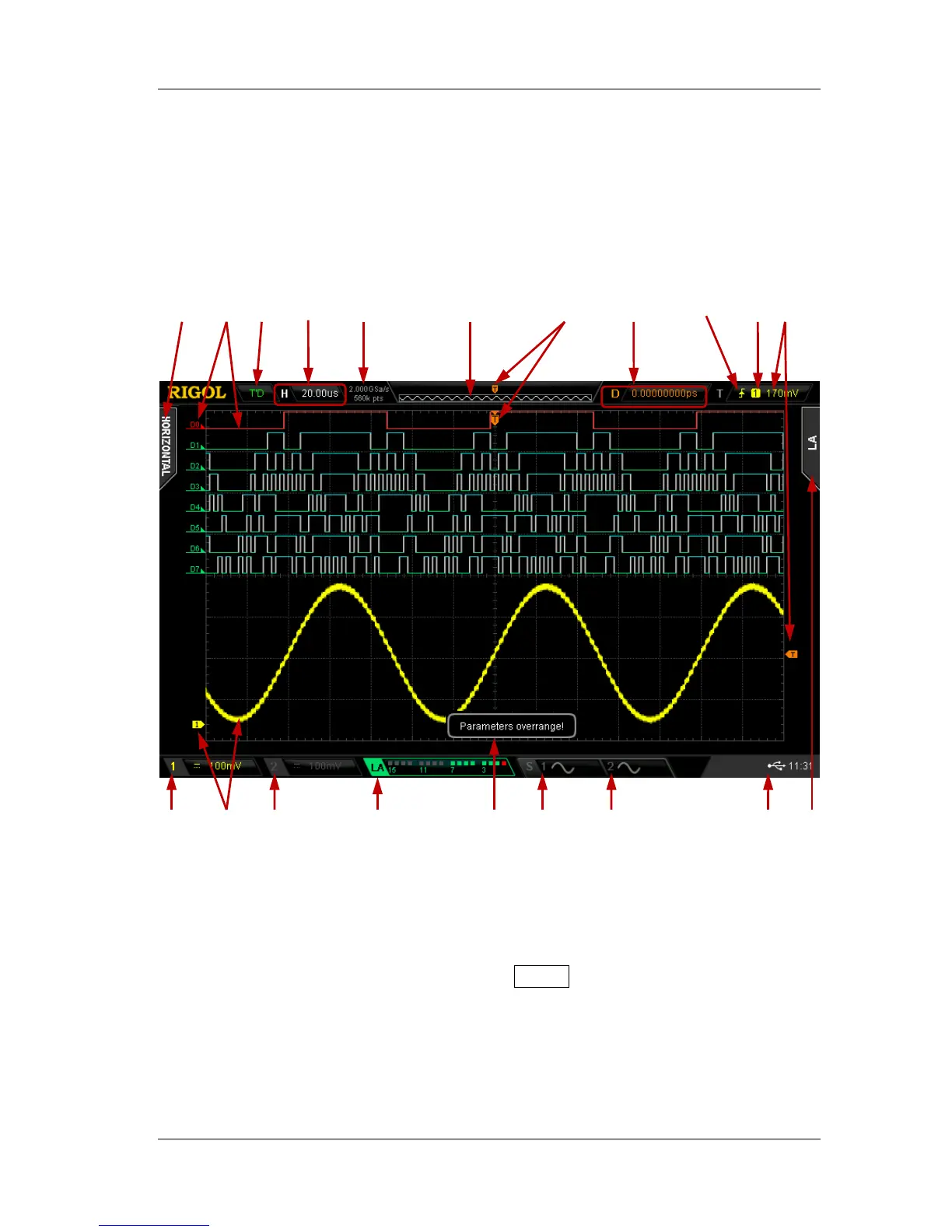

Figure 12 User Interface
1. Auto Measurement Items
Provide 16 horizontal (HORIZONTAL) and 13 vertical (VERTICAL) measurement
parameters. Press the softkey at the left of the screen to activate the
corresponding measurement item. Press MENU continuously to switch between
the horizontal and vertical parameters.
12 13 14 15 16 17 18 19 20
1 2 3 4 5 6 7 8 9 10 11
