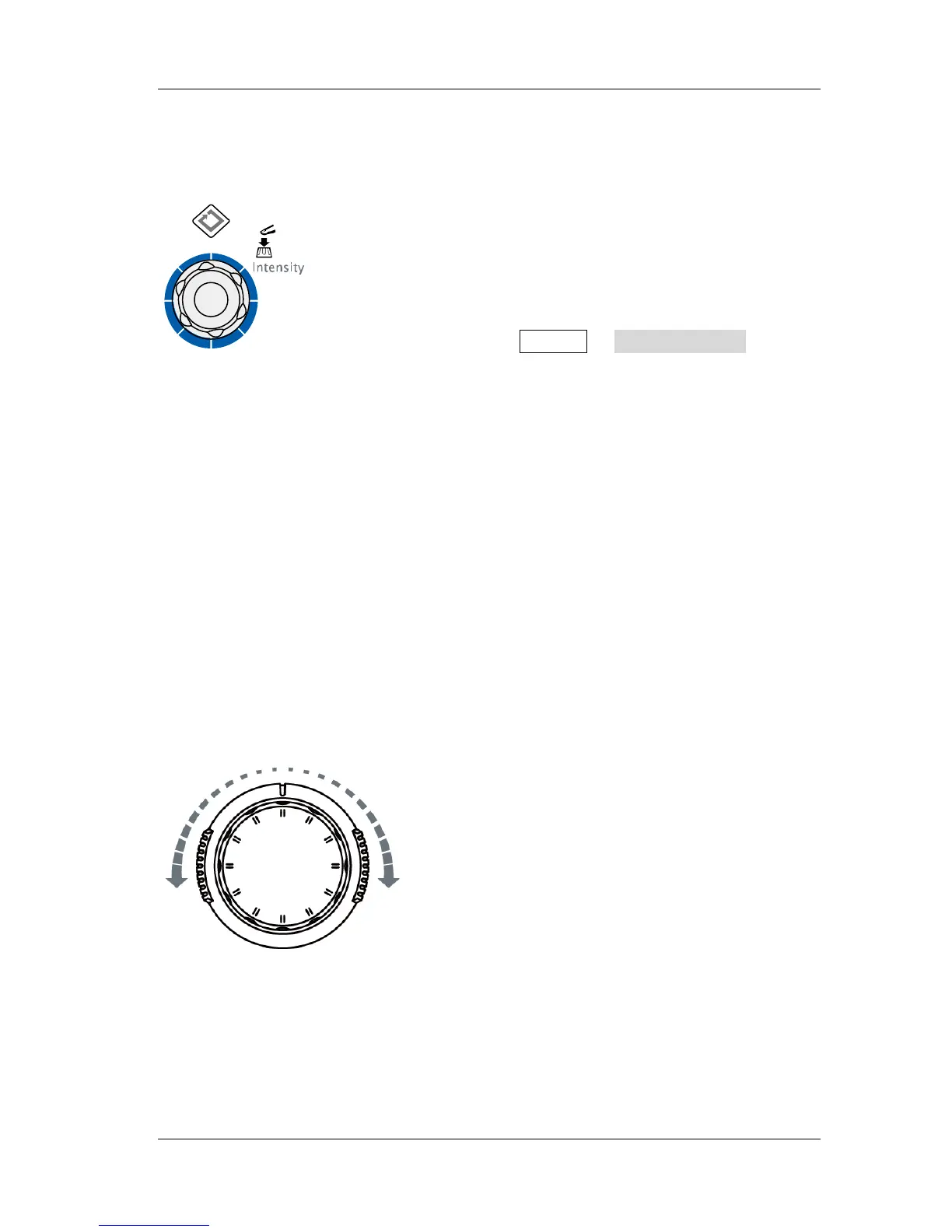

Knob
Adjust waveform brightness:
In non-menu-operation mode (menu is hidden), turn this
knob to adjust the brightness of waveform display. The
adjustable range is from 0% to 100%. Turn clockwise to
increase the brightness and counterclockwise to reduce.
Press down this knob to reset the brightness to 50%.
You can also press Display WaveIntensity and use
the knob to adjust the waveform brightness.
Multifunction (the backlight goes on during operation):
In menu operation, press any menu softkey and turn the knob to select the
submenus under this menu and then press down the knob to select the current
submenu. It can also be used to modify parameters and input filename. In addition,
for MSO2000A-S and DS2000A-S models oscilloscopes, in the source interface,
press the corresponding menu softkey and then press the knob; the numeric
keyboard will pop-up on the screen and you can input the desired parameter value
and unit directly using this knob.
Navigation Knob
This knob provides quick Adjust/Locate function
for numerical parameters with relatively large
settable range. Turn clockwise
(counterclockwise) to increase (reduce) the
value. The inner knob is used for fine adjustment
and the outer knob for coarse adjustment.
For example, this knob can be used to quickly locate the waveform frame (“Current
Frame” menu) to be played back in the waveform playback function. Similar menus
include trigger holdoff, pulse width setting, slope time etc.
