MSO2000A/DS2000A Quick Guide
5
Connect the Logic Probe:
1. Connect the single-wire terminal of the logic probe to the [LOGIC D0-D15]
digital channel interface at the front panel of MSO2000A in the correct direction.
2. Connect the other terminal of the logic probe to the signal under test.
MSO2000A is provided with the RPL2316 logic probe which provides three
connecting methods to connect to the signal under test to fulfill the
requirements of different application environment. For the details, please refer
to the
RPL2316 Logic Probe User’s Guide .

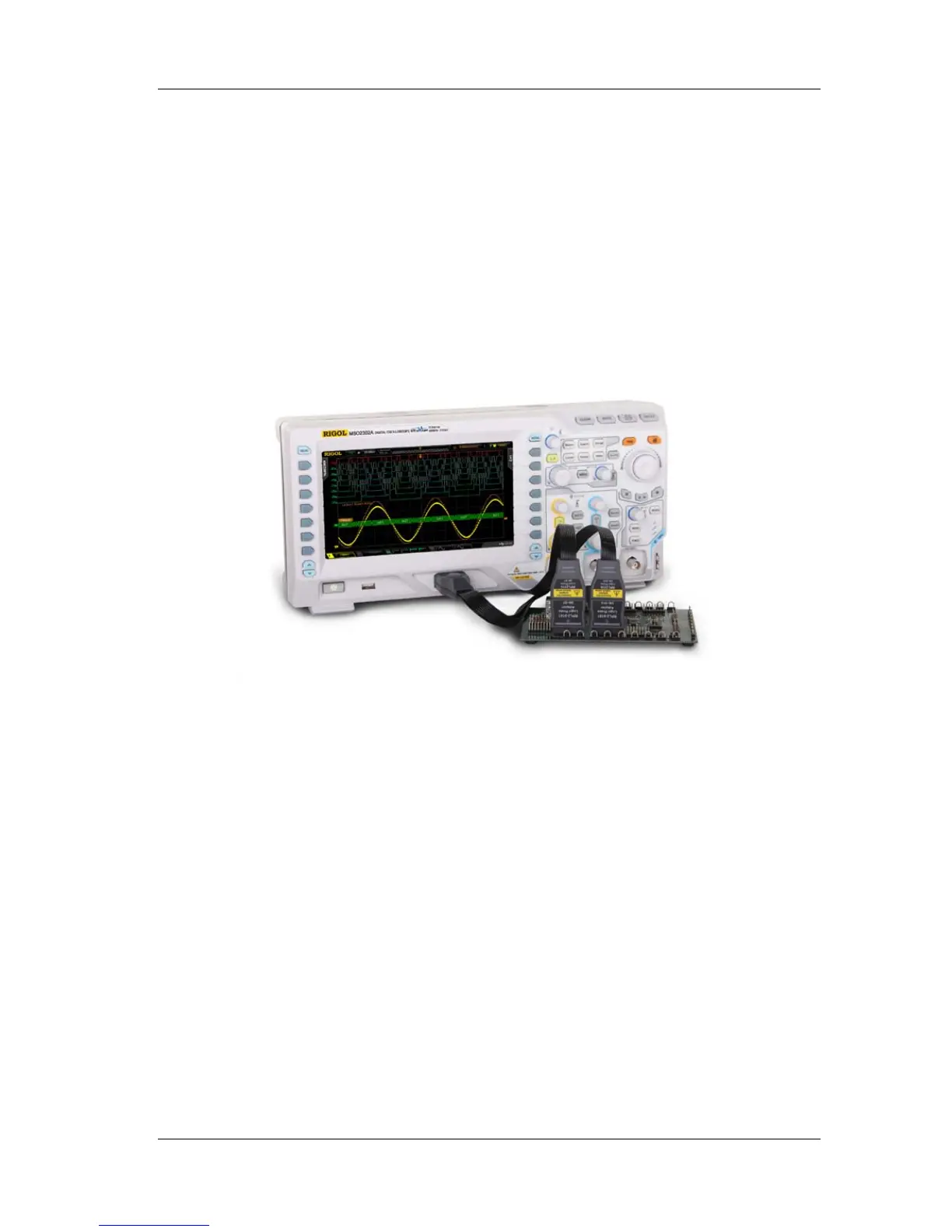

Figure 6 To Connect the Logic Probe
