Disassembly of Panels
CAUTION:
Only work on the stove when the mains plug has been removed from the socket.
During assembly do not drop any items (screws) etc. into the fuel container - they can block the conveyor
auger and damage the stove.
Your stove must be switched off and have cooled down before carrying out any work on it.
Disassembling the Soapstone Casing
1. Open the convection cover (part 55) until the cover securing mechanism (part 56) locks in place.
Please watch your fingers when doing this.
2. Loosen the two hexagon bolts that are used for securing the stone retaining bracket (part 11).

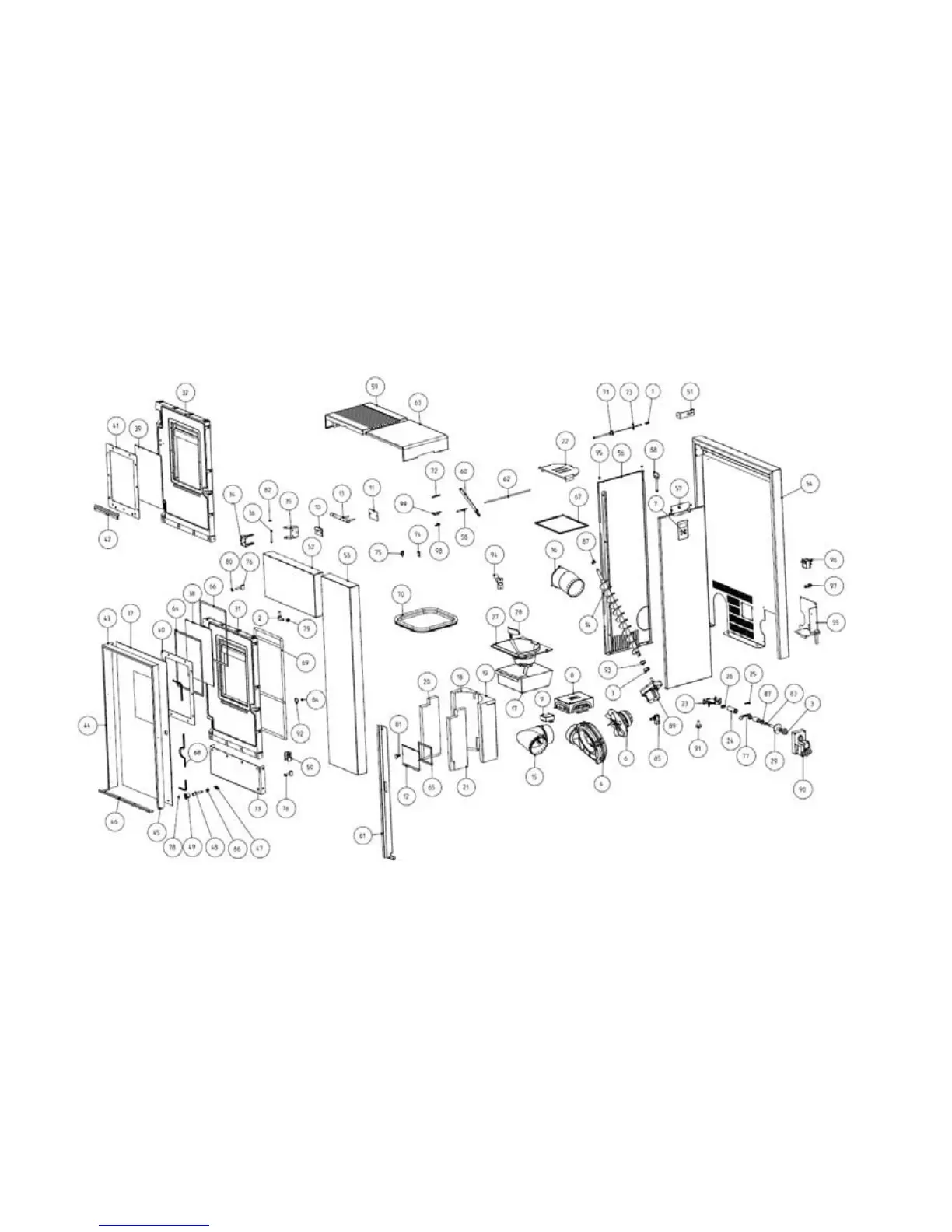

For a larger diagram and description see pages 6 and 7
3. You can now move the stone retaining bracket upwards, raise the upper soapstone casing element (part 47)
and place it on a soft surface.
4. Open the container cover (part 59).
5. Loosen the two hexagon bolts in the container that are used for securing the stone retaining bracket.
6. You can now move the stone retaining bracket upwards, raise the right soapstone casing element (part 48)
and place it on a soft surface.
