Disassembling the Left-hand Side Casing Panel
1. Open the convection cover (part 52, page 6-7) until the cover securing mechanism (part 53, page 6-7) locks
in place. Please watch your fingers when doing this.
2. Remove the 2 vertical hexagon bolts which are used for securing the left-hand side casing panel (part 51,
page 6-7).
3. You can now raise the left-hand side casing panel and place it on a soft surface.
Disassembling the Right-hand Side Casing Panel
1. Open the container cover (part 59, page 6-7).
2. Remove the hexagon bolt that is used for securing the right-hand side casing panel (part 53, page 6-7).
3. You can now raise the right-hand side casing panel and place it on a soft surface.
Operation
Basic Information
The stove must only be started when fully fitted.
Your pellet stove is exclusively for burning pellets made from wood of a controlled quality. Non-pelletised
solid fuels (straw, maize, chopped matter etc.) are not permitted. Failure to adhere to these guidelines will
make all guarantee and warranty claims null and void and could have a negative effect on the safety of
your stove.
When operated correctly your pellet stove cannot overheat. Improper operation can however shorten the
life expectancy of the electric stove components (fan, motors and electric control) and is not permitted.
Control and Internal Control Unit - Function
Your pellet stove is fitted with a modern programmable microprocessor control. The user can preset the individual
stove functions via the internal control unit (keypad with operating display) fitted at the top of the right hand
stove panel. The control (main board) and the control board may only be altered by trained specialist dealers
or the service department. Improper handling of these parts leads to the guarantee and warranty becoming
null and void.

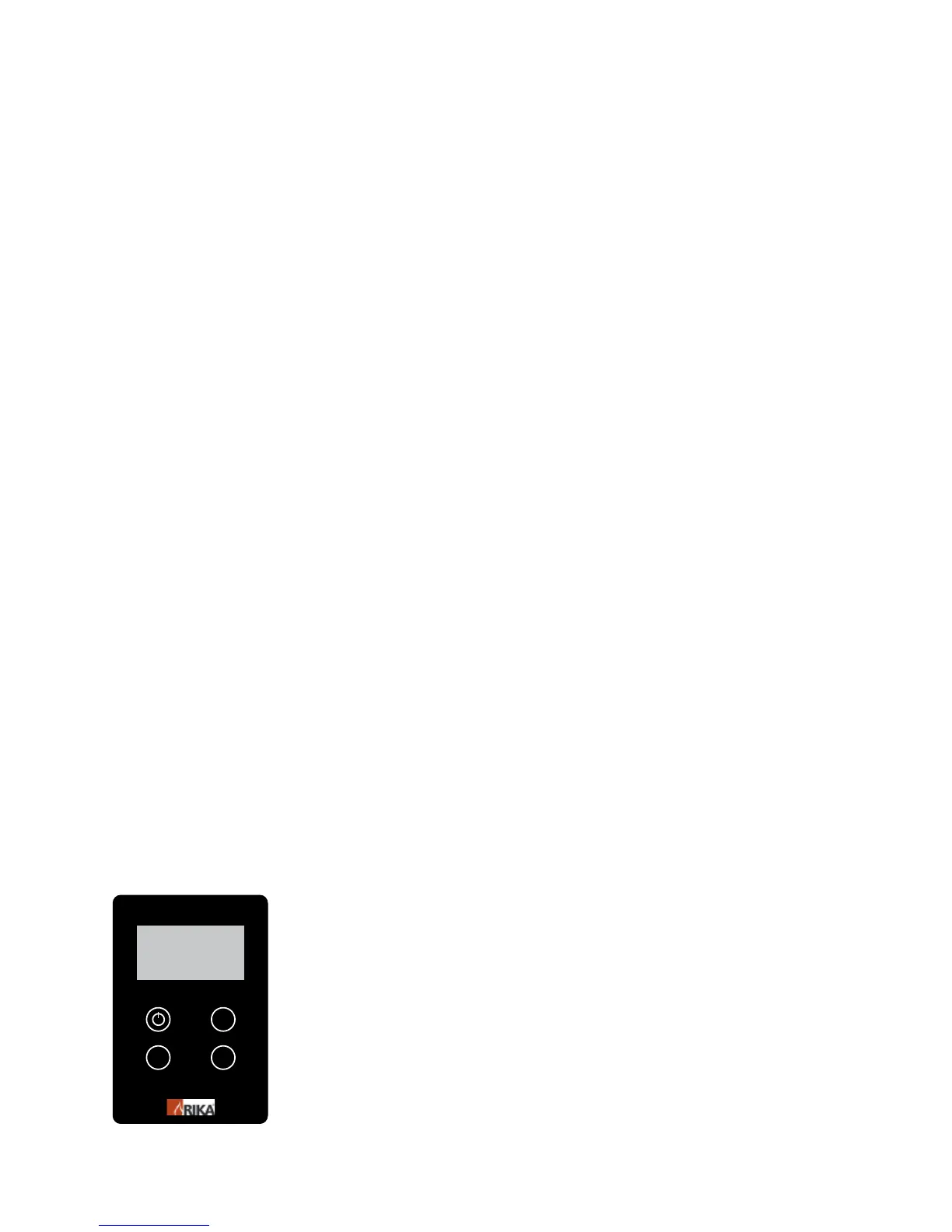

Internal Control Unit
All settings and functions can be regulated via this unit.
The display is illuminated when touched. After some seconds the display lighting turns off again.
