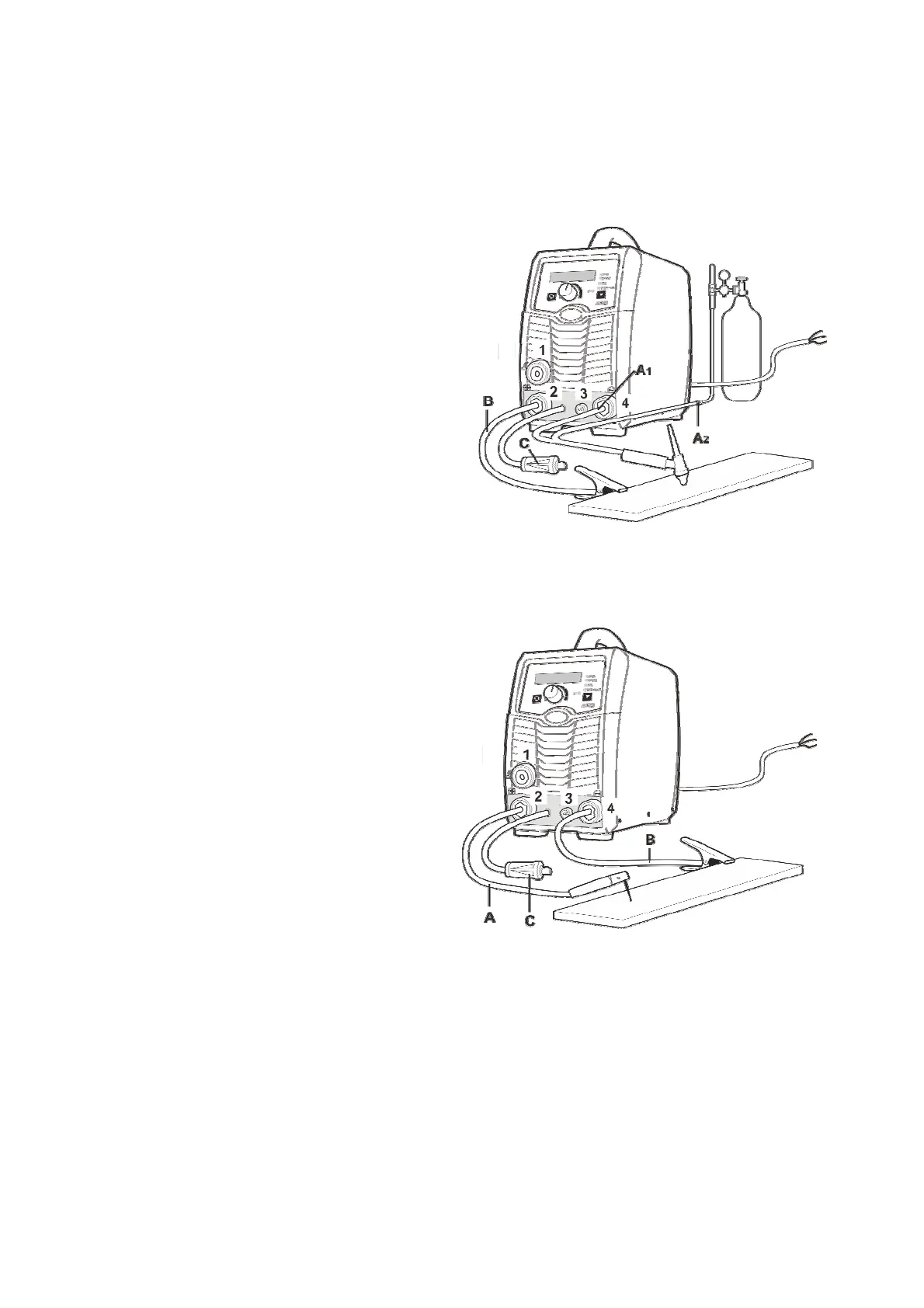

Installation for TIG process
1) Connect the gas cylinder to the regulator. Connect gas hose to the regulator. Connect the TIG gas
hose (A2) to the free end of the gas hose. After disconnecting the gas hose from the back ofthe
machine. Select correct shielding gas for the application.
2) Connect the plug (A1) of the TIG torch t
negative (4) terminal of the front panel, an
fasten it clockwise.
3) Connect work return lead (B) to positiv
terminal (2) on the front panel, and fasten i
clockwise. Connect the clamp end to the
workpiece.
The short mechanical connector (C) shoul
remain hanging free.
Installation for MMA process
1) Connect the electrode holder (A) to the positive terminal (2) of the machine and fasten it clockwise.
2) Connect the work return lead (B)intoth
negative terminal (4)ofthemachinean
fasten it clockwise.
Please note that for manual metal arc (MMA
welding the electrode holder can be switche
to the negative pole of the welding machine i
so required by the specification of th
electrode.
The short mechanical connector (C) shoul
remain hanging free.
This procedure shall be operated by electrician!
Connect proper power cable to the distribution box with corresponding capacity according to the input
voltage and current (see technical parameter table). Do not connect to the inappropriate voltage and
make sure that the difference in power supply is within permitted range.
