Malfunction display：
1） Malfunction display of wire feeder

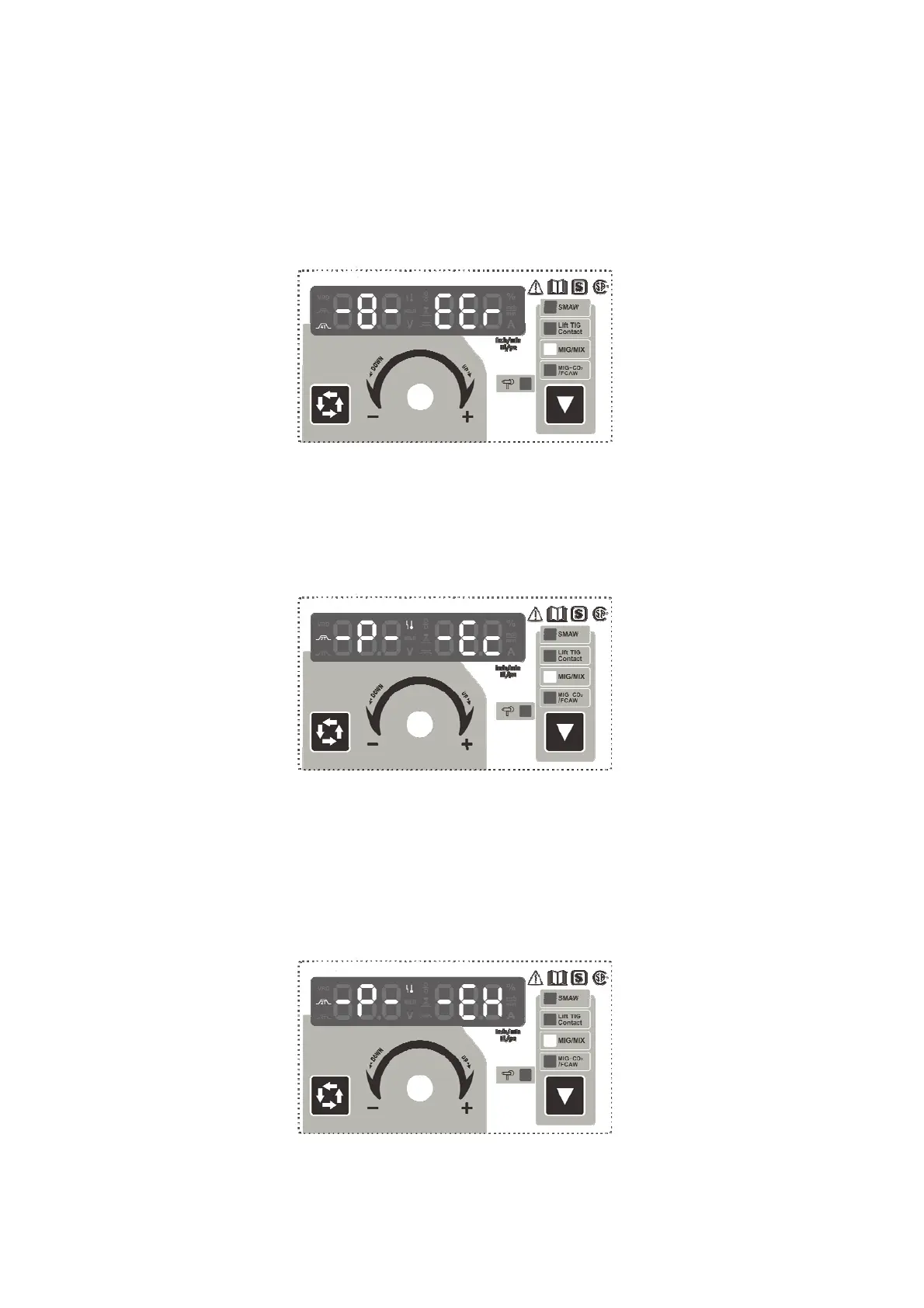

The panel displays as Fig.14 when the wire feeder is malfunctioning, and the Multifunctional
Data Display flashes continuously, the machine can not work normally. Please restart the
machine, the panel would display the parameters that were set before malfunction occurrence.
Fig.14 Malfunction Display of Wire Feeder
2） Malfunction display of over-current
The panel displays as Fig.15 when over-current, and the Multifunctional Data Display flashes
continuously, the machine can not work normally. Restart the machine, the panel would display
the parameters that were set before malfunction occurrence.
Fig.15 Malfunction display of over current
3） Malfunction display of overheating protection
The panel displays as Fig.16 when overheating, and the Multifunctional Data Display flashes
continuously, the machine can not work normally. Only when the temperatureofthewelding
machine falls below 60 ℃, the overheating malfunction would disappear, and the machine work
normally without restarting.
Fig.16 Malfunction display of overheating protection
