Recirculaon with On-Demand Accessories User Guide
14

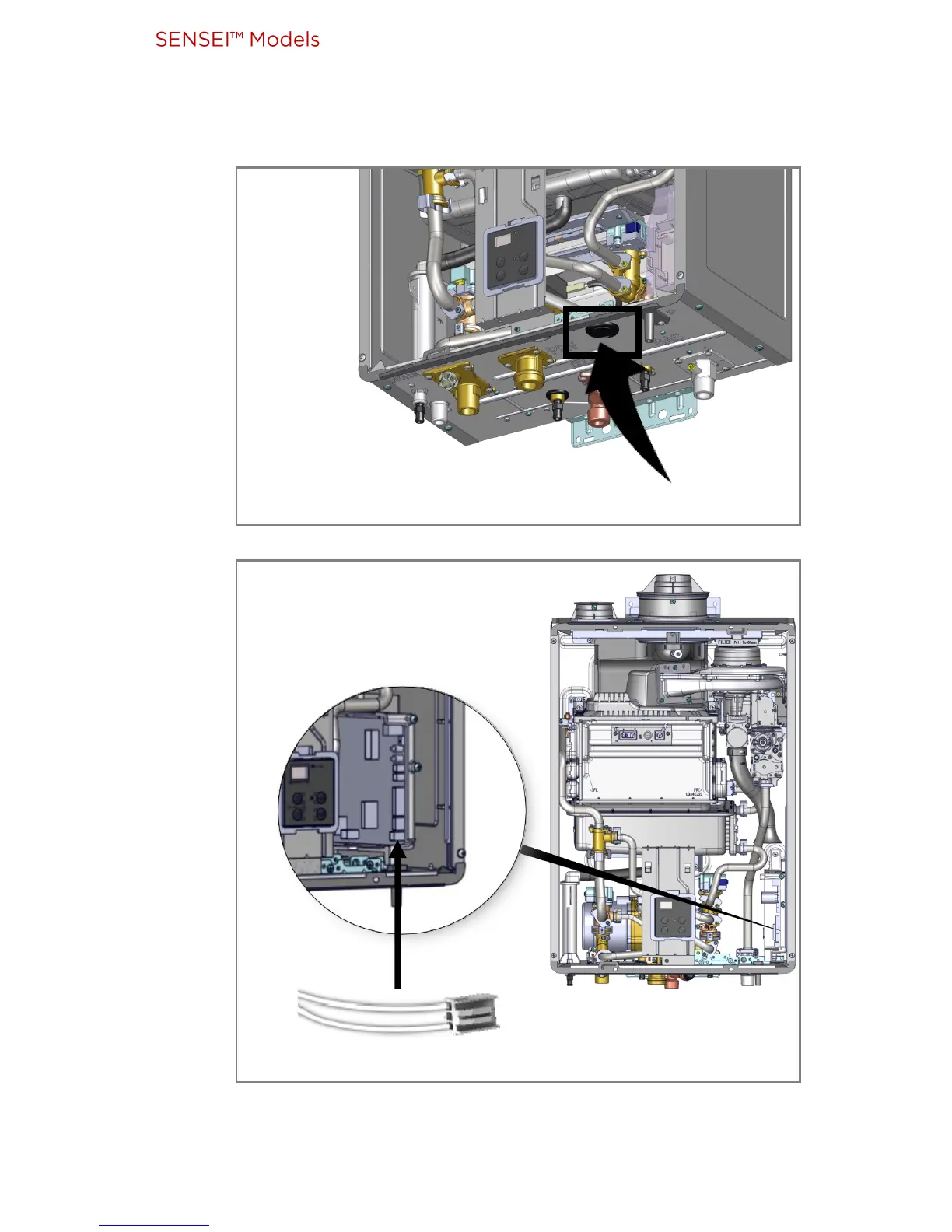

c. Connect controller cable to PC Board through grommet
portal on boom, right side of water heater.
4. Plug water heater power cord into a power outlet.
Connect cable to PC Board
Insert controller cable through grommet portal
